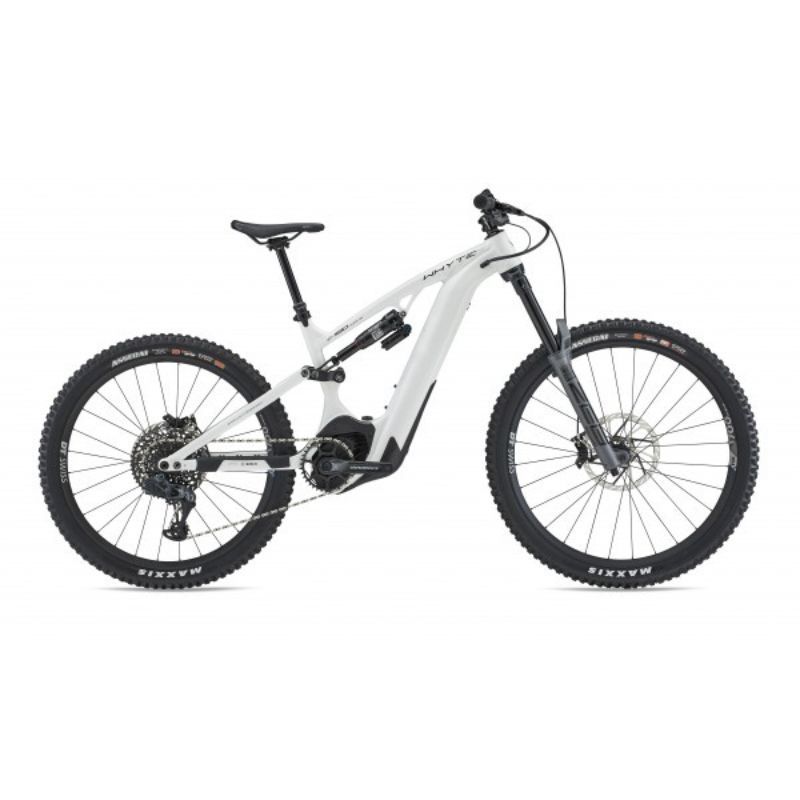

WHYTE E-180 WORKS MX BIKE

The WHYTE E-180 WORKS MX BIKE is the ultimate super enduro made for the fastest riders on the fiercest trails. The bike is powered by Bosch's Performance Line CX Race Limited Edition engine and features a gravity frame with 180 mm front/170 mm rear suspension and MX wheels (29er front, 27.5" rear) to tackle everything on the gas, regardless of difficulty or gradient.
The e-180's all-new gravity frame maximises the benefits of Whyte's unique sloping motor and super-low battery, which brings the bike's centre of gravity as low as possible to give riders ultra-stable, dynamically centred and confident handling on any terrain.
The 'in-tube' battery design makes the frame even more robust, stylish and intelligent as it exceeds the highest safety levels by almost 250% in some areas; vital when competing in longer, tougher and more brutal events than any other in mountain biking.
The Bosch Performance Line CX Race Limited Edition motor delivers more power, faster and longer from a lighter block. So you can accelerate more, maintain top speed better, and even kick-boost on the technical sections you can't pedal, literally leaving the competition high and dry.
The 750Wh battery provides hours of power on the toughest race stages and epic courses, while the new bar-mounted LED remote provides all the connectivity and control you need. We've also teamed up with Bosch to develop our Axial Rail sliding battery technology, which allows you to change the battery mid-race with ease.
The bike rides on a custom-optimised RockShox Zeb Ultimate fork and Super Deluxe shock and turns every mm of travel into extra speed and traction, giving riders the perfect balance of support, grip, confidence and control from the first pedal stroke.
The SRAM XX1 Eagle AXS groupset wirless the fastest and most precise shifting system, as well as being super light. DT Swiss wheels are designed to handle the brutal extra torque and flat-out racing, and the MX 29er/27.5" combo is the fastest Whyte has ever tested.
The Shape.It 'flip-chip' link allows the bike's geometry to be changed quickly and easily without affecting the suspension kinematics by raising or lowering the bottom bracket (BB) height. By using the shock extender and effectively moving the length of the shock from eye to eye, the bottom bracket can be raised or lowered. Moving from the high to the low position can loosen the bike by 0.6 degrees and lower the bottom bracket by 8 mm.

WHYTE E-180 WORKS MX BIKE MAIN FEATURES:

• Front travel 180 mm.
• Rear travel 170 mm.
• Bosch Performance Line CX Limited Edition Race 85Nm motor + 750Wh battery.
• MX wheels: 29 inch front, 27.5 inch rear.
• 6061-T6 aluminium frame with tapered head tube, internal cable routing, Shape.It link and Boost 12x48 mm dropouts.
• Rockshox Zeb Ultimate 29in DebonAir with Charger 2.1 RC2 shock (front) and Whyte custom-tuned RockShox Super Deluxe Ultimate RCT suspension (rear).
• SRAM XX1 Eagle AXS 1x12 wireless electronic drivetrain (36T chainring x 10-50 cassette).
• SRAM Code RSC four-piston hydraulic disc brakes (220mm front rotor; 200mm rear).

THE BIKE IS DELIVERED PRE-ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

• FRAME: 6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Custom Drawn, Tapered Headtube, Internal Cable Routing, Shape.it Link and 12mm X 148mm Boost Dropouts.
• FORK: RockShox ZEB Ultimate 29", 180mm Travel, 44mm Offset, DebonAir, Charger 2.1 RC2 Damper, Fast Black Coating, Tapered Steerer, 110mm x 15mm Boost, Maxle Stealth.
• SHOCK: RockShox Super Deluxe Ultimate RCT, Air, Fast Black Coating, Adjustable Rebound, low speed compression adjustment and tuneable DebonAir.
• REAR HUB: Hope Pro 4, Stainless Steel Bearings, 12mm x 148mm Boost, XD Driver, 32 Hole.
• FRONT HUB: Hope Pro 4, Stainless Steel Bearings, 15mm x 110mm Boost Thru Axle, 32 Hole.
• SPOKES: Black Sapim Race stainless steel double butted spokes built with silver brass nipples.
• RIMS: Hope Fortus 30, Tubless Ready, 32 Hole.
• TIRES: Maxxis Assigai WT, TR, 29" x 2.5" 120TPI, EXO + Sidewall Protection, 3C MaxxGrip, Dual Compound, Folding Bead, Front, Maxxis Assigai WT, TR, 27.5" x 2.5" 120TPI, Double Down Casing, 3C Maxx Grip, Dual Compound, Rear.
• SHIFT LEVER: SRAM AXS Rocker Paddle, MMX, Eagle 12 Speed.
• REAR DERAILLEUR: SRAM XX1 Eagle AXS 12 Speed, with Battery Protector.
• CASSETTE: SRAM XG-1275 Eagle, 10-50, 12 Speed.
• CHAIN: SRAM GX Eagle, 12 Speed.
• CRANKARM: Race Face Affect E-Bike, 165mm, ISIS with X-SYNC Direct Mount 36T for Bosch Performance Line CX, Black.
• SEATPOST: Crank Bro High-Line 3, 30.9mm, M/L 150mm Travel, XL 170mm Travel, High-Line Ball Socket Remote Lever.
• SADDLE: Fizik Terra Aidon, 145mm wide, Wingflex, S-Alloy Mobius rail.
• HANDLEBAR: Race Face Turbine R, 35mm Rise, 35mm Bar Bore, 800mm Wide.
• MANOPOLE: Whyte Lock-on Enduro Grip.
• FRONT BRAKE: SRAM Code RSC, 4 Piston with Sintered Metal Pads, 220mm Disc.
• REAR BRAKE: SRAM Code RSC, 4 Piston with Sintered Metal Pads, 220mm Disc.
• BRAKE LEVER: SRAM Code RSC, MMX.
• MOTOR: Bosch Performance Line CX Race Limited Edition (25km/h) 85Nm.
• BATTERY: Bosch Power Tube PT750 Horizontal.
• DISPLAY: Bosch LED Remote.

*PRO-M STORE OFFERS FREE BIKE PRE-ASSEMBLY SERVICE: SEATPOST, FORK, REAR DERAILLEUR AND BRAKES ARE ALREADY ASSEMBLED
