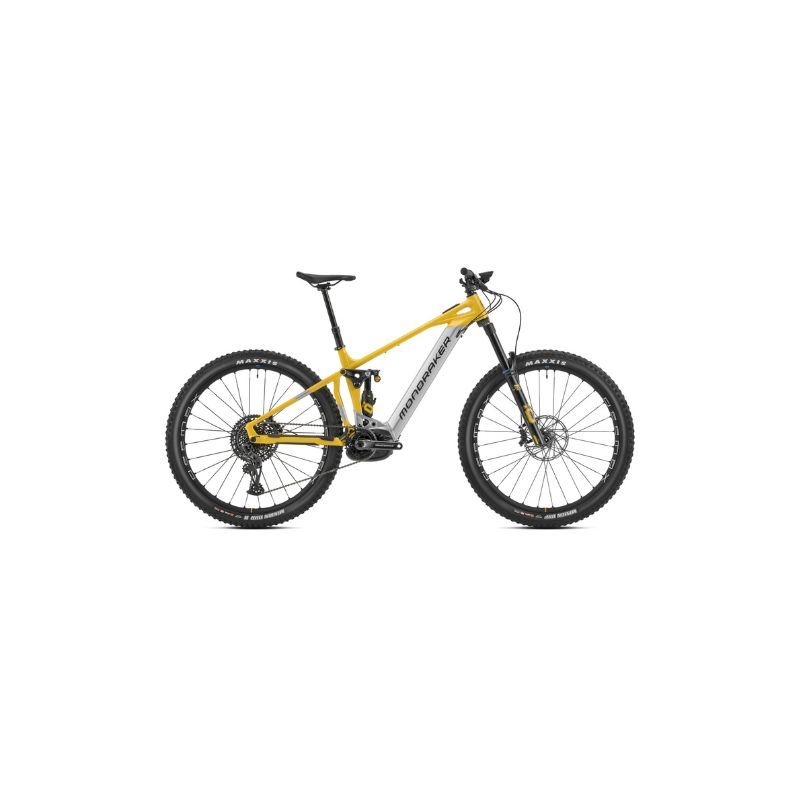

BICI MONDRAKER CRAFTY XR

La MONDRAKER CRAFTY XR è una e-mtb da All Mountain/Enduro con telaio in alluminio, escursione anteriore di 170 mm e posteriore di 160 mm. La bici monta sospensioni Ohlins, motore Bosch Performance Line CX Smart System con comando di assistenza Mini Remote e System Controller.
Sfrutta tutte le migliori tecnologie Mondraker come FORWARD GEOMETRY, ZERO SUSPENSION SYSTEM e STEALTH ALLOY EVO. La bici perfetta se si è alla ricerca di una e-mtb da enduro con il telaio in alluminio e senza limiti poiché con il motore Bosch Smart System, con gli upgrade previsti per il 2023 e la batteria da 750 Wh permettono di percorrere ancora più chilometri.

BICI MONDRAKER CRAFTY XR CARATTERISTICHE PRINCIPALI:

• Ruote da 29".
• Escursione anteriore: 170 mm.
• Escursione posteriore: 160 mm.
• Zero Suspension System.
• Forward Geometry.
• Telaio Stealth Alloy.
• Vosch Smart System.

LA BICI VIENE CONSEGNATA PREASSEMBLATA DA NOI*

SPECIFICHE TECNICHE

• TELAIO: Crafty 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
• TAGLIE: S: 380mm / M: 420mm / L: 450mm / XL: 490mm.
• AMMORTIZZATORE: Öhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 25x10mm bottom bushings.
• REGOLAZIONE AMMORTIZZATORE: C20 compression, R35 rebound. Volume reducers 12.000 (2xF+1D).
• FORCELLA: Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber.
• SERIE STERZO: ONOFF Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º.
• ATTACCO MANUBRIO: ONOFF Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore.
• MANUBRIO: ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore.
• MANOPOLE: ONOFF Desert, 1lock-on, 135mm.
• REGGISELLA: ONOFF Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm.
• SELLA: FIZIK Terra Aidon X5 145mm.
• FRENO ANTERIORE: Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads.
• FRENO POSTERIORE: Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads.
• LEVE FRENO: Sram Code R, tool-free reach adjust.
• CERCHI: Mavic E-Deemax S 29, 30mm internal width, Maxtal welded, PFP, tubeless, 28 spokes.
• RAGGI: Mavic straight-pull double butted, contactless lacing.
• MOZZO ANTERIORE: Mavic, Boost 15x110mm, IS 6 bolts.
• MOZZO POSTERIORE: Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts, XD freehub.
• COPERTONE ANTERIORE: Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead.
• COPERTONE POSTERIORE: Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead.
• GUARNITURA: Race Face Aeffect ebike, 165mm.
• CORONE: Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD.
• CATENA: Sram NX Eagle, 12s, Powerlock.
• DERAGLIATORE POSTERIORE: Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1.
• LEVE CAMBIO: Sram Trigger GX Eagle, 12s, X-Actuation 1:1, single click.
• CASSETTA: Sram XG-1275, 10-52T, 12s.
• FORCELLINO DERAGLIATORE: SRAM UDH.
• PESO: 25 KG.
• DISPLAY: Bosch Kiox 300 / Bosch Mini Remote / Bosch System Controller.
• MOTORE: Bosch Performance Line CX (25km/h) Smart System.
• BATTERIA: Bosch Powertube 750Wh.

*PRO-M STORE OFFRE GRATUITAMENTE IL SERVIZIO DI PRE-ASSEMBLAGGIO DELLA BICI: REGGISELLA, FORCELLA, CAMBIO E FRENI SONO GIÀ MONTATI
