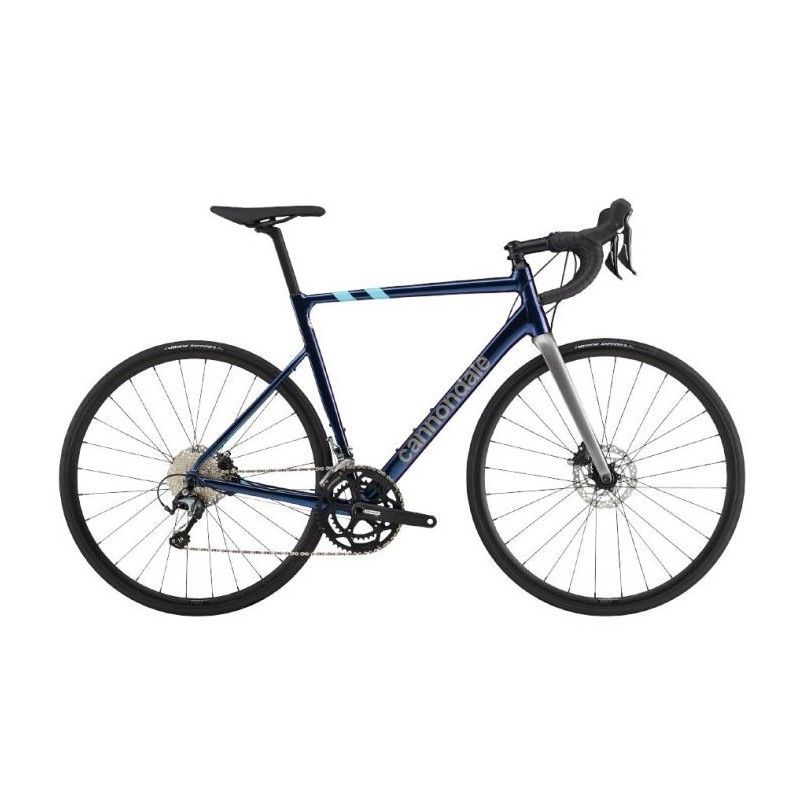

CANNONDALE CAAD13 DISC TIAGRA BIKE

The CANNONDALE CAAD13 DISC TIAGRA is an efficient, manoeuvrable and incredible aluminium racing bike. The shapes of the frame tubes are specially designed to reduce resistance and make the bike light and fast. The low rear suspension configuration and ample space for larger tyres ensure the best possible mix of unbeatable comfort and efficient stiffness in an aluminium racing bike.
The aerodynamic profile of the frame tubes reduces drag by up to 30 per cent while ensuring equal or greater weight and stiffness than round-section tubes.
Thanks to the SAVE rear triangle, integrated seat collar and KNOT 27 seat post, the ride is surprisingly smooth.
The bike can mount tyres up to 30mm for maximum comfort and performance on any road.
The speed-release thru-axles allow quick and easy wheel changes and are compatible with most wheel sets on the market.
Possibility of fitting: a removable bridge, located on the rear axle, allows mudguards to be fitted when necessary.

CANNONDALE CAAD13 DISC TIAGRA BIKE MAIN FEATURES:

• SmartForm C1 Premium ultra-light aluminium frame with all-carbon fork.
• Shimano Tiagra hydro disc groupset.
• HollowGram 27 KNØT seatpost / Prologo Nago RS saddle.

THE BIKE IS DELIVERED PRE-ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

FRAMESET

• FRAME: SmartForm C1 Premium Alloy, 12x142 Speed Release thru-axle, flat-mount disc, integrated cable routing w/ Switchplate, SAVE, BB30a, Di2 ready.
• FORK: CAAD13 Full Carbon, SAVE, 1-1/8" to 1-1/4" steerer, integrated crown race, 12x100mm Speed Release thru-axle, flat mount disc, internal routing, 55mm offset (47-54cm) 45mm offset (56-62cm).
• HEADSET: CAAD13, integrated, 1-1/8" - 1-1/4.

DRIVETRAIN

• SHIFT: Shimano Tiagra GS.
• DERAILLEUR: Shimano Tiagra, braze-on.
• SHIFT LEVER: Shimano Tiagra hydraulic disc, 10-speed.
• CHAIN: KMC X10, 10-speed.
• CRANKSET: Shimano Tiagra, 52/36.
• COGS: Shimano Tiagra, 11-34, 10-speed.
• BOTTOM BRACKET: Cannondale BB30 w/ 24mm adapter.

BRAKES

• FRONT BRAKE: Shimano Tiagra hydraulic disc, 160/160mm RT54 rotors.
• BRAKE LEVER: Shimano Tiagra hydraulic disc.

WHEELS

• RIMS: RD 2.0, 28h.
• SPOKES: Stainless Steel, 14g.
• TIRES: Vittoria Zaffiro Pro Slick, 700x25c.
• TIRE SIZE: 25.
• WHEEL SIZE: 700c.
• HUBS: (F) Formula CL-712, 12x100mm centerlock / (R) Formula RXC-400, 12x142mm centerlock.
• FRONT TIRE: Vittoria Zaffiro Pro Slick, 700x25c.
• REAR TIRE: Vittoria Zaffiro Pro Slick, 700x25c.

COMPONENTS

• HANDLEBAR: Cannondale 4, 6061 Alloy, Compact.
• STEM: Cannondale 4, 6061 Alloy, 31.8, 7°.
• GRIPS: Cannondale Bar Tape, 3.5mm.
• SADDLE: Prologo Nago RS STN.
• SEATPOST: HollowGram 27 KNØT, Alloy, 2 bolt clamp, 330mm.

SIZE CHART

*PRO-M STORE OFFERS FREE BIKE PRE-ASSEMBLY SERVICE: SEATPOST, FORK, REAR DERAILLEUR AND BRAKES ARE ALREADY ASSEMBLED

ITEM NUMBER

C13421U2056 (Sz.56 - Color: Purple Haze)
