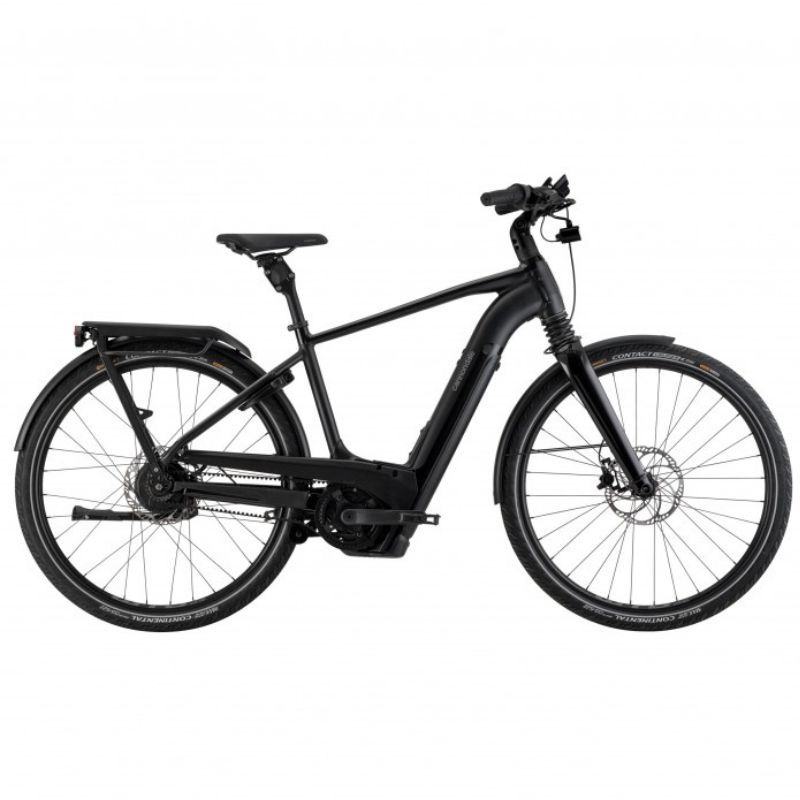

CANNONDALE MAVARO NEO 1 BIKE

The CANNONDALE MAVARO NEO 1 is a perfect bike for moving quickly from one end of town to the other. The bike mounts the powerful Bosch 750wh battery, the drive system provides assistance up to 25km/h, and the range allows you to pedal up to 175km on a single charge.
The Mavaro Neo 1 is equipped with the all-new Bosch Smart System, featuring a very powerful 750wh battery, Performance Line CX motor, and Kiox 300 LED display with remote control. Effortless acceleration, compelling versatility, and a range of up to 175km on a single charge.
The HeadShok fork is perfect for the city as it has a rigid structure that runs on frictionless needle bearings for an unparalleled level of smoothness and riding precision.
The bike mounts Garmin's built-in radar that alerts you when a vehicle approaches from behind, so you can focus only on what's ahead.
The bike is quiet and easy to use and mounts the Gates belt system that requires very little maintenance. The variable transmission allows you to change gears quickly and smoothly, both while pedaling and while standing still.
The Bosch Smart System can be controlled and adjusted via the ebike flow app and is frequently updated for maximum customization.
The battery can be recharged either directly on the bike or can be removed and recharged via the removable cover located under the down tube.The IntelliMount system allows you to easily and securely attach your smartphone to the stem.
Smaller sizes fit 27.5" wheels while larger sizes fit 29" wheels.

CANNONDALE MAVARO NEO 1 BIKE MAIN FEATURES:

• SmartForm C1 aluminum frame / HeadShok fork with 50mm travel.
• Garmin rear-view radar / Enviolo variable transmission hub with Gates carbon belt.
• Bosch Smart System - Bosch Performance Line CX 250 W motor / 750 Wh battery / Kiox 300 color display with remote control / Range: up to 175 km.

THE BIKE IS DELIVERED PRE-ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

FRAMESET

• FRAME: SmartForm C1 Alloy, removable 750Wh downtube battery, integrated front running light, tapered headtube, internal cable routing, 135mm QR hub spacing, IS disc mount, motor protection.
• FORK: Cannondale HeadShok, 50mm travel, Quad Cage needle bearing internals, coil spring, twin chamber semi open-bath oil damping, post mount disc, 110x15mm thru-axle.
• HEADSET: Integrated Sealed Bearing, Tapered, internal cable routing.

E-SYSTEM

• MOTOR: Bosch Performance Line CX 250W.
• BATTERY: Bosch PowerTube, 750Wh.
• CHARGER: Bosch 4A.
• DISPLAY: Bosch Kiox 300 w/ LED remote.

DRIVETRAIN

• SHIFTER: Enviolo Continuously Variable Transmission internal gear hub.
• SHIFT LEVER: Enviolo Trekking stepless controller, twist style.
• CHAIN: Gates CDX high performance carbon drive belt.
• CRANKSET: Gates Bosch E-bike, w/ 46T sprocket.
• COGS: Gates CDX, 22T.

BRAKES

• BRAKE: Magura MT C 2-piston hydraulic disc, MDR-C rotors, 203mm/203mm.
• BRAKE LEVER: Magura MT C hydraulic disc.

WHEELS

• FRONT HUB: Shimano MT400, 15x110mm thru-axle.
• REAR HUB: Enviolo Trekking, continuously variable transmission, wide range internal hub.
• RIMS: WTB STX i30 TCS, 32h, tubeless ready.
• SPOKES: Stainless Steel, 14g.
• TIRE SIZE: 2.1.
• WHEEL SIZE: 27.5/29.
• TIRES: Continental eContact Plus, 29x2.2" 55-622 (M,L,XL), 27.5x2.2" 55-584 (S).
• FRONT TIRE: Continental eContact Plus, 29x2.2" 55-622 (M,L,XL), 27.5x2.2" 55-584 (S).
• REAR TIRE: Continental eContact Plus, 29x2.2" 55-622 (M,L,XL), 27.5x2.2" 55-584 (S).

COMPONENTS

• HANDLEBAR: Cannondale Urban Backsweep.
• STEM: Cannondale Urban Intellimount, adjustable, internal cable routing, SP-Connect compatible phone mount.
• GRIPS: Cannondale Ergo Fitness Dual Density, Lock-on.
• SADDLE: Selle Royal Essenza.
• SEATPOST: Parallelogram Suspension Seatpost, 31.6, 300mm (SM), 350mm (MD), 400mm (LG, XL).

SIZE CHART

*PRO-M STORE OFFERS FREE BIKE PRE-ASSEMBLY SERVICE: SEATPOST, FORK, REAR DERAILLEUR AND BRAKES ARE ALREADY ASSEMBLED
