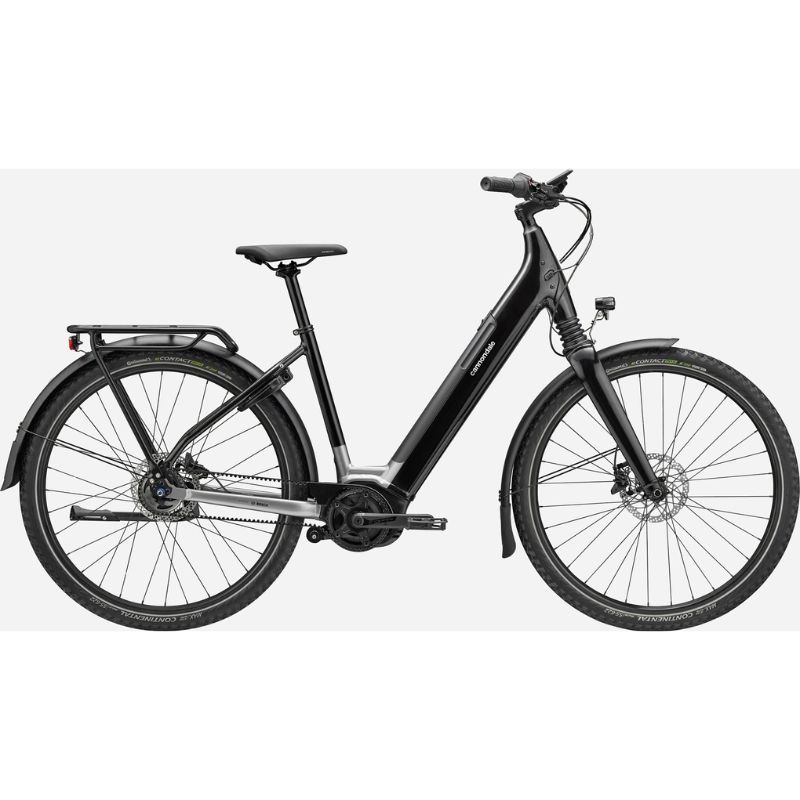

CANNONDALE MAVARO NEO 3 LOW STEPTHRU BIKE

The CANNONDALE MAVARO NEO 3 LOW STEPTHRU is a perfect e-bike to quickly reach any corner of the city. The bike mounts the powerful 625 wh battery, the drive system provides assistance up to 25km/h, and on a single charge you can ride up to 140km.The bike is powered by Bosch's new Performance drive unit, with a 625 Wh battery that increases your power by up to 340%, with an easy-to-read Intuvia display on the handlebars. Effortless acceleration, compelling versatility and a range of up to 140 km on a single charge.
The HeadShok fork has a rigid construction that runs on frictionless needle bearings for an unparalleled level of smoothness and riding precision.
The combination of the Gates belt system with a Shimano internal gearing hub makes it the ideal urban drivetrain. No dirty chains, no noisy derailleurs; simply smooth, easy and reliable shifting every time.

CANNONDALE MAVARO NEO 3 LOW STEPTHRU BIKE MAIN FEATURES:

• Low step-thru aluminum SmartForm C2 frame / HeadShok fork with 50mm travel.
• Gates carbon belt drive with Shimano Nexus 5-speed internal hub gearing.
• Bosch Smart System - Bosch Performance Line 250 W motor/Battery 625 Wh/Autonomy: up to 140 km.

THE BIKE IS DELIVERED PRE-ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

FRAMESET

• FRAME: SmartForm C2 Alloy, low step-thru, removable 625Wh downtube battery, integrated front running light, tapered headtube, internal cable routing, 135mm QR hub spacing, IS disc mount, motor protection.
• FORK: Cannondale HeadShok, 50mm travel, Quad Cage needle bearing internals, coil spring, twin chamber semi open-bath oil damping, post mount disc, 110x15mm thru-axle.
• HEADSET: Semi-Integrated, Tapered; 1-1/8"-1-1/2".

E-SYSTEM

• MOTOR: Bosch Performance Line, Smart System, 25km/h.
• BATTERY: Bosch PowerTube, 625Wh.
• CHARGER: Bosch 4A.
• DISPLAY: Bosch Intuvia w/LED remote.

DRIVETRAIN

• SHIFTER: Shimano Nexus i5e, internal gear hub, 5-speed.
• SHIFT LEVER: Shimano Nexus Revoshift, 5-speed twist shifter.
• CHAIN: Gates Carbon Belt.
• CRANKSET: FSA for Bosch.
• COGS: Gates CDX 34T.

BRAKES

• BRAKES: Shimano MT400 hydraulic disc, 180/180mm RT30 rotors.
• BRAKE LEVER: Shimano MT400 hydraulic disc.

WHEELS

• RIMS: Alloy, double wall, 32 hole, 25mm internal width, disc-specific.
• SPOKES: Stainless Steel, 14g.
• TIRE SIZE: 29x2.2.
• WHEEL SIZE: 27.5/29
• HUBS: (F) Shimano MT400B, 110x15mm thru-axle / (R) Shimano Nexus i5e, 5-speed internal gear hub.
• TIRES: Continental eContact Plus w/ reflective sidewalls 27.5x2.20" 55-584 (SM), 29x2.20" 55-622 (MD-XL).

COMPONENTS

• HANDLEBAR: Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 740mm.
• STEM: Cannondale 3 with Intellimount, Alloy, 31.8mm clamp.
• GRIPS: Cannondale Ergo Fitness Dual Density, Lock-on.
• SADDLE: Fizik Essenza Moderate.
• SEATPOST: Cannondale 3, 6061 Alloy, 31.6.

SIZE CHART

*PRO-M STORE OFFERS FREE BIKE PRE-ASSEMBLY SERVICE: SEATPOST, FORK, REAR DERAILLEUR AND BRAKES ARE ALREADY ASSEMBLED
