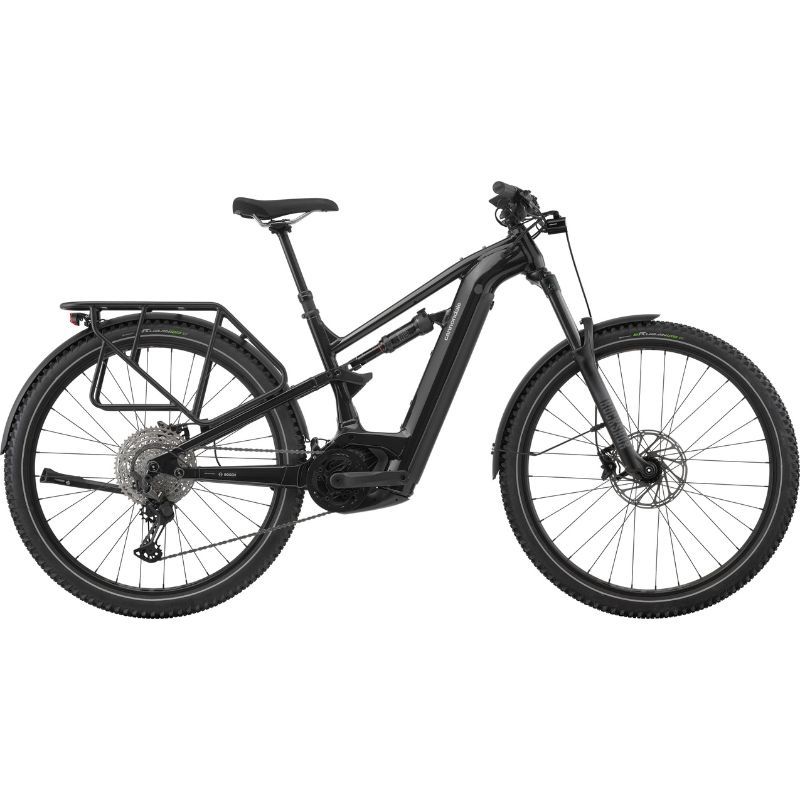

CANNONDALE MOTERRA NEO EQ BIKE

The CANNONDALE MOTERRA NEO EQ is an e-bike perfect for both mountain trails and the city. The bike takes its inspiration from the Moterra Neo but is equipped with everything you need to move easily from one end of town to the other. With a RockShox 150 mm travel fork, robust components and powerful 4-piston disc brakes, this bike is ready to tackle the trails in no time.
The bike mounts the large and powerful Bosch 750wh battery, has a range of up to 175km on a single charge and the drive system provides assistance up to 25km/h. The soft and smooth front and rear suspension and large tyres absorb all bumps from the ground.
The bike has an integrated rear rack (maximum weight supported 15kg), mudguards, lights and kickstand, and the saddle can be lowered/raised at the touch of a lever.
The Moterra Neo Eq is equipped with a Bosch Performance Line CX motor with 85 nm of torque and can increase the power output on the pedals by up to 340% in a completely natural and intuitive way.
Each frame size has its own suspension kinematics, shock linkage and mounting points to ensure specific suspension performance. Improved traction, greater pedalling efficiency and more active suspension under braking for each rider.

CANNONDALE MOTERRA NEO EQ BIKE MAIN FEATURES:

• SmartForm Proportional Response aluminium frame with 130 mm travel.
• RockShox Silver R 150 mm fork.
• Bosch SmartSystem - 750wh battery and Performance CX motor.
• 12v Shimano XT/Deore drivetrain.
• Lights, rack, mudguards, stand.

THE BIKE IS DELIVERED PRE-ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

FRAMESET

• FRAME: Moterra Neo, SmartForm C1 Alloy, 130mm travel, Proportional Response Tuned Suspension, removable downtube battery, injected molded skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH hanger, post mount brake, tapered headtube, 18mm two-bolt kickstand mount, integrated rear rack.
• FORK: RockShox 35 Silver R, 150mm, Coil, 15x110mm thru-axle, tapered steerer, 44mm offset, rack and fender compatible.
• HEADSET: Integrated Sealed Bearing, 1-1/8" - 1.5.
• SHOCK: RockShox Deluxe Select, DebonAir.

E-SYSTEM

• MOTOR: Bosch Performance Line CX.
• BATTERY: Bosch PowerTube, 750Wh.
• BATTERY CHARGER: Bosch 4A.
• DISPLAY: Bosch Kiox 300 w/ LED remote.

DRIVETRAIN

• SHIFTER: Shimano XT.
• SHIFT LEVER: Shimano Deore M6100, 12-speed.
• CHAIN: Shimano Deore 6100, 12-speed.
• CRANKSET: FSA Bosch E-bike w/ custom Ai offset, 160mm, 34T.
• COGS: Shimano Deore M6100, 10-51, 12-speed.

BRAKES

• BRAKES: Shimano MT420 4-piston hydraulic disc, 203/203mm RT66/64 rotors.
• BRAKE LEVER: Shimano MT400 hydraulic disc.

WHEELS

• RIMS: WTB ST i30 TCS, 32h, tubeless ready.
• SPOKES: Stainless Steel, 14g.
• TIRE SIZE: 2.3.
• WHEEL SIZE: 29.
• HUBS: (F) Formula 15x110mm thru-axle / (R) Shimano MT410, 12x148mm thru-axle.
• TIRES: Continental eRuban, 29x2.3".

COMPONENTS

• HANDLEBAR: Cannondale 3 Riser, Alloy, 25mm rise, 8° sweep, 5° rise, 780mm.
• STEM: Cannondale 2, 6061 Alloy, 35mm, 0°.
• GRIPS: Fabric FunGuy.
• SADDLE: Fabric Scoop Shallow Sport, steel rails.
• SEATPOST: Cannondale DownLow Dropper, internal routing, 31.6, 150mm (Cannondale 3, 6061 Alloy, 31.6x350mm on size Small for clearance).

EXTRA: Cannondale E-bike lights by Lezyne - Foresite E350 headlight, Hindsite E25 taillight - kickstand, alloy full coverage fenders, removable Moterra Rack, 15kg max.

SIZE CHART

*PRO-M STORE OFFERS FREE BIKE PRE-ASSEMBLY SERVICE: SEATPOST, FORK, REAR DERAILLEUR AND BRAKES ARE ALREADY ASSEMBLED

ITEM NUMBER

C65311U10 (Color: Black Pearl) / C65311U20 (Color: Agave)
