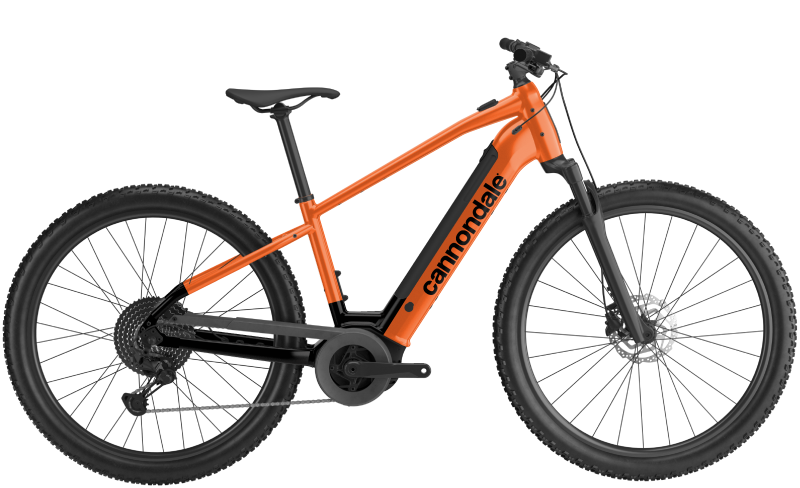

CANNONDALE TRAIL NEO 3 BIKE

Fast, fun, and functional. A hardtail e-mountain bike built to tackle any challenge, on or off the trail.

This robust and fun electric mountain bike is ready to take your trail-riding game to a whole new level. Equipped with a powerful Bosch drive system, a long-lasting battery, and trail-ready components, it’s prepared to conquer hills and carve through canyons. Or outfit it with racks, fenders, and lights to handle your daily commutes. The Trail Neo is ready for anything.

The large 625Wh battery offers all the energy you need to get there and back.

This e-bike drive system provides pedal assistance up to a maximum speed of 25 km/h. Beyond this speed, it’s all you.

Plenty of power to go the distance. Ride longer. Have more fun.

CANNONDALE TRAIL NEO 3 MAIN FEATURES:

• The robust aluminum frame features an integrated front running light and mounts for a kickstand, racks, and fenders.
• Bosch's sporty and versatile Performance Line drive unit delivers up to 65 Nm of torque and 300% support, quietly and naturally.
• The removable 625Wh battery provides huge range for exploration and adventure.
• The durable and reliable Shimano CUES U6000 10-speed drivetrain offers smooth shifting and a wide gear range.
• The Suntour XCM 34 fork has 100mm of travel and large 34mm stanchions for precise handling.

THE BIKE COMES PRE-ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

FRAME KIT

• Frame: SmartForm C2 Alloy, removable 625Wh downtube battery, integrated front running light, tapered headtube, internal cable routing, 135mm QR hub spacing, IS disc mount, motor protection, headtube rack mounts, 40mm Pletscher kickstand mount, rack & fender mounts
• Fork: SR Suntour XCM 34 Boost, 100mm, Coil, 46mm offset.
• Headset: Integrated, 1-1/8 to 1.5", sealed bearings.

E-SYSTEM

• Motor: Bosch Performance Line.
• Battery: Bosch PowerTube, 625Wh.
• Battery Charger: Bosch 4A.
• Display: Bosch Intuvia w/LED remote.

TRANSMISSION

• Rear Derailleur: Shimano CUES U6000.
• Shifters: Shimano CUES U6000, 10-speed.
• Chain: KMC E500.
• Cranks: FSA Bosch Gen3, 170mm, 38T.
• Cassette: Shimano CUES LG400, 11-48, 10-speed.

BRAKES

• Brakes: Shimano MT200 hydraulic disc, 180/180mm RT30/RT-EM300 rotors.
• Brake Levers: Shimano MT200 hydraulic disc.

WHEELS

• Rims: WTB STX i25 TCS, 32h, tubeless ready.
• Spokes: DT Swiss Champion 2.0.
• Tire Size: 2.4.
• Wheel Size: 29.
• Hubs: (F) Shimano MT400, 15x110mm thru-axle / (R) Shimano UR600, 9x135mm QR.
• Tires: Maxxis Ardent, 29x2.4" (M, L, XL) 27.5x2.4" (S), EXO Protection.

COMPONENTS

• Handlebar: Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm, 31.8mm.
• Stem: Cannondale 3, 3D Forged 6061 alloy, 1-1/8", 31.8, 0°.
• Grips: Fabric Funguy.
• Saddle: Cannondale Ergo XC.
• Seatpost: Cannondale 3, 6061 Alloy, 31.6x350mm.
• *PRO-M STORE OFFERS FREE BIKE PRE-ASSEMBLY SERVICE: SEATPOST, FORK, DERAILLEUR, AND BRAKES ARE ALREADY INSTALLED
