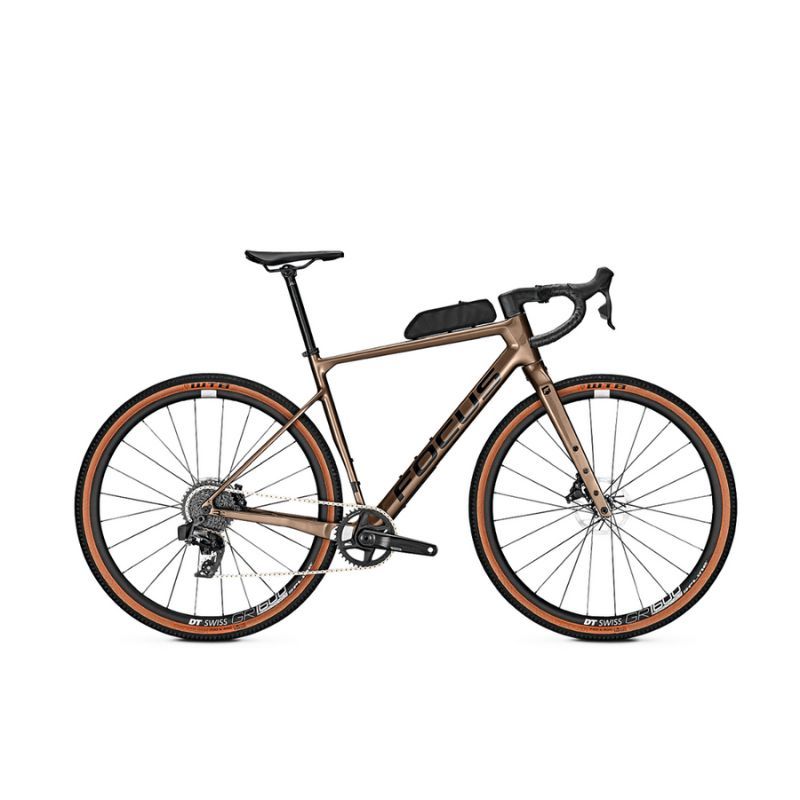

FOCUS ATLAS 8.9 RIVAL AXS BIKE

The FOCUS ATLAS 8.9 RIVAL AXS BIKE features a super-light and rigid carbon frame and fork with fully integrated C.I.S. cable routing and numerous attachment points on the frame. The bike mounts the fully electronic and wireless Sram Rival ETAP AXS XPLR rear derailleur with gravel-specific 1x12 (40/10-44) gear range. The wheels are the durable and ultralight DT Swiss GR1600 Road Boost wheels with sealed double bearings.

FOCUS ATLAS 8.9 RIVAL AXS BIKE MAIN FEATURES:

• Carbon fork and frame.
• Sram Rival ETAP AXS XPLR rear derailleur.
• 1x12 (40/10-44) ratio range specifically for gravel.
• Durable and ultralight DT Swiss GR1600 Road Boost wheels.

TECHNICAL SPECIFICATIONS

• Fork: Carbon, disc, through-bolt 110x12 mm, 160/160 mm flat stem, internal brake cable routing, multiple mounting points.
• Frame: Carbon, disc, C.I.S. integration, BB86 press-in, through-bolt 148x12 mm, 160/160 mm flat mount, internal cable routing
• Knobs: FOCUS Bartape SL.
• Handlebar: Easton EC70 AX, carbon, 31.8 mm, drop: 125 mm, reach: 80 mm, flair: 16°.
• Handlebar width (in mm): 440.
• Number of gears: 12.
• Saddle: fi'zi:k Taiga
• Seatpost: Easton EC70, carbon, 27.2 mm, reach: 0 mm.
• Sprocket: SRAM XG-1251, 12 speeds.
• Stem: FOCUS C.I.S. integrated, 31.8 mm, aluminum.
• Length of stem (in mm): 90 mm.
• Tires: WTB Riddler, 700 x 45C, folding.
• Gearbox: front: 40, rear: 10-44.
• Weight (including battery; in kg): 8.7 kg.
• Wheel size (in inches): 28".
• Bottom bracket: SRAM PF DUB 86.
• Brake lever: SRAM Rival AXS.
• Braking system: SRAM Rival eTap AXS.
• Chain: SRAM Rival AXS, 12-speed.
• Crankset: SRAM Rival AXS wide, 12-speed.

ITEM NUMBER

644012503
