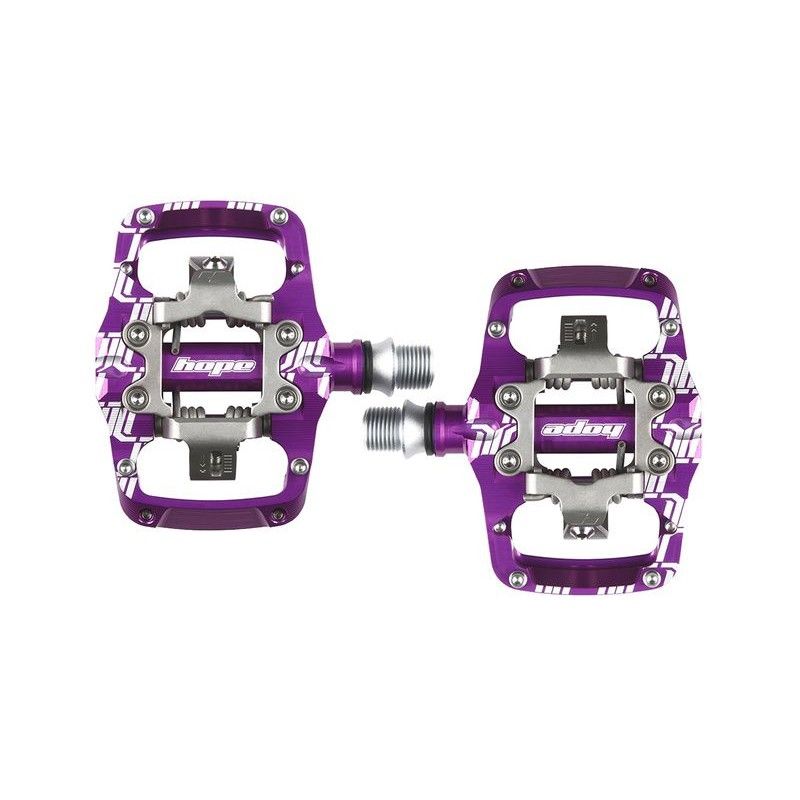

HOPE UNION TC TRAIL PEDALS

HOPE UNION TC TRAIL PEDALS are designed for cross-country and have a double mechanism that allows easy pedal entry, secure cleat grip and a positive, consistent release.
The dual clip mechanism means that the front clip moves at pedal entry, reduces the effort required to engage the pedal, flattens the entry angle of the shoe and gives a wider cleat entry angle, allowing the front of the shoe sole to move closer to the body of the pedal for increased stability. Cleat release is guided by fixed pins for easier and smoother release.
The mechanism fitted by Hope uses a specific cleat that is not compatible with all other systems.
The pedals are sold with 2 cleat options: the number 4 cleat offers 4° of float and has a release angle of 12° while the number 4 cleat offers 5° of float and has a release angle of 13° and has a higher release effort for aggressive riding. Both cleats also allow 2mm of lateral float (side to side).
The pedal body is CNC machined from billet and is designed to maximize the contact between the shoe/ cleat and pedal body for increased stability and power transfer.
The platform of these pedals is larger and has 4 pins per side for increased contact with the shoe sole, greater stability and an even more aggressive ride.

HOPE UNION TC TRAIL PEDALS MAIN FEATURES:

• Double mechanism designed for easy pedal entry, secure cleat hold and positive, consistent release.
• Double side.
• Titanium axle.
• CNC machined pedal body.
• Stainless steel clips and cleats.
• Comes with two cleat options.
• Pedals run on three cartridge bearings and a maintenance-free IGUS bushing for smooth long-term durability.
• Fully serviceable and rebuildable.
• Q-factor - 55mm.
• Large shoe/pedal contact area for maximum power transfer and stability.
• Replaceable pins for increased grip on Union TC (8 pins).
• The axle is made of high-strength Cr-Mo, heat-treated and plated.
