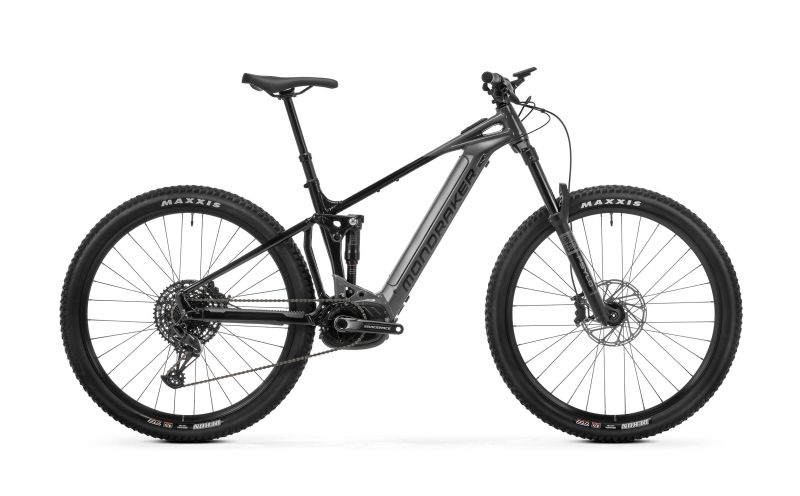

MONDRAKER CHASER 2025 BIKE

CHASER: MUCH MORE THAN YOU IMAGINE
Much more, because the Stealth aluminum alloy frame houses an integrated 750Wh battery and the latest version of what is perhaps the most important motor on the market today: the Bosch CX. Much more, because the Zero Suspension System offers 150mm of travel (with a 160mm fork). Much more, because you have three models to choose from, along with the brand new ONOFF components and Forward Geometry. The Chaser is our best and most accessible full suspension eMTB for anyone looking to enter the world of e-bikes.

MONDRAKER CHASER 2025 MAIN FEATURES:

• Sram SX Eagle 12-speed.
• Bosch GEN4 CX Smart.
• 625Wh e-Bike.

THE BIKE IS DELIVERED PRE-ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

• Frame: Chaser 6061 Alloy Stealth Evo, Zero Suspension System optimized for e-Bike, 150mm travel, Forward Geometry, removable internal battery, Boost 12x148mm rear axle, tapered head tube, monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversized 17mm axles, dropout integrated speed sensor, exclusive plastic motor covers, cushioned mudguard
• Sizes: S: 380mm / M: 420mm / L: 450mm / XL: 490mm
• Shock Absorber: RockShox Deluxe Select R Debonair, 205x65mm. Settings: low-speed rebound, air preload. Trunnion upper mount, lower bushings 25x10mm
• Shock Adjustment: Light compression, linear rebound, 1 Token
• Fork: RockShox Psylo Silver 29, 160mm, Motion Control damper, Solo Air, tapered steerer tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: low-speed compression adjustment to lock, rebound, air preload
• Headset: ONOFF ZS44/ZS56, 1-1/8", 1.5" tapered steerer tube, sealed ACB bearings, upper 42x30x7x45°x45°, lower 52x40x8x45°x45°
• Stem: ONOFF S3 30mm 0°, forged 6061 alloy, 31.8mm barbore
• Handlebar: ONOFF S3 1.0 alloy 6061, rise: 25mm, width: 800mm, backsweep 8°, upsweep 5°, barbore 31.8mm. Sizes L and XL: 1.5 rise.
• Grips: ONOFF Beehive, 1lock-on, 135mm
• Seatpost: ONOFF Pija internal dropper, 31.6mm diameter, remote 1X lever with bearing, Size S: 140-115mm (388-235mm), Size M: 160-135mm (428-255mm), Size L: 180-155mm (468-275mm), Size XL: 210-185mm (528-305mm)
• Saddle: E-bike MDK black
• Front Brake: Sram DB8, 4-piston caliper, Centerline 200mm one-piece rotor with 6 IS bolts, organic pads with steel backing
• Rear Brake: Sram DB8, 4-piston caliper, Centerline 200mm one-piece rotor with 6 IS bolts, organic pads with steel backing
• Brake Levers: Sram DB8, tool reach adjustment, lever pivot bushings
• Rims: Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
• Spokes: Mavic J-bend double butted, contactless lacing
• Front Hub: Mavic, Boost 15x110mm, 6 IS bolts
• Rear Hub: Mavic, Boost 12x148mm, ID360 ratchet system, 6 IS bolts, XD freehub
• Front Tire: Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, foldable bead
• Rear Tire: Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, foldable bead
• Crankset: E-bike Race Face Aeffect-R, 160mm
• Chainring: Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
• Chain: Sram SX Eagle, 12-speed, Powerlock
• Rear Derailleur: Sram SX Eagle, 12-speed
• Shifter: Sram SX Eagle, 12-speed, X-Actuation 1:1, single click
• Cassette: Sram PG-1210, 11-50T, 12-speed
• Dropout: Sram UDH
• Weight without pedals: 25.3 kg
• Display: Bosch Intuvia 100 / Bosch Mini Remote / Bosch System Controller
• Motor: New Bosch Performance Line CX Cruise (25Km/h) SMART SYSTEM (BDU 384Y)
• Battery: Bosch Powertube 625Wh

*PRO-M STORE OFFERS FREE PRE-ASSEMBLY SERVICE: SEATPOST, FORK, DERAILLEUR, AND BRAKES ARE ALREADY MOUNTED
