And back to off-road, no matter what's under your wheels. No worries about the distance to cover in the city or the height to climb in the countryside over the weekend. The Chaser X comes complete with mudguards, lights, and a luggage rack. The 150 mm suspension combined with a 160 mm fork, along with the Zero Suspension System and a list of components more than capable of handling some off-road risks and keeping everything under control on the road, triple the versatility, just like your plans and your fun. Available with 625Wh or 750Wh batteries and in two different colors for the Chaser X.

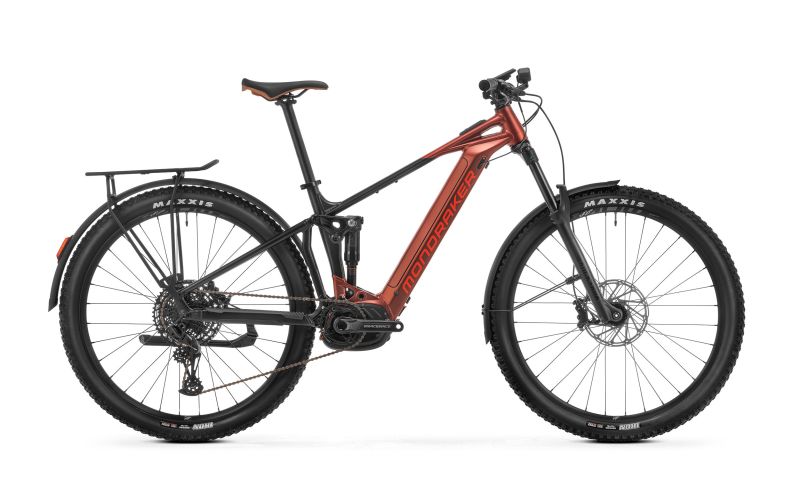

MONDRAKER CHASER X BIKE 2025 KEY FEATURES:
- Sram SX Eagle 12-speed.
- Bosch GEN4 CX Smart.
- 625Wh battery.
THE BIKE COMES PRE-ASSEMBLED BY US*
TECHNICAL SPECIFICATIONS
- Frame: Chaser 6061 Alloy Stealth Evo, Zero Suspension System optimized for e-Bike, 140 mm travel, Forward Geometry, removable internal battery, Boost 12x148 mm rear axle, tapered head tube, monoblock upper link, internal cable routing HHG, MAX capacity sealed bearings, oversized 17 mm axles, dropout-integrated speed sensor, exclusive plastic motor covers, shock-absorbing mudguard.
- Sizes: S: 380 mm / M: 420 mm / L: 450 mm / XL: 490 mm
- Shock: RockShox Deluxe Select R DebonAir, 205x60 mm. Settings: low-speed rebound, air preload. Upper Trunnion mount, lower bushings 25x10 mm.
- Shock Adjustments: DebonAir Progressive, light compression, linear rebound, 1 Token.
- Fork: RockShox Recon Silver RL 29, 150 mm, Solo Air, tapered steerer, Boost 15x110 mm axle, 35 mm steel upper tubes, 44 mm offset. Settings: low-speed compression to lock, rebound, air preload.
- Headset: ONOFF ZS44/ZS56, 1-1/8" - 1.5" tapered steerer, ACB sealed bearings, top 42x30x7x45°x45°, bottom 52x40x8x45°x45°.
- Stem: ONOFF S3 30 mm 0°, forged 6061 alloy, 31.8 mm barbore.
- Handlebar: ONOFF S3 1.0 alloy 6061, rise: 25 mm, width: 800 mm, backsweep 8°, upsweep 5°, barbore 31.8 mm. Size L and XL: rise 1.5.
- Grips: ONOFF Beehive, 1lock-on, 135 mm.
- Seatpost: ONOFF S3 0-R, diameter 31.6mm, length 400mm.
- Saddle: MDK urban.
- Front Brake: Sram DB8, 4-piston caliper, 200 mm Centerline one-piece brake rotor, 6-bolt IS, organic pads with steel backing.
- Rear Brake: Sram DB8, 4-piston caliper, 200 mm Centerline one-piece brake rotor, 6-bolt IS, organic pads with steel backing.
- Brake Levers: Sram DB8, reach adjustment with tools, lever pivot bushings.
- Rims: MDK-HP1 29, 30 mm internal width, tubeless ready, 32 spokes.
- Spokes: Stainless steel, round.
- Front Hub: Formula DC711, Boost 15x110 mm, sealed bearings, 6-bolt IS.
- Rear Hub: Formula EHL148 Boost 12x148 mm, sealed bearings, 6-bolt IS.
- Front Tire: Maxxis Ikon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead.
- Rear Tire: Maxxis Ikon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead.
- Crankset: E-bike Race Face Aeffect, 165 mm.
- Chainring: Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD.
- Pedals: Urban Pedal Resin Black.
- Chain: Sram SX Eagle, 12-speed, Powerlock.
- Rear Derailleur: Sram SX Eagle, 12-speed.
- Shifter: Sram SX Eagle, 12-speed, X-Actuation 1:1, single-click.
- Cassette: Sram PG-1210, 11-50T, 12-speed.
- Derailleur Hanger: Sram UDH.
- Lights: Front: 150LUX output, CC 6-12V, waterproof alloy casing. Rear: fender-mounted with reflector, e-bike version, 6-12V.
- Mudguards: Custom MDK black alloy.
- Luggage Rack: MDK alloy rear rack, max load 25 kg.
- Kickstand: KSA18-40 mass load.
- Weight without pedals: 23.6 kg.
- Display: Bosch Intuvia 100 / Bosch Mini Remote / Bosch System Controller.
- Motor: New Bosch Performance Line CX Cruise (25Km/h) SMART SYSTEM (BDU 384Y).
- Battery: Bosch Powertube 625Wh.
*PRO-M STORE OFFERS FREE BIKE PRE-ASSEMBLY SERVICE: SEATPOST, FORK, DERAILLEUR, AND BRAKES ARE ALREADY INSTALLED
