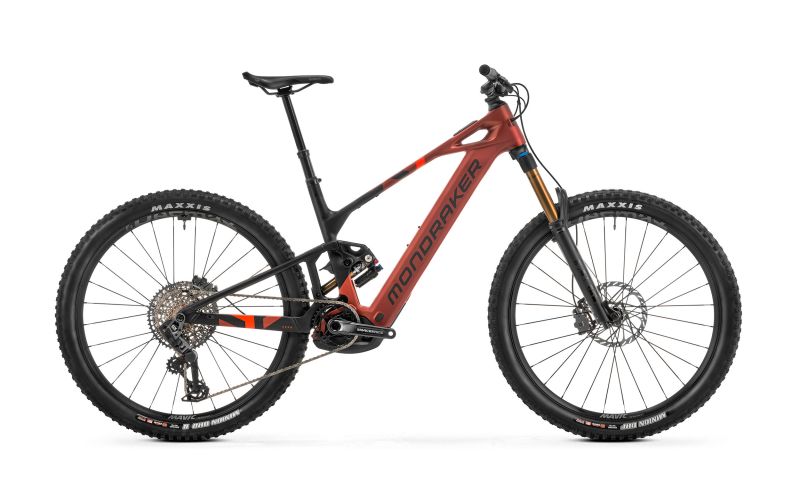

MONDRAKER CRAFTY CARBON RR BIKE

The Crafty Carbon RR sets the bar higher with its components, being the first in the range to offer the SRAM GX AXS wireless transmission and Fox front and rear suspension with the renowned Kashima coating. It also features powerful SRAM Maven brakes and the new Bosch 800Wh battery. The RR showcases a stunning Earth Red / Black / Flame Red livery. For handlebars, stems, and Pija dropper posts of different lengths depending on the size, ONOFF provides the perfect solutions.

MONDRAKER CRAFTY CARBON RR KEY FEATURES:

• 29-inch wheels.
• Zero suspension system.
• Forward geometry.
• Stealth carbon frame.
• Bosch smart system.

THE BIKE IS DELIVERED PRE-ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS:

• Frame: Front triangle Crafty Stealth Air full Carbon, rear triangle Alloy Stealth, optimized Zero Suspension System, 150 mm travel, Forward Geometry, removable internal battery, Boost 12x148 mm rear axle, tapered head tube, one-piece upper link, internal HHG cable routing, MAX load capacity sealed bearings, oversized 15 mm axles, exclusive plastic motor covers.
• Motor: Bosch Drive Unit Performance Line CX, Smart System
• Display: Purion 400 / Bosch Mini Remote / Bosch System Controller
• Battery: Bosch PowerTube 800Wh
• Charger: Bosch
• Fork: Fox 38 29 Float GRIPX2 Factory Kashima, 160 mm, tapered head tube, Boost 15x110 mm axle, 44 mm offset. Settings: high- and low-speed compression, high- and low-speed rebound, air preload
• Shock: Fox Float X Factory Kashima EVOL, 185x55 mm. Settings: 2-position compression (Open/Locked), rebound, air preload. Trunnion upper mount, lower bushings 30x8 mm
• Drivetrain: Sram GX Eagle AXS, T-Type, 12-speed
• Front Derailleur: N/A
• Shifter: Sram Eagle AXS Pod MMX, 12-speed
• Cassette: Sram XS-1275, 10-52T, T-Type, 12-speed
• Chain: Sram GX Eagle T-Type, 12-speed, Powerlock
• Chainring: Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55
• Crankset: E-bike Race Face Aeffect-R, 160 mm
• Front Brake: Sram Maven Bronze, 4-piston caliper (18 and 19.5 mm), 200 mm Centerline one-piece rotor with 6-bolt IS, sintered metal pads with steel backing
• Rear Brake: Sram Maven Bronze, 4-piston caliper (18 and 19.5 mm), 200 mm Centerline one-piece rotor with 6-bolt IS, sintered metal pads with steel backing
• Rotors: N/A
• Front Tire: Maxxis Minion DHF 29x2.6 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120 TPI, folding bead
• Rear Tire: Maxxis Minion DHR II 29x2.6 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120 TPI, folding bead
• Rims: Mavic E-Deemax 29, 30 mm internal width, welded, PFP, tubeless ready, 28 spokes
• Front Hub: Mavic, Boost 15x110 mm, 6-bolt IS
• Rear Hub: Mavic, Boost 12x148 mm, Ratched ID360 system, 6-bolt IS, XD freehub
• Handlebar: ONOFF S6 1.0 alloy 7050, rise: 25 mm, width: 800 mm, backsweep 8º, upsweep 5º, barbore 31.8 mm. Size L and XL: rise 1.5
• Stem: ONOFF S6 30 mm 0º, forged alloy 6061 + CNC, barbore 31.8 mm
• Saddle: Ergon SM-10
• Seatpost: ONOFF Pija internal dropper, diameter 31.6 mm, 1X remote lever with bearing. Size S: 140-115 mm (388-235 mm), size M: 160-135 mm (428-255 mm), size L: 180-155 mm (468-275 mm), size XL: 210-185 mm (528-305 mm)
• Maximum Permitted Weight: N/A
• Weight: N/A

*PRO-M STORE OFFERS A FREE PRE-ASSEMBLY SERVICE: SEATPOST, FORK, DERAILLEUR, AND BRAKES ARE ALREADY INSTALLED
