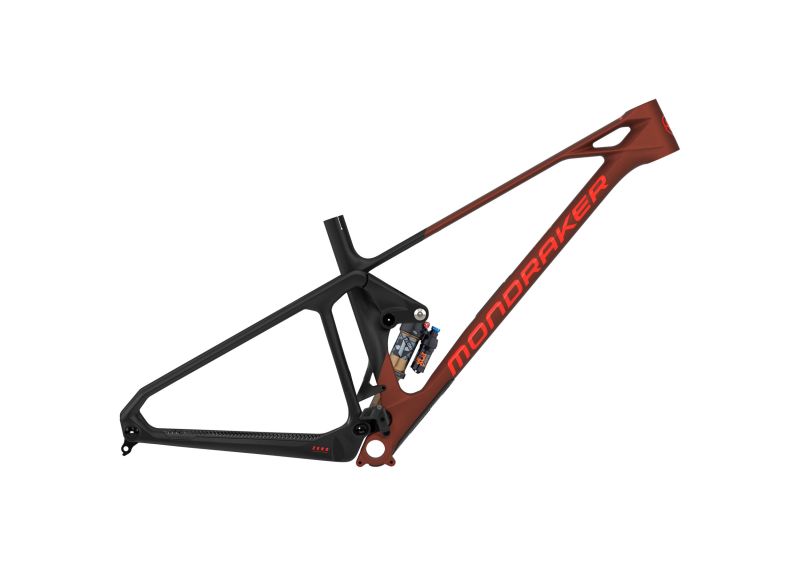

MONDRAKER FOXY CARBON RR FRAME

Mondraker 29 frame in Stealth Carbon with Zero Suspension System and Forward Geometry.

TECHNICAL SPECIFICATIONS

• Frame: Foxy 29 Stealth Air full Carbon, Zero Suspension System, 150 mm travel, Forward Geometry, one-piece carbon upper link, Boost 12x148 mm rear axle, tapered head tube, BSA 73 mm bottom bracket, dedicated 1x drivetrain design, internal HHG cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors.
• Sizes: S: 375 mm / M: 415 mm / L: 445 mm / XL: 500 mm.
• Shock: Fox Float-X LV Factory Kashima, 205x65 mm. Settings: 2-position compression (Open/Locked), rebound, air preload. Upper Trunnion mount, lower bushings 30x8 mm.
• Shock Tuning: Light compression, light rebound, air volume spacer 0.6.
• Headset: Acros custom IS52/ZS56, 1-1/8", 1.5" tapered head tube, internal cable routing, seal caps without blocklock.
• Stem: ONOFF S6 30 mm 0º, forged 6061 alloy + CNC, 31.8 mm bar bore.
• Derailleur Hanger: SRAM UDH.
