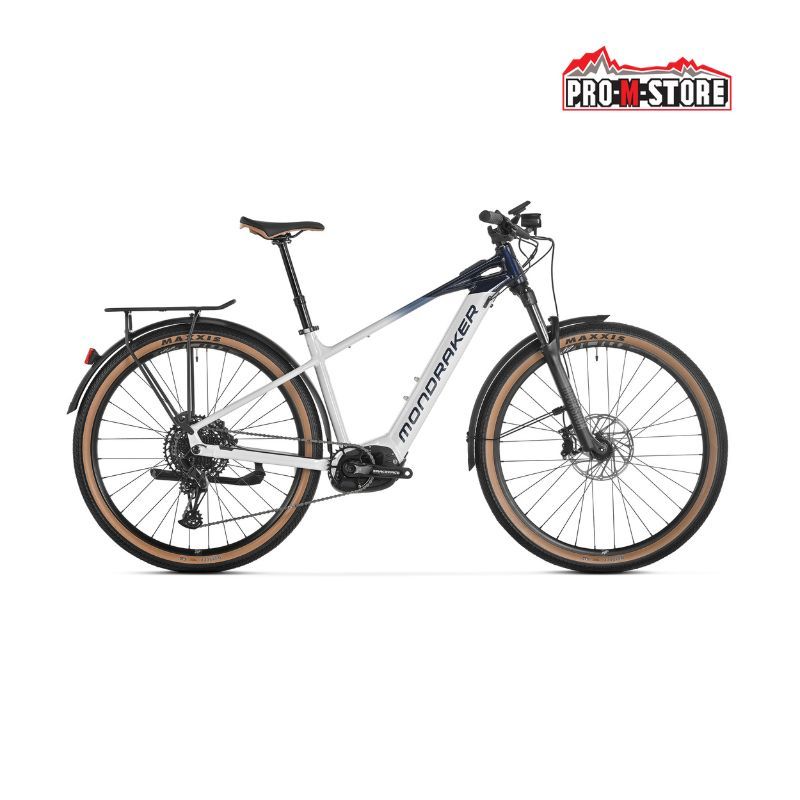

MONDRAKER PRIME RX G4 BIKE

The Mondraker PRIME RX G4 is the perfect companion to take on the toughest challenges. With its innovative design and high-performance features, it allows you to experience a unique ride on your bike.

MONDRAKER PRIME RX G4 MAIN FEATURES:

THE BIKE COMES PRE-ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

• Frame: Prime 6061 Xtralite Full Butted Alloy, Forward Geometry, non-removable internal battery, tapered head tube, Boost 12x148mm rear axle, integrated speed sensor dropout
• Motor: Bosch Performance Line CX Cruise (25Km/h) GEN4 SMART SYSTEM
• Display: Bosch Intuvia 100 / Bosch Mini Remote / Bosch System Controller
• Battery: Bosch Powertube 750Wh
• Charger: /
• Fork: RockShox 35 Silver TK 29, 120mm, TurnKey, Solo Air, tapered head tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: low-speed compression adjustment to lock, rebound, air preload
• Shock Absorber: /
• Shifter: Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
• Derailleur: /
• Shifter Command: Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click
• Cassette: Sram PG-1210, 11-50T, 12s
• Chain: Sram SX Eagle, 12s, Powerlock
• Chainring: Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
• Crankset: Race Face Aeffect ebike, 165mm
• Front Brake: Sram DB8, 4-piston caliper, Centerline 200mm IS 6-bolt one-piece rotor, organic pads with steel backing
• Rear Brake: Sram DB8, 4-piston caliper, Centerline 180mm IS 6-bolt one-piece rotor, organic pads with steel backing
• Discs: /
• Front Tire: Maxxis Grifter 29x2.5, single compound, 60TPI, rigid bead, tanned wall
• Rear Tire: Maxxis Grifter 29x2.5, single compound, 60TPI, rigid bead, tanned wall
• Wheels: MDK-HP1 29, internal width 30mm, tubeless ready, 32 spokes
• Front Hub: Formula DC711, Boost 15x110mm, sealed bearings, IS 6-bolt
• Rear Hub: Formula EHL148 Boost 12x148mm, sealed bearings, IS 6-bolt, HG freehub body
• Handlebar: MDK Urban 1.0 double thickness 6061 alloy, rise: 20mm, width: 680mm, backsweep 9°, upsweep 5°, barbore 31.8mm
• Stem: MDK Urban 35mm 0°, forged 6061 alloy, barbore 31.8mm
• Saddle: MDK urban
• Seatpost: Onoff Pija telescopic internal, diameter 31.6mm, remote lever 1X with bearing, size S: 405x95-125mm, size M: 458x120-150mm, size L: 498x140-170mm, size XL: 558x170-200mm
• Front Light: output 50LUX DC 6-12V, waterproof alloy cage
• Rear Light: fender mount, with reflector, e-bike version, 6-12V
• Rack: MDK rear rack in alloy, maximum load 25kg
• Fenders: custom MDK alloy fenders in black
• Maximum allowable weight: /
• Weight: 24.9 kg

*PRO-M STORE OFFERS THE PRE-ASSEMBLY SERVICE FOR FREE: SEATPOST, FORK, DERAILLEUR, AND BRAKES ARE ALREADY INSTALLED
