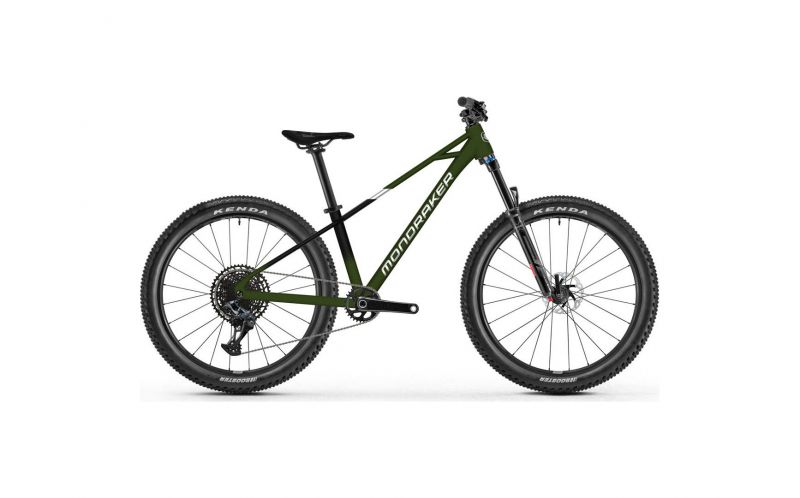

MONDRAKER TRICK 24 BIKE

The Mondraker TRICK 24 is the perfect bicycle for tackling challenging trails and off-road adventures. With its robust design and military green color, this bike captures the essence of exploring and adventuring in nature.

MONDRAKER TRICK 24 BIKE MAIN FEATURES

• Durable aluminum frame ensuring durability and reliability on rugged terrains
• 24-inch wheels ideal for navigating technical and winding terrains with agility and control
• Front suspension to absorb shocks and provide a more comfortable ride on uneven terrains
• High-quality components for optimal performance and long-lasting resistance

THE BIKE IS DELIVERED PRE-ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

• Frame: Trick 24 in 6061 Stealth Evo aluminum alloy, internal HHG cable routing, internal headset, replaceable hanger, BSA bottom bracket, 12x142 mm rear axle
• Sizes: One size: 310 mm
• Fork: X-Fusion Velvet RL 26, 100 mm, air spring, tapered steerer tube, 15x100 mm axle, 32 mm aluminum outer tubes, 41 mm offset. Settings: lockout, rebound, air preload
• Headset: Internal tapered FPD Dozer 1048AS headset, upper cover 1-1/8" 1-1/2 15mm + upper cap TJ3
• Handlebar Stem: MDK XC, forged alloy 6061, barbore 25.4 mm, rise: 0º, length: 40 mm
• Handlebar: MDK XC 1.0, alloy 6061, rise: 25 mm, width: 650 mm, backsweep angle 9º, upsweep angle 5º, barbore 31.8 mm
• Grips: ONOFF Twin, 1lock-on
• Seatpost: MDK XC, alloy 6061 T6, diameter 31.6 mm, length 300 mm, offset 0 mm
• Saddle: SDG Fly JR
• Front Brake: SRAM Level, 2-piece caliper, Centerline one-piece 160 mm IS disc, organic pads with steel support
• Rear Brake: SRAM Level, 2-piece caliper, Centerline one-piece 160 mm IS disc, organic pads with steel support
• Brake Levers: SRAM Level, tool reach adjustment, lever rotation bushings
• Rims: MDK-XP1 24 TLR, internal width 25 mm, tubeless ready, 32 spokes
• Spokes: Stainless steel Nc round
• Front Hub Axle: DA210FS02, 15x100 mm, sealed bearings, 6-bolt IS
• Rear Hub Axle: DA210RSRA01 12x142 mm, sealed bearings, 6-bolt IS, HG freehub
• Front Tire: Kenda Booster 24x2.4 single compound 30TPI, rigid bead
• Rear Tire: Kenda Booster 24x2.4 single compound 30TPI, rigid bead
• Crankset: Samox DM steel 30T, 127 mm
• Crank: 30T, steel
• Bottom Bracket: BSA, 73 mm
• Pedals: SDG Slater JR
• Chain: SRAM PC-1031, 10-speed, Powerlock
• Rear Derailleur: MICROSHIFT ADVENT X-RDM6205GM 1X10
• Shifters: MICROSHIFT ADVENT SL-M9505-R 10-speed
• Cassette: MICROSHIFT CS-G104 11-48 BLACK
• Hanger: UDH
• Weight (without pedals): 11.7 kg

*PRO-M STORE OFFERS FREE BIKE PRE-ASSEMBLY SERVICE: SEATPOST, FORK, DERAILLEUR, AND BRAKES ARE ALREADY INSTALLED

ARTICLE CODE: 010.24225 (Color: Army Green)
