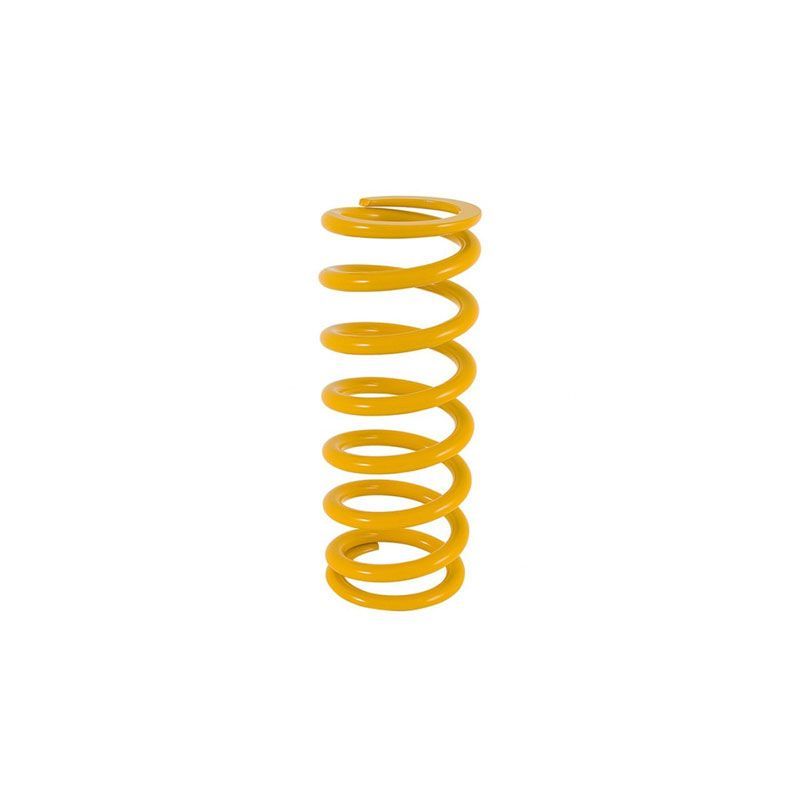

OHLINS 36/106 N/MM 605LB FOR SPECIALIZED TURBO KENEVO SPRING

Light spring for Öhlins MTB TTX 22 M and TTX 22 M universal shock absorbers available in 4 N / mm steps (the 457 lb weighs 290 g, almost like a titanium spring) and have a maximum tolerance of 1.5%.
The light springs of the 18074-05 bis -15 series are designed for the universal shock absorber TTX 22 M with article no. MTB 1691 and MTBM 1895.

OHLINS 36/106 N/MM 605LB FOR SPECIALIZED TURBO KENEVO SPRING MAIN FEATURES:

• Weight: between 241 and 360% u200B% u200Bg.
• Diameter: 36mm.
• Length: 111-120 mm.
• Spring speed: 80 N / mm.
• Stroke: 63.5mm.
• Material: steel, powder coated.
• Maximum allowable deflection: 63 mm.
• Yellow color.


Indicative table to choose the correct spring for your Specialized Turbo Kenevo:

   Code            pounds        Rider weight

18074-08          411        from 60 to 65 Kg
18074-09          434        from 65 to 70 Kg
18074-10          457        from 70 to 75 Kg
18074-11          480        from 75 to 80 Kg
18074-12          502        from 80 to 85 Kg
18074-13          525        from 85 to 90 Kg
18074-14          548        from 90 to 95 Kg
18074-15          571        from 95 to 100Kg
18074-16          605            > 100 Kg

COD. ART. 18074-16
