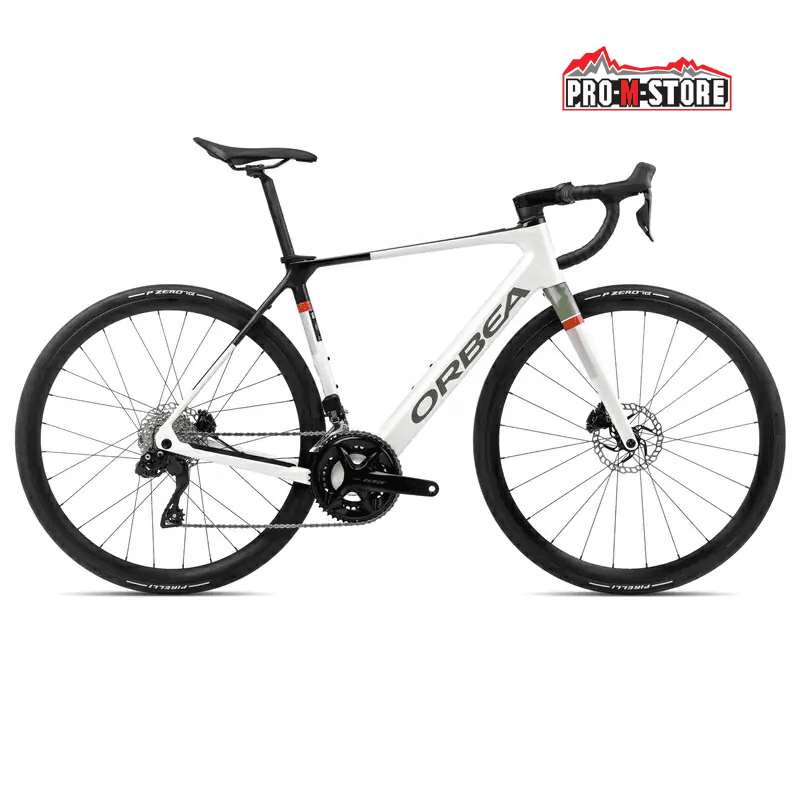

ORBEA GAIN M30I 28'' 12v 353Wh

Orbea Gain Carbon: The Lightweight and High-Performance Road E-Bike

The Orbea Gain Carbon is a road e-bike designed to deliver a smooth and natural riding experience. With its carbon frame, Mahle X20 motor, and Shimano 105 Di2 12-speed drivetrain, this bike is perfect for those seeking lightness, integration, and top-level performance.

Technical Specifications

• Wheel Diameter: 28"
• Gears: 12-speed
• Gender: Unisex
• Motor: Mahle X20 hub motor
• Battery: Mahle iX350, 36V, 353Wh
• Frame Size Available: 43

Components

• Frame: Orbea Gain Carbon OMR monocoque, integrated cable routing (ICR), 12x142mm thru-axle, flat mount disc brakes, compatible with up to 700x35mm tires, BB386 EVO bottom bracket, Mahle X20-ready.
• Fork: Gain OMR carbon, 12x100mm thru-axle, flat mount disc brakes, compatible with up to 700x35mm tires.
• Rear Derailleur: Shimano 105 Di2 R7150 electronic.
• Front Derailleur: Shimano 105 Di2 R7150.
• Shifters: Shimano Di2 R7170.
• Cassette: Shimano 105 R7100, 11-34t, 12-speed.
• Chain: Shimano M7100.
• Crankset: Shimano 105 R7100, 34x50t.
• Brakes: Shimano R7170 hydraulic disc brakes (front and rear).
• Tires: Pirelli P ZERO™ Race SmartEVO TLR, 700x30c.
• Rims: Alloy, tubeless-ready, 700c, 21mm inner width.
• Hubs: Orbea Thru Axle (front 12x100mm, rear 12x142mm).
• Handlebar: OC Road Performance RP21 Alu SL, reach 80mm, drop 125mm.
• Stem: OC Road Performance RP10, -8° angle.
• Saddle: Fizik Aliante R5.
• Seatpost: Carbon, 27.2mm diameter, 20mm setback.

Weight & Limits

• Maximum Allowed Weight: N/A
• Total Weight: N/A

The Orbea Gain Carbon is designed for riders looking for a responsive, lightweight road e-bike with a clean, integrated aesthetic.
