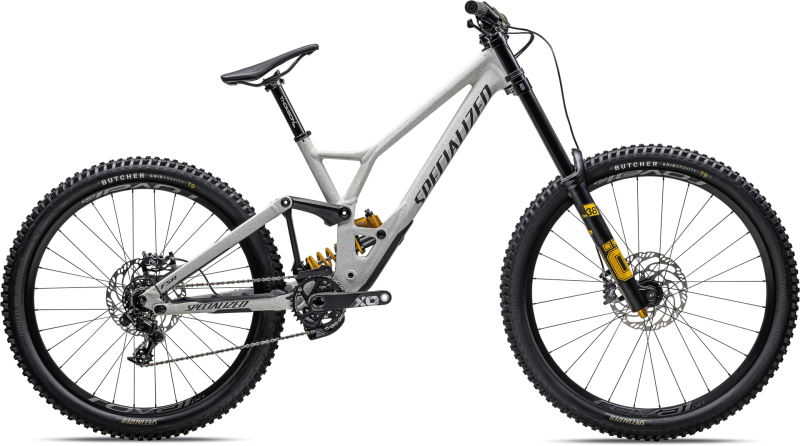

SPECIALIZED DEMO RACE BIKE

Maximum speed has always been the primary goal for Demo's design. The frame design allows flexibility in wheel mounting, allowing the rider to mount a 29-inch front wheel and a 27.5-inch rear wheel. A combination already tested by World Champion Loic Bruni, seeking the perfect balance between traction and maneuverability, now also approved by the UCI. The Demo Race has climbed to the top of the world rankings and in the World Cup in its first season.

SPECIALIZED DEMO RACE BIKE KEY FEATURES:

• The M5 alloy frame design allows for mounting a 29-inch front wheel, perfect for traction, and a 27.5-inch rear wheel, more maneuverable. At the same time, you can also opt for a 29er on the rear to accommodate different riding styles or types of terrain. The rear triangle is adjustable to ensure that the chainstay length and bottom bracket height remain tuned, regardless of the wheel size.
• The %u0150hlins TTX 22 M shock can handle the most technical DH tracks in the World Cup.
• The Ohlins DH38 fork with 200mm of travel is a guarantee in the most challenging drops.

THE BIKE IS DELIVERED PARTIALLY ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

WHEELS

• Rims: Roval 29" Alloy DH, 28mm internal width, 28h front, 32h rear, tubeless ready.
• Front Hub: Alloy, sealed cartridge bearings, 20x110mm, 28h.
• Rear Hub: DT Swiss 350, SRAM XD freehub, 6-bolt disc, high-low flange, sealed cartridge bearings, 12x148mm spacing, 32h
• Spokes: DT Swiss Competition, stainless steel, 14g.
• Front Tire: Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
• Rear Tire: Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.3"
• Inner Tubes: Standard, Presta Valve.

BRAKES

• Front Brake: Magura MT7, 4-piston caliper, hydraulic disc, 203mm.
• Rear Brake: Magura MT7, 4-piston caliper, hydraulic disc, 203mm.

COCKPIT

• Saddle: Body Geometry Henge DH, hollow titanium rails, 130mm.
• Seatpost: Thomson, alloy, straight, 12-degree clamp.
• Stem: Renthal Integra35, Direct Mount Stem, 45mm length.
• Handlebar: Renthal Fatbar35, 5-degree upsweep, 7-degree backsweep, 30mm rise, 800mm, 35.0mm.
• Grips: Deity Lockjaw.

FRAME

• Frame: M5 alloy, Style-Specific DH Geometry, horst pivot flip chip for 27.5 or 29 rear wheel, BSA threaded BB, full internal cable routing with option for full external brake, 148mm rear spacing, sealed cartridge bearing pivots, replaceable derailleur hanger, 200mm of travel
• Seatpost Collar: Specialized Alloy, 34.9mm.

SUSPENSION

• Rear Shock: Öhlins TTX 22 M Coil, external rebound adjust, external high and low speed compression adjustment, Trunnion mount, 225x75
• Fork: Öhlins DH38 M.1 29, TTX Twin Tube Damping, external low speed rebound adjust, external high and low speed compression adjustment, 20x110mm, 58mm offset, 200mm of travel.

TRANSMISSION

• Rear Derailleur: SRAM X01 DH, 7-speed, trigger.
• Shifters: SRAM X01 DH, trigger, 7-speed.
• Cassette: SRAM X01 DH, 7-speed, 10-24t.
• Chain: Sram PC1130 w/ Powerlink, 11-speed.
• Crankset: SRAM X01 DH, DUB, carbon, Direct mount ring, 165mm.
• Chainrings: 34T.
• Bottom Bracket: SRAM DUB, 83mm.

WEIGHT

• Weight: 17.46kg (38 lb, 7.9 oz).
• Weighed Size: S3.

*PRO-M STORE OFFERS FREE ASSEMBLY SERVICE OF THE BIKE: SEATPOST, FORK, DERAILLEUR, AND BRAKES ARE ALREADY MOUNTED
