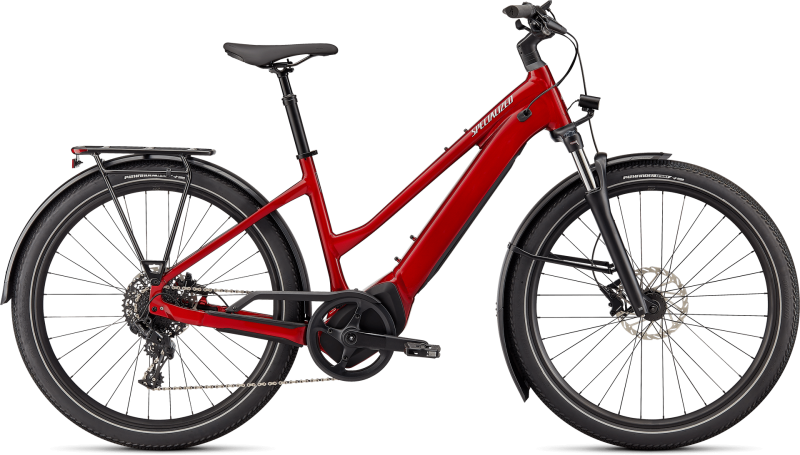

SPECIALIZED TURBO VADO 4.0 STEP THROUGH BIKE

The SPECIALIZED TURBO VADO 4.0 STEP THROUGH BICYCLE is perfect for keeping fit and pedaling quickly from one end of town to the other. It's an all-around electric bike with smooth assistance, perfect for tackling all roads.
The new geometry allows you to pedal with the right comfort and the position on the saddle allows you to always ride at maximum efficiency.

SPECIALIZED TURBO VADO 4.0 STEP THROUGH BIKE MAIN FEATURES:

• Turbo Full Power 2.0 motor with 710 Wh battery provides smooth and quiet assistance.
• MasterMind and Mission Control: The MasterMind display shows ride data, lets you adjust assistance levels and is the conduit for over-the-air updates to continuously improve the bike.
• MasterMind integrates seamlessly with the Mission Control app that provides tools for range optimization, fine tuning, system diagnostics and more.
• Turbo System Lock: Using the Mission Control app, you can disable the bike's motor and activate the motion sensor with alarm. Once locked, the motor can only be activated by the owner.
• The bike comes complete with DRYTECH mudguards, front and rear LED lights and HD rear rack with 27kg capacity, compatible with child seats. It is possible to use trolleys with through axle.

TECHNICAL SPECIFICATIONS

FRAMESET

• FRAME: E5 Aluminum, bottom bracket motor mount, fully integrated & lockable downtube battery, internal cable routing, lock and front rack mount.
• FORK: SR Suntour MobieA32, 80mm travel, lockout, fender-mounts, integrated light mount.
• CLAMP: Alloy, bolt-type, 34.9mm.

COCKPIT

• STEM: Specialized Flowset, 3D-forged alloy, 20-degree rise, 31.8mm clamp.
• HANDLEBAR: Specialized, alloy, 15-degree backsweep, 46mm rise, 31.8mm.
• SADDLE: Rivo Sport, steel rails, 155mm.
• SEATPOST: Spring suspension, alloy, 40mm travel, 30.9mm, 2-bolt clamp, 34.9mm sleeve.
• GRIPS: Body Geometry Women's Contour.

BRAKES

• FRONT BRAKE: SRAM Level, 2-piston caliper, hydraulic disc, 180mm 6-bolt.
• REAR BRAKE: SRAM Level, 2-piston caliper, hydraulic disc, 180mm 6-bolt.

DRIVETRAIN

• REAR SHIFT: SRAM NX, 11-speed.
• COMMANDS: SRAM NX, 11-speed trigger.
• CASSETTE: SRAM PG-1130, 11-speed, 11-42t.
• CHAIN: KMC e11S, 11-speed w/ Missing Link™.
• CRANKSET: Custom alloy forged crankarms.
• COGS: Praxis, 48T, 104BCD.
• CARTER: custom chaincover.

ACCESSORIES

• PEDALS: Specialized Commuter w/ grip tape & reflectors.
• FRONT LIGHT: Lezyne Ebike Hecto E65, 210 Lumen, 12V.
• REAR LIGHT: Spanninga Commuter Glow XE, 12V.
• KICKSTAND: Specialized kickstand, 40mm mount.
• RACK: Specialized rack, MIK HD inteface, built-in pannier mounts, 27kg max load.
• MUDGUARDS: Specialized DRYTECH fenders, 65mm width, aluminum fenderstay.
• BELL: Simple bell.

WHEELS

• RIMS: 650b disc, double-wall alloy, pinned, 32h.
• FRONT HUB: Specialized alloy front hub disc, sealed cardridge bearings, 6-bolt, 15x100mm thru-axle, 32h.
• REAR HUB: Specialized alloy rear hub disc, sealed cardridge bearings, 6-bolt, 12x148mm thru-axle, 32h.
• SPOKES: DT Swiss Industry.
• FRONT TIRE: Pathfinder Sport Reflect, 650Bx2.3.
• REAR TIRE: Pathfinder Sport Reflect, 650Bx2.3.
• INNER TUBES: Schrader, 40mm valve.

E-BIKE

• MOTOR: Specialized 2.0, 70Nm torque, custom tuned motor, 250W nominal.
• UI/REMOTE: MasterMind TCD, w/handlebar remote, built-in anti-theft feature, Bluetooth® connectivity, customizable display pages.
• BATTERY: Specialized U2-710, alloy casing, state of charge display, 710Wh.
• CHARGER: Custom charger, 42V4A w/ Rosenberger plug, 230V.
• WIRNESS: Custom wire harness.

ITEM NUMBER

95022-4002 (Sz.S - Color: Red Tint / Silver Reflective)
