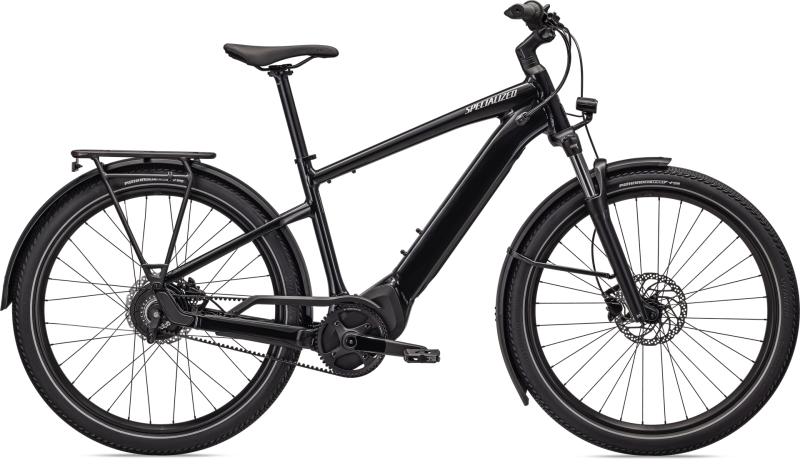

SPECIALIZED VADO 3.0 IGH BIKE

The SPECIALIZED VADO 3.0 IGH is an electric city bike perfect for keeping fit, running errands, and pedaling quickly from one end of town to the other. An all-around electric bike with smooth assistance that can handle anything on the road.
The Turbo Full Power 2.0E motor and 530 Wh battery provide smooth and quiet assistance, amplifying all efforts up to 25km/h for natural and intuitive pedaling.
The MasterMind display shows all output data, allows real-time adjustment of assistance levels, and is the conduit for over-the-air updates so you can continuously improve the bike. The MasterMind integrates seamlessly with the Mission Control App that provides tools for range optimization, fine tuning, system diagnostics and more.
The City Internal Gear Hub is an in-hub gearing system and its control. The ''stepless'' or jerkless technology is as simple as adjusting the volume of a radio. So you can focus on important things like traffic or scenery.
Turbo System Lock, together with Mission Control, allows you to disable your bike's motor and activate the motion sensor with the alarm. Once locked, the motor cannot be started by anyone other than the owner.
The battery is integrated into the down tube, is easy to remove and charge, and the bike is sold complete with DRYTECH fenders, front and rear LED lights, and HD rear rack with 27kg capacity, compatible with child seats. It is possible to use tow dollies with through-axle.

SPECIALIZED VADO 3.0 IGH BIKE MAIN FEATURES:

• Turbo Full Power 2.0E engine.
• 530wh battery.
• Mastermind display.
• Turbo System Lock.
• DRYTECH fenders.
• LED front and rear lights.
• HD rear rack.

TECHNICAL SPECIFICATIONS

FRAMESET

• FRAME: E5 Aluminum, bottom bracket motor mount, fully integrated &lockable downtube battery, internal cable routing, lock and front rack mount, sliding dropout.
• FORK: SR Suntour MobieA32, 80mm travel, lockout, fender-mounts, integrated light mount.
• BINDER: Alloy, bolt-type, 34.9mm.

COCKPIT

• STEM: Specialized Flowset, 3D-forged alloy, 20-degree rise, 31.8mm clamp.
• HANDLEBAR: Specialized, alloy, 15-degree backsweep, 46mm rise, 31.8mm.
• GRIPS: Specialized Body Geometry Contour, lock-on
• SADDLE: Rivo Sport, steel rails, 155mm.
• SEATPOST: Specialized, 6061 alloy, 2-bolt clamp, 0mm setback, 30.9mm.

BRAKES

• FRONT BRAKE: Shimano BR-MT200, hydraulic disc, 180mm Centerlock.
• REAR BRAKE: Shimano BR-MT200, hydraulic disc, 180mm 6-bolt.

DRIVETRAIN

• SHIFTER: enviolo Twist Display Pure
• CASSETTE: Gates Carbon Drive CDC 24t sprocket, silver.
• CHAIN: Gates Carbon Drive CDX 122t belt, black.
• CRANKSET: Custom alloy forged crankarms.
• COGS: Gates Carbon Drive CDC 50T chainring, black.
• CARTER: custom chaincover.

ACCESSORIES

• PEDALS: Specialized Commuter w/ grip tape & reflectors.
• FRONT LIGHT: Lezyne EBIKE MINI STVZO E65, 210 Lumen, 12V.
• REAR LIGHT: Spanninga Commuter Glow XE, 12V.
• KICKSTAND: Specialized kickstand, 40mm mount.
• RACKPACK: Specialized rack, MIK HD inteface, built-in pannier mounts, 27kg max load.
• MUDGUARDS: Specialized DRYTECH fenders, 65mm width, aluminum fenderstay.
• BELL: Simple bell.

WHEELS

• RIMS: 650b disc, double-wall alloy, pinned, 32h.
• FRONT HUB: Shimano MT400, Centerlock, 15x100mm, 32h.
• REAR HUB: enviolo CITY, 310% range, 6-bolt, 10x135mm, 32h.
• SPOKES: DT Swiss Industry.
• FRONT TIRE: Pathfinder Sport Reflect, 650Bx2.3.
• REAR TIRE: Pathfinder Sport Reflect, 650Bx2.3.
• INNER TUBES: Schrader, 40mm valve.

E-BIKE

• MOTOR: Specialized 2.0E, 50Nm torque, custom tuned motor, 250W nominal.
• UI/REMOTE: MasterMind TCD, w/handlebar remote, built-in anti-theft feature, Bluetooth® connectivity, customizable display pages.
• BATTERY: Specialized U2-530, alloy casing, state of charge display, 530Wh.
• CHARGER: Custom charger, 42V4A w/ Rosenberger plug, 230V.
• WIRNESWS: Custom wire harness.

DRIVETRAIN

• INTERNAL GEAR HUB: enviolo CVP Multi-Turn.

ITEM NUMBER

95322-7403 (Sz.M - Color: Cast Black / Silver Reflective)
