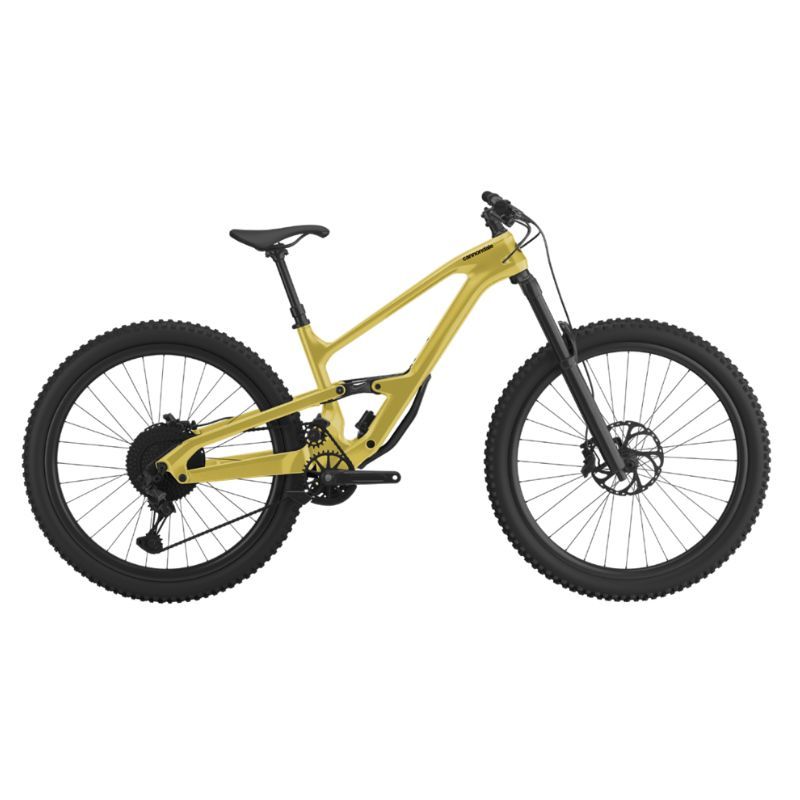

CANNONDALE JEKYLL 1 BIKE

The CANNONDALE JEKYLL 1 is a trail bike perfect for enduro competitions, bike park sessions and tackling steep, fast and tough descents. It's incredible on the climbs but it's designed for the descents: all components are designed for speed and to push the bike to its limits along steep trajectories.

The main pivot, placed in a high position, allows the axle to retract and absorb all the shocks coming from the ground while the Guidler pulley eliminates pedal feedback, typical of high pivot systems. The rear wishbone maintains smooth braking, high traction and clean pedaling.

Guidler = belt tensioner pulley + chain guide: the belt tensioner eliminates the feedback of the high pivot swing arm, keeping pedalling smooth even when the ground is uneven.

The shock is perfectly integrated into the double down tube, the center of gravity remains low, stability is incredible and the change of trajectory is immediate.

"Proportional Response" design allows for customization of suspension layout, geometry and chainstay length based on bike size.

The "Proportional Response" geometry, long, open and lowered, is customized according to the size of the bike: the front end gets longer in every size, the length of the chainstays increases proportionally, keeping the rider in the center between the wheels and ensuring maximum handling.

The Ai asymmetrical drivetrain allows both a greater spoke angle, making the wheel more rigid and sturdy, and guarantees greater space for the passage of mud between the rear chainstays.

CANNONDALE JEKYLL 1 BIKE MAIN FEATURES:

• Fox Float Factory 38 fork, 170 mm.
• Float Factory X2 shock absorber.
• SRAM GX/X1 Eagle 12-speed drivetrain.
• Code RSC hydraulic disc brakes.
• HollowGram SAVE carbon riser handlebar.
• DownLow telescopic seatpost.

TECHNICAL SPECIFICATIONS

DRIVETRAIN

• BOTTOM BRACKET: SRAM DUB BSA MTB73.
• CHAIN: SRAM NX Eagle, 12-speed.
• CRANKSET: SRAM X1 Eagle B148 CL55, 30T.
• DERAILLEUR: N/A.
• COGS: SRAM XG-1275, GX Eagle, 10-52, 12-speed.
• SHIFTERS: SRAM GX Lunar Eagle.
• SHIFT LEVERS: SRAM GX Eagle, 12-speed.

FRAMESET

• FORK: Fox Float Factory 38, 170mm, 15x110mm thru-axle, tapered steerer, 44mm offset.
• FRAME: 165mm travel, Carbon, Proportional Response Tuned, Guidler idler pulley/chainguide, BSA 73, ISCG05, tapered head tube, Ai Offset.
• HEADSET: Integrated Sealed Bearing, Tapered.
• REAR SHOCK: Fox Float Factory X2, 205x65 Metric Trunnion, Air, Adjustable High Speed/Low Speed Compression, High Speed/Low Speed Rebound.

WHEELS

• FRONT TIRE: Maxxis Assegai, 29 x 2.5", 3C compound, EXO+ puncture protection, tubeless ready.
• HUBS: (F) Formula, 15x110mm thru-axle / (R) SRAM MTH 700, 12x148mm, XD Driver.
• REAR TIRE: Maxxis Minion DHR II, 29 x 2.4", EXO+, tubeless ready.
• RIMS: WTB KOM Trail i30 TCS, 32h, tubeless ready.
• SPOKES: DT Swiss Factory J -Bend.
• TIRE SIZE: 2.5.
• TIRES: (F) Maxxis Assegai, 29 x 2.5", 3C compound, EXO+ puncture protection, tubeless ready, (R) Maxxis Minion DHR II, 29 x 2.4", EXO+, tubeless ready.
• WHEEL SIZE: 29.

BRAKES

• BRAKE LEVER: SRAM Code RSC hydraulic disc.
• BRAKES: SRAM Code RSC hydraulic disc, 220/200mm CenterLine rotors.

COMPONENTS

• GRIPS: Cannondale TrailShroom.
• HANDLEBAR: Cannondale 1 Riser, Carbon, 30mm rise, 8° sweep, 5° rise, 780mm.
• SADDLE: Fabric Scoop Shallow Elite, hollow cro-mo rails.
• SEATPOST: Cannondale DownLow Dropper w/ Matchmaker lever, 31.6, 125mm (S), 150mm (M), 170mm (L-XL).
• STEM: FSA Grid 35, 35mm.

ITEM NUMBER

C21102U10LG (Sz.L - Color: Beetle Green)
