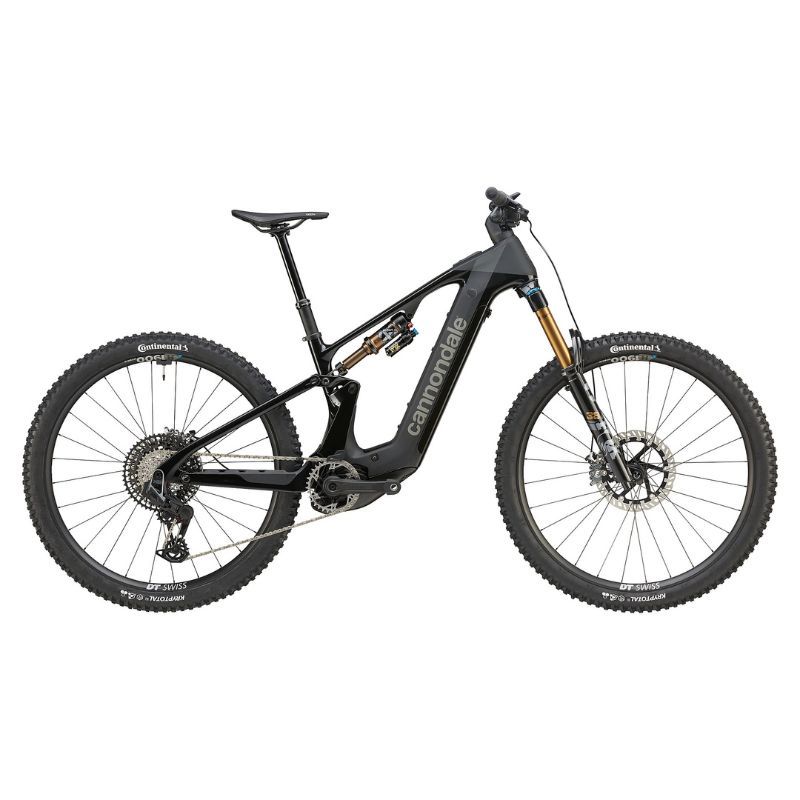

CANNONDALE MOTERRA 1 2025 BIKE
Moterra packs extraordinary power and range, combined with extremely capable suspension, to tackle the roughest terrains like a luxury off-road machine. Designed to go further, faster.
The Moterra 1 combines brute strength with the elegance needed on the trails. Featuring a new lightweight full-carbon frame and 160/150 mm of travel, it’s built for those who demand great power, smooth delivery, and absolute control. The Bosch CX motor with 800 Wh battery provides the juice for even the most challenging rides. The Kiox 500 display, integrated into the stem, keeps you informed, while top-of-the-line Fox 38 Factory and Float X Factory suspension soak up every bump. The wireless SRAM XO/GX AXS drivetrain, Magura MT7 brakes, and robust DT Swiss H1900 wheels ensure maximum precision, making it the perfect blend of speed, style, and capability.
Endless rides, climbing victories, and permanent smiles on all types of trails, from easy to demanding.
Sophistication at the service of the rider.
For mountain bike lovers who want it all – power, precision, and performance – the full-carbon Moterra frame is the perfect choice. With 150 mm rear travel, 160 mm front travel, and 29" wheels, it stays nimble downhill, stable uphill, and agile in tight sections. Less weight and such perfect handling that you'll forget you have a battery onboard.
Power. Pedal. Repeat.
With 85 Nm of torque and an 800 Wh battery, the Bosch Performance Line CX system delivers the perfect combination of power and endurance. Instant power on climbs, effortless speed on flats, and efficiency to ride from dawn to dusk. No lag, no limitations – just pure euphoria-assisted pedaling.
Perfect fit, perfect handling.
Nothing here is standardized. The Moterra’s Proportional Response™ design means every frame size gets its own custom geometry, balancing weight, traction, and control. From the first pedal stroke to the last ray of light, it’s designed to move with you: stable, agile, and effortlessly smooth.
CANNONDALE MOTERRA 1 2025 MAIN FEATURES:
- Lightweight full carbon fiber frame – Proportional Response suspension specific to each size, optimized for air shocks and 29" wheels
- Most powerful Bosch system – Performance CX motor and 800Wh battery for incredibly natural power delivery and extended range
- Top-tier Fox Factory suspension: 160mm Float Factory 38 fork and Float X Factory rear shock with piggyback
- Robust DT Swiss H 1900 Spline EMTB wheels: built to withstand – 30mm internal width, 370 hubs with durable Ratchet LN gears
- Wireless electronic 12-speed SRAM Eagle XO/GX AXS drivetrain
- Powerful and modular braking with Magura MT7 4-piston brakes and 220/203mm rotors
THE BIKE IS DELIVERED PRE-ASSEMBLED BY US*
TECHNICAL SPECIFICATIONS
Frame Kit
-
Frame
Moterra Carbon, 29" wheels, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH, 200mm native post mount brake, 1.5” – 1.8” tapered headtube, 40mm two-bolt kickstand compatible
-
Fork
Fox Float Factory 38, 160mm, GripX2 Damper, Kashima coating, 15x110mm Kabolt thru-axle, tapered steerer, 44mm offset
-
Headset
Acros ICR, 1.5" to 1.8", sealed bearings
-
Rear Shock
Fox Float X Factory, Kashima coating, 2-pos adj, EVOL LV, 230x62.5mm
E-System
-
Motor
Bosch Performance Line CX
-
Battery
Bosch PowerTube, 800Wh
-
-
Display
Top Tube System Controller with Bosch Kiox 500 & Mini Remote
Drivetrain
-
Rear Derailleur
SRAM XO Eagle AXS, T-Type
-
Shift Levers
SRAM Eagle AXS T-Type Pod Controller
-
Chain
SRAM GX T-Type, 12-speed
-
Crankset
e*thirteen e*spec Helix Core, 55mm chainline, 160mm, 34T
-
Cassette
SRAM GX Eagle T-Type, 10-52, 12-speed
Brakes
-
Brakes
Magura MT7 4-piston hydraulic disc, 220/203mm MDR-P rotors
-
Brake Levers
Magura MT7 hydraulic disc
Wheels
-
Rims
DT Swiss H 1900 Spline, 30mm inner width, TC (tubeless ready)
-
Spokes
DT Swiss Competition, straight pull
-
-
-
Hubs
(F) DT Swiss 370, 15x110mm thru-axle / (R) DT Swiss 370 Ratchet System 18, 12x148mm thru-axle, 6-bolt
-
Tires
(F) Continental Kryptotal-F, 29x2.4", Enduro Soft Black Foldable / (R) Continental Kryptotal-R, 29x2.4", Enduro Soft Black Foldable
Components
-
Handlebar
HollowGram SAVE riser bar, Carbon, 35mm clamp, 30mm rise, 8° sweep, 5° rise, 780mm
-
Stem
Cannondale Trail HeadsUp w/ integrated display mount, 3D Forged 6061 Alloy, 1-1/8", 45mm, 0°
-
Grips
Cannondale TaperRidge
-
Saddle
Fizik Terra Aidon X5, 145mm, Wingflex, S-Alloy Mobius rail
-
Seatpost
Cannondale DownLow Dropper, internal routing, 34.9, 150mm (S), 170mm (M), 200mm (L), 230mm (XL)
Extras
-
Extra 1
Tubeless valves, Bosch PowerMore range extender compatible
*PRO-M STORE OFFERS FREE BIKE PRE-ASSEMBLY SERVICE: SEATPOST, FORK, DERAILLEUR, AND BRAKES ARE ALREADY MOUNTED
