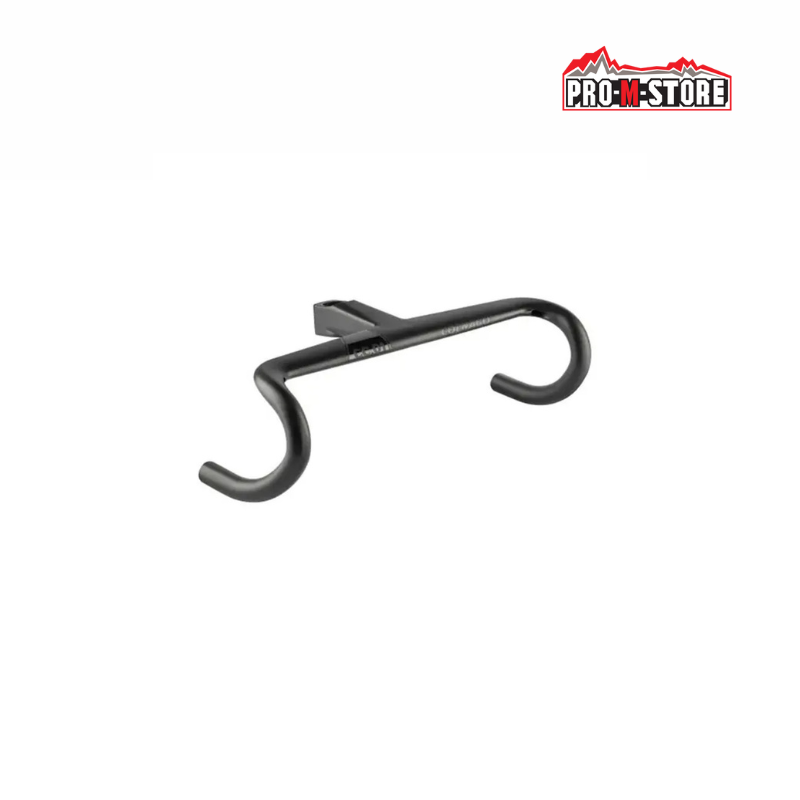

COLNAGO COCKPIT HANDLEBAR CC.01 100MMX410MM

One-piece carbon monocoque handlebar designed specifically for the V4Rs and C68 models.

The Colnago CC.01 cockpit was created to offer the widest possible range of options for precise bike fitting. In fact, there are 16 available size combinations. The stem length ranges from 80mm to 140mm. As for the handlebar width, it’s important to note that the sizes are not typical, offering odd-numbered widths instead of the more traditional even ones. Each handlebar has a slight flare: the width at the ends is 2 cm wider than at the brake hoods. For example, a handlebar with a width of 41 cm (center to center) measured at the brake levers will have a width of 43 cm (center to center) at the ends. The stated sizes refer to the center-to-center width measured at the brake lever area. The handlebars have a drop of 122mm and a reach of 80mm. The only size with a different geometry is the 37, which has a drop of 119mm, a reach of 75mm, and a 14mm flare. Not compatible with C64 and V3RS.

COLNAGO COCKPIT HANDLEBAR CC.01 100MMX410MM – MAIN FEATURES:

• Material: UD Carbon
• Diameter: 31.8 mm
• The handlebars have a drop of 122mm and a reach of 80mm. The only size with a different geometry is the 37, which has a drop of 119mm, a reach of 75mm, and a 14mm flare.
• Not compatible with C64 and V3RS.
