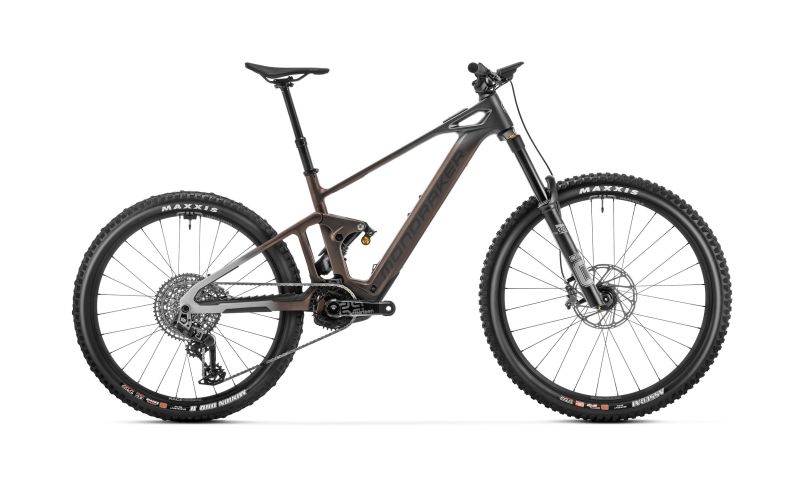

MONDRAKER DUNE RR BIKE

DUNE RR: OPERATION BALANCE
The intermediate version is equipped with Öhlins RXF 38 M.2 29 fork with 170 mm travel, Öhlins TTX Air 205X65 mm shock absorber, SRAM transmission with GX Eagle AXS T-Type derailleur, E*thirteen E*Spec Plus crankset, ONOFF Pija telescopic seatpost, SRAM Code Bronze Stealth 4-piston brakes, and e*thirteen Grappler Race wheels with 30 mm aluminum rims.

MONDRAKER DUNE RR BIKE MAIN FEATURES:

• Mullet.
• Zero suspension system.
• Forward Geometry.
• Stealth Carbon.
• Bosch.

THE BIKE IS DELIVERED PRE-ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

• FRAME: Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, Mullet, 165mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
• SIZES: S: 380mm / M: 420mm / L: 450mm / XL: 490mm.
• SHOCK ABSORBER: Öhlins TTX Air 205X65mm. Settings: high-speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 30x8mm bottom bushings.
• SHOCK ABSORBER ADJUSTMENT: C20 compression, R35 rebound. Volume reducers 12,000 (2xF+1D).
  FORK: Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high-speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber.
• HEADSET: Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing.
• STEM: Onoff Krypton FG 30mm, CNC, 31.8mm barbore.
• HANDLEBAR: Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9° backsweep, 5° upsweep, 31.8mm barbore.
• GRIPS: Onoff Desert, 1lock-on, 135mm.
• SEATPOST: Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm.
• SADDLE: Fizik Terra Aidon Slim X5.
• FRONT BRAKE: Sram Code Bronze Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads.
• REAR BRAKE: Sram Code Bronze Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
• BRAKE LEVERS: Sram Code Bronze Stealth, SwingLink and lever pivot bushings, tool-free reach adjust
• RIMS: e*thirteen Grappler Race, Hookless 6069 Welded Aluminum 30mm internal width, tubeless ready, 28F spokes 29 front, 27''5 rear.
• SPOKES: e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers.
• FRONT HUB: e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
• REAR HUB: e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub.
• FRONT TIRE: Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead.
• REAR TIRE: Maxxis Minion DHR II 27’5x2.4 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead.
• CRANKSET: E.13 E*Spec Plus,, S size: 165mm M size: 165mm L size: 170mm XL size: 170mm
• CHAINRING: Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55.
• CHAIN: Sram GX Eagle T-Type, 12s, Powerlock.
• REAR DERAILLEUR: Sram GX Eagle AXS, T-Type roller bearing clutch, cage lock, 1x12s.
• SHIFT LEVER: Sram Eagle AXS Pod MMX, 12s.
• REAR CASSETTE: Sram XS-1275, 10-52T, T-Type, 12s.
• WEIGHT: 19.6 kg.
• DISPLAY: Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller.
• MOTOR: Bosch Performance Line SX (25Km/h) GEN4 SMART SYSTEM Diagonal, Wide.
• BATTERY: Bosch Compact Powertube 400Wh.

*PRO-M STORE OFFERS FREE BIKE PRE-ASSEMBLY SERVICE: SEATPOST, FORK, DERAILLEUR, AND BRAKES ARE ALREADY INSTALLED
