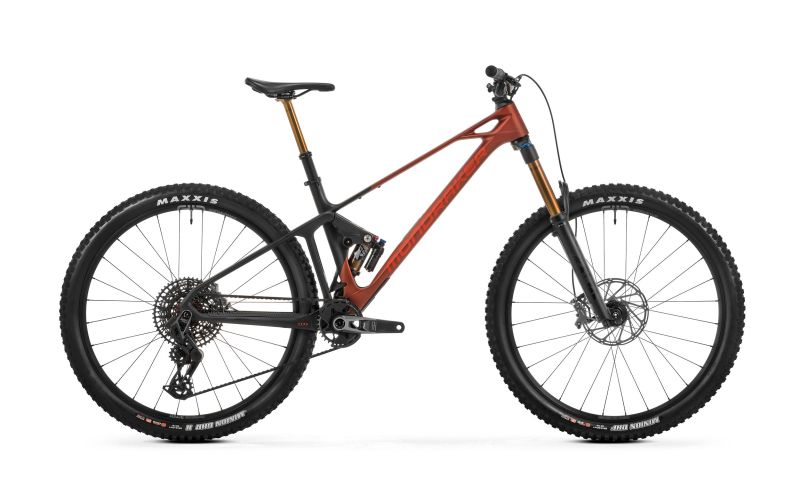

MONDRAKER FOXY CARBON RR 2 EDITION

• •Frame

  Foxy 29 Stealth Air full Carbon, Zero Suspension System, 150 mm travel, Forward Geometry, one-piece carbon upper link, Boost 12x148 mm rear axle, tapered head tube, 73 mm BSA bottom bracket, 1x drivetrain design, internal cable routing HHG, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protections.

  •Sizes

  S: 375 mm / M: 415 mm / L: 445 mm / XL: 500 mm

  •Shock

  Fox Float-X LV Factory Kashima, 205x65 mm. Settings: 2-position compression (Open/Locked), rebound, air preload. Trunnion mount, 30x8 mm lower bushings.

  •Shock adjustment

  Light compression, light rebound, 0.6 air volume spacer.

  •Fork

  Fox 36 29 Float GRIP2 Factory Kashima, Gloss Black, 160 mm, tapered head tube, Boost 15x110 mm axle, 44 mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload.

  •Headset

  Custom Acros IS52/ZS56, 1-1/8", 1.5" tapered head tube, internal cable routing, seal caps without blocklock.

  •Stem

  ONOFF S9 30mm 0°, Full CNC, 31.8 mm bar bore.

  •Handlebar

  ONOFF S9 1.0 Carbon, rise: 25 mm, width: 800 mm, backsweep 8°, upsweep 5°, 31.8 mm bar bore. Size L and XL: 1.5 rise.

  •Grips

  ONOFF Forest, CNC lock-on, 135 mm.

  •Seatpost

  Fox Transfer Factory Kashima internal, adjustable travel, 31.6 mm diameter, S size: 95 mm - 120 mm, M size: 125 mm - 150 mm, L size: 155 mm - 180 mm, XL size: 185 mm - 210 mm.

  •Saddle

  SDG BEL-AIR 3.0, LPU foam, steel rails.

  •Front brake

  Sram Code Bronze Stealth, 4-piston caliper, 200 mm Centerline single-piece disc with 6-bolt IS, organic pads with steel backing plate.

  •Rear brake

  Sram Code Bronze Stealth, 4-piston caliper, 180 mm Centerline single-piece disc with 6-bolt IS, organic pads with steel backing plate.

  •Brake levers

  Sram Code Bronze Stealth, SwingLink and lever pivot bushings, tool-free reach adjustment.

• •Wheels

  e*thirteen Grappler Race, IW30 Hookless, welded 6069 aluminum, internal width 30 mm, tubeless ready, 28 spokes.

  •Spokes

  e*thirteen Hive custom black triple-thickness alloy, alloy nipples, nipple washers.

  •Front hub axle

  e*thirteen Boost 15x110 mm, triple seal, finished aluminum, 6-bolt IS.

  •Rear hub axle

  e*thirteen Boost 12x148 mm, triple seal, finished aluminum with 6-degree engagement, 6-bolt IS, XD freehub.

  •Front tire

  Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX GRIP compound, EXO+ protection, 120TPI, foldable bead.

  •Rear tire

  Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, foldable bead.

  •Crankset

  Sram X0 Eagle T-Type, Boost, DUB axle, direct mount chainring, available sizes: 170 mm, CL 55.

  •Chainring

  32T, CNC machined alloy, T-type.

  •Bottom bracket

  Sram DUB BSA, sealed bearings, 73 mm, wide.

  •Chain

  Sram X0 Eagle T-Type, 12s, Powerlock.

  •Rear derailleur

  Sram X0 Eagle AXS T-Type, 12s.

  •Shifter

  Sram Eagle AXS Pod MMX, 12s.

  •Cassette

  Sram XS-1295, 10-52T, T-Type 12s.

  •Weight without pedals

  14.4 kg.
