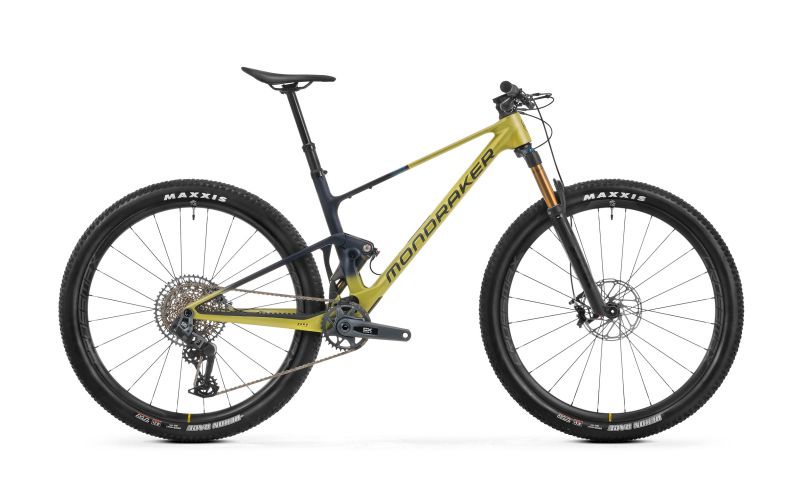

MONDRAKER F-Podium 29 Stealth Air Full Carbon - 2024

is the essence of speed and performance in cross-country riding. Built with a full carbon Stealth Air frame and Zero Suspension System optimized for XCO, this bike is designed to offer maximum control and lightness, perfect for racing and trail riding.

Specifications:

Frame

• Material: Full Carbon Stealth Air
• Suspension System: Zero Suspension System optimized for XCO, 110 mm
• Geometry: XC Forward Geometry
• Features:
  • Monoblock upper link in carbon
  • BSA bottom bracket
  • Tapered headset
  • Internal cable routing HHG
  • 1X dedicated drivetrain
  • Boost 12x148mm rear axle
  • Integrated suspension guard
  • Post Mount rear brake mount

Sizes

• S: 410 mm
• M: 440 mm
• L: 470 mm
• XL: 500 mm

Shock

• Model: Fox Float SL Factory Kashima SV EVOL, 165x45 mm
• Settings:
  • Remote 3-position compression lever (open/lock)
  • Low-speed rebound adjuster
  • Air preload

Fork

• Model: Fox 34 Step Cast Float SL EVOL Factory Kashima, GRIP SL, 120 mm
• Features:
  • Tapered steerer tube
  • Boost 15x110 mm axle
  • Offset 44 mm
• Settings:
  • Remote 3-position Push to Lock
  • Low-speed compression adjuster
  • Rebound
  • Air preload

Handlebar

• Model: ONOFF S6 Carbon 0.2
• Rise: 5mm
• Width: 760 mm
• Backsweep: 8º
• Upsweep: 4º
• Barbore: 31.8 mm

Stem

• Model: ONOFF S6 Alloy 6061
• Barbore: 31.8 mm
• Rise: +/-7º
• Length:
  • S: 50 mm
  • M: 50 mm
  • L: 60 mm
  • XL: 70 mm

Saddle

• Model: Fizik Vento Argo X5

Brakes

• Front Brake:
  • Model: Sram Level Silver 4P Stealth
  • Caliper: 2-piece
  • Rotor: Centerline 180 mm, 6 bolt IS
  • Pads: Organic with steel backing
• Rear Brake:
  • Model: Sram Level Silver 4P Stealth
  • Caliper: Flat Mount
  • Rotor: Centerline 160 mm, 6 bolt IS
  • Pads: Organic with steel backing

Wheels

• Model: Mavic CrossMax Carbon XL R
• Diameter: 29 Boost
• Internal Width: 30 mm
• Tubeless Ready: Yes

Tires

• Front and Rear: Maxxis Rekon Race 29x2.4
  • Protection: EXO
  • Tubeless ready
  • 120TPI
  • Foldable bead

Cranks

• Model: Sram GX Eagle T-Type, Boost
• Axle: DUB
• Chainring: Direct mount
• Sizes:
  • S: 170 mm
  • M: 170 mm
  • L: 175 mm
  • XL: 175 mm

Chain

• Model: Sram GX Eagle, 12s

Rear Derailleur

• Model: Sram GX Eagle AXS T-Type, 12s

Cassette

• Model: Sram XS-1275, 10-52T, T-Type 12s

Weight (without pedals)

• 11.8 kg
