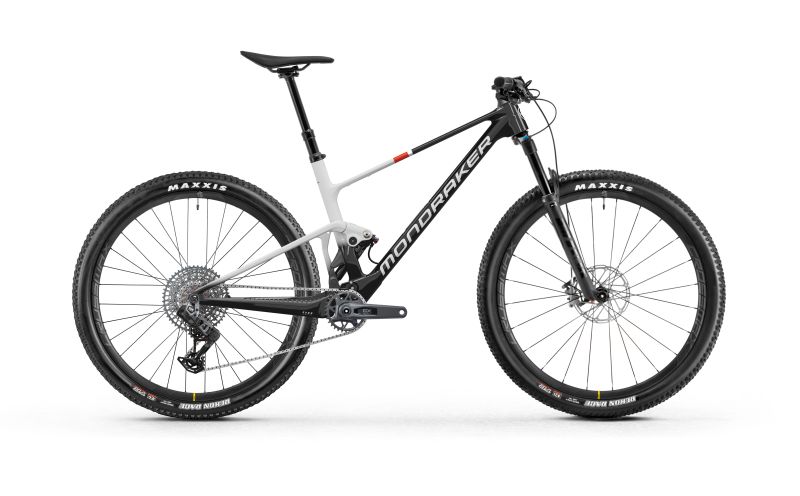

MONDRAKER F-PODIUM RS BIKE

Overview
The Mondraker F-Podium RS is a high-performance full-suspension XC bike designed for competitive cross-country racing. Built with a Stealth Air Full Carbon frame, advanced suspension systems, and SRAM GX Eagle AXS wireless drivetrain, it delivers exceptional climbing efficiency and downhill stability.

Technical Specifications

Frame

• Material: F-Podium 29 Stealth Air Full Carbon
• Suspension: Zero Suspension System optimized for XCO, 110 mm travel
• Features: Forward Geometry XC, monobloc carbon upper link, BSA bottom bracket, HHG internal cable routing, dedicated 1x drivetrain, Boost 12x148 mm rear axle, integrated shock fender, Post Mount brake mount

Sizes

• S: 410 mm
• M: 440 mm
• L: 470 mm
• XL: 500 mm

Suspension

• Rear Shock:
  • Fox Float SL Performance SV EVOL, 165x45 mm
  • Settings: 3-position remote compression (open/lock), low-speed rebound, air preload
• Fork:
  • Fox 34 Step Cast Float Grip Evol Performance, 120 mm travel
  • Settings: 3-position remote (Push-to-lock), rebound, air preload
• Remote Suspension Control:
  • Fox Dual Push 3-position

Cockpit

• Headset: Acros custom, angular contact bearings, internal cable routing
• Stem: MDK Alloy, +/-5º rise
• Handlebar: ONOFF Sulphur 0.2, 760 mm width
• Grips: ONOFF Twin, 135 mm

Saddle and Seatpost

• Saddle: Fizik Vento Argo X5
• Seatpost: ONOFF Pija internal dropper, 31.6 mm diameter

Wheels

• Rims: Mavic CrossMax XL R 29, Boost, tubeless ready
• Hubs:
  • Front: Boost 15x110 mm
  • Rear: Boost 12x148 mm, XD freehub
• Tires: Maxxis Rekon Race 29x2.4, EXO protection

Brakes

• Front Brake: SRAM Level Bronze, 180 mm rotor
• Rear Brake: SRAM Level Bronze, 160 mm rotor

Drivetrain

• Crankset: SRAM GX Eagle T-Type, 34T chainring
• Rear Derailleur: SRAM GX Eagle AXS, 12-speed
• Cassette: SRAM XS-1275, 10-52T
• Bottom Bracket: SRAM DUB BSA

Weight

• 11.9 kg

With the F-Podium RS, Mondraker combines cutting-edge materials, precise geometry, and advanced components to deliver a bike that excels in speed, agility, and performance for XC riders.
