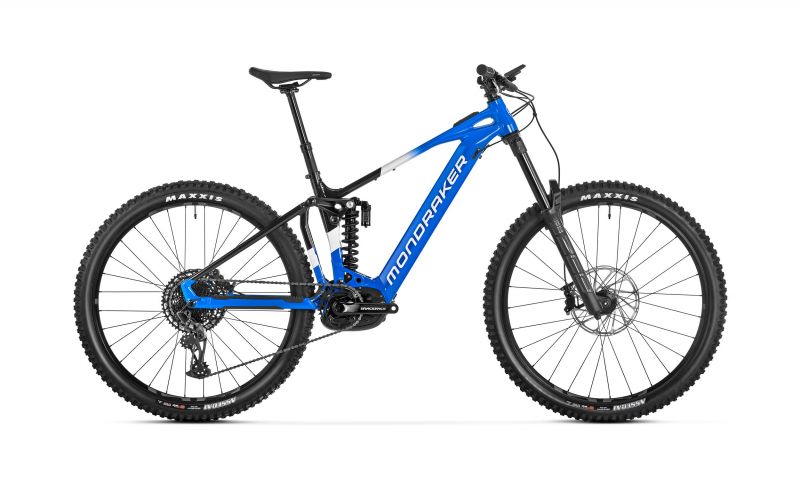

MONDRAKER LEVEL R BIKE

The LEVEL R by Mondraker is the perfect choice for mountain bike enthusiasts seeking high-level performance and eye-catching design. With its combination of cutting-edge technology and distinctive style, this model will allow you to tackle challenging trails with confidence and comfort. Get ready to experience breathtaking adventures with the Mondraker LEVEL R: the mountain bike that combines exceptional performance and unique style.

MONDRAKER LEVEL R BIKE MAIN FEATURES:

• Lightweight and durable aluminum frame designed to provide responsive and agile riding.
• High-performance suspension that absorbs shocks and ensures smooth pedaling even on the roughest terrain.
• High-quality components for increased durability and reliability.
• Powerful brakes for effective braking in any situation.

THE BIKE IS DELIVERED PRE-ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

• FRAME: Level 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 170mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
• SIZES: S: 380mm / M: 420mm / L: 450mm / XL: 490mm.
• REAR SHOCK: RockShox Super Deluxe coil Select R, 225x75mm. Settings: external bottom out, low-speed rebound, spring preload. Trunnion top mount, 25x10mm bottom bushings.
• REAR SHOCK ADJUSTMENT: Medium compression, Linear rebound. Spring rate: S size 300 lbs, M size 300 lbs, L size 350 lbs, XL size 400 lbs.
• FORK: RockShox ZEB Select Charger RC 29, 180mm, e-bike approved, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: low-speed compression, low-speed rebound, air preload.
• HEADSET: Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45°x45°, bottom 51.9x40x8x45°x45°.
• STEM: Onoff Sulfur FG 30mm 0°, 6061 forged alloy, 31.8mm barbore.
• HANDLEBAR: Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9° backsweep, 5° upsweep, 31.8mm barbore.
• GRIPS: Onoff Twin, 1lock-on, 135mm.
• SEATPOST: Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm.
• SADDLE: FIZIK Terra Aidon X5 145mm.
• FRONT BRAKE: Sram DB8, oversized 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads.
• REAR BRAKE: Sram DB8, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads.
• BRAKE LEVERS: Sram DB8, tool reach adjust, lever pivot bushings.
• RIMS: e*thirteen E*Spec, IW30 Hookless, 6069 Welded Aluminum 30mm internal width, tubeless ready, 28F / 32R spokes.
• SPOKES: e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers.
• FRONT HUB: e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts.
• REAR HUB: e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG freehub.
• FRONT TIRE: Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead.
• REAR TIRE: Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead.
• CRANKSET: Race Face Aeffect ebike, 165mm.
• CHAINRING: Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD.
• CHAIN: Sram SX Eagle, 12s, Powerlock.
• REAR DERAILLEUR: Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1.
• SHIFTER: Sram Trigger NX Eagle, 12s, X-Actuation 1:1, single click.
• REAR CASSETTE: Sram PG-1210, 11-50T, 12s.
• DROPOUT: Mondraker M068.
• WEIGHT: 26.7 kg.
• DISPLAY: Bosch Intuvia 100 / Bosch Mini Remote / Bosch System Controller.
• MOTOR: Bosch Performance Line CX Cruise 25 km/h) GEN4 SMART SYSTEM.
• BATTERY: Bosch Powertube 750Wh.

*PRO-M STORE OFFERS THE FREE SERVICE OF BIKE PRE-ASSEMBLY: SEATPOST, FORK, DERAILLEUR, AND BRAKES ARE ALREADY INSTALLED
