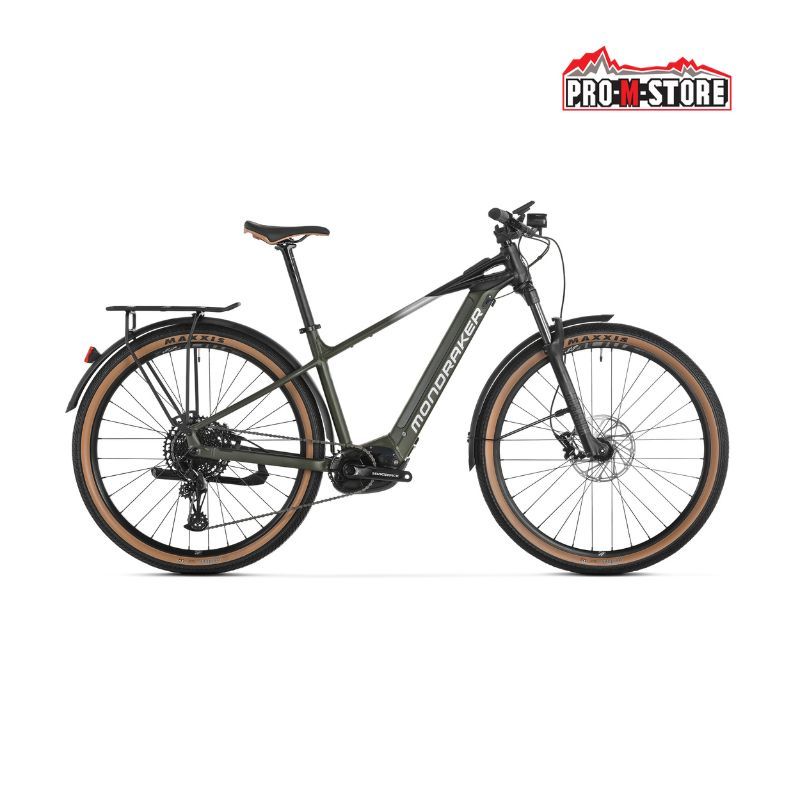

MONDRAKER PRIME X G4 BIKE

The PRIME X is the bike that will accompany you on breathtaking adventures, offering high-level performance and an attractive design. With the Mondraker brand, you can be sure you're holding a quality product that will allow you to tackle any terrain with confidence and comfort.

MAIN FEATURES OF THE MONDRAKER PRIME X G4:

• Wheel Diameter: 29.
• Gear Speed: 12.
• Motor: Bosch.
• Battery (Wh): 625.

The bike is delivered pre-assembled by us*

TECHNICAL SPECIFICATIONS

• Frame: Prime Alloy 6061 Xtralite reinforced, Forward Geometry, removable internal battery, tapered head tube, Boost 12x148mm rear axle, integrated derailleur hanger speed sensor.
• Motor: Bosch Performance Line CX Cruise (25Km/h) GEN4 SMART SYSTEM.
• Display: Bosch Intuvia 100 / Bosch Mini Remote / Bosch System Controller.
• Battery: Bosch Powertube 625Wh.
• Charger: Bosch.
• Fork: RockShox Recon Silver RL 29, 120mm, Motion control, Solo Air, tapered steerer tube, Boost 15x110mm axle, 32mm steel stanchions, 42mm offset. Settings: low-speed compression adjustment to lock, rebound, air preload.
• Shock Absorber: /
• Gear: Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12v, X-actuation 1:1.
• Derailleur: /
• Shifter: Sram Trigger SX Eagle, 12v, X-Actuation 1:1, single click.
• Cassette: Sram PG-1210, 11-50D, 12v.
• Chain: Sram SX Eagle, 12v, Powerlock.
• Chainring: Sram X-Sync 2 Eagle 34D, steel, narrow-wide, 104 BCD.
• Crankset: Race Face Aeffect ebike, 165mm.
• Front Brake: Sram Level T.
• Rear Brake: Sram Level T.
• Discs: Centerline 200mm IS 6 bolt / Centerline 200mm IS 6 bolt.
• Front Tire: Maxxis Grifter 29x2.5, single compound, 60TPI, steel bead, beige wall.
• Rear Tire: Maxxis Grifter 29x2.5, single compound, 60TPI, steel bead, beige wall.
• Rims: MDK-HP1 29, internal width 30mm, tubeless ready, 32 spokes.
• Front Hub: Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolt.
• Rear Hub: Formula EHL148 Boost 12x148mm, sealed bearings, IS 6 bolt, HG freehub.
• Handlebar: MDK Urban 1.0 alloy 6061 double butted, rise: 20mm, width: 680mm, 9º backsweep, 5º upsweep, bar bore 31.8mm.
• Stem: MDK Urban 35mm, forged 6061 alloy, bar bore 31.8mm.
• Saddle: MDK Urban.
• Seatpost: Onoff Sulfur 0-R, 6061 T6 alloy, 3D forged, diameter 31.6mm, length 400mm.
• Front Light: 50LUX output DC 6-12V, waterproof alloy casing.
• Rear Light: Fender Mount, with reflector, e-bike version, 6-12V.
• Rear Rack: Alloy MDK rear rack, maximum load 25kg.
• Fenders: Custom MDK black alloy fenders.
• Maximum Allowed Weight: /
• Weight: 24.5 kg.

*PRO-M STORE OFFERS FREE PRE-ASSEMBLY SERVICE: SEATPOST, FORK, GEAR AND BRAKES ARE ALREADY INSTALLED
