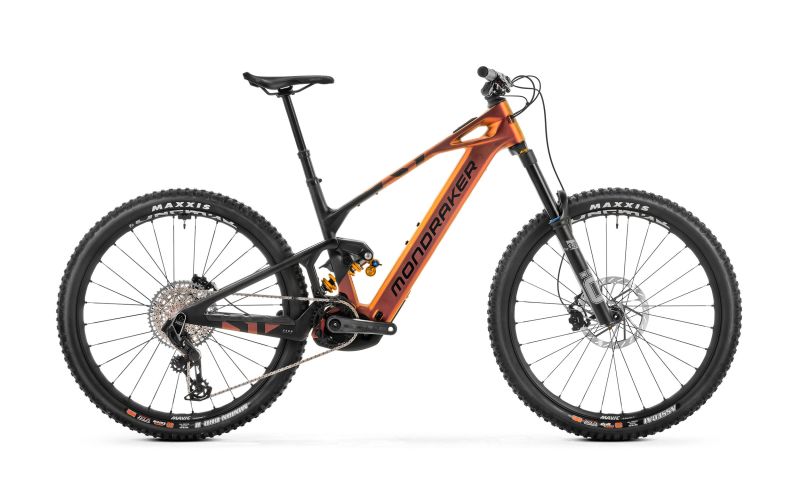

MONDRAKER CRAFTY CARBON XR 2025 BIKE

Our XR models have always pushed the limits, and the Crafty Carbon XR is no exception. It comes equipped with a 170 mm Öhlins fork, an Öhlins coil rear shock, a full carbon frame, SRAM XO EAGLE AXS drivetrain, and powerful Maven Silver brakes. With the removable internal Bosch 600Wh battery, you can add the optional 250Wh Powermore to extend your range. Color: Mars / Black.

MONDRAKER CRAFTY CARBON XR 2025 MAIN FEATURES:

• 29".
• Zero Suspension System.
• Forward Geometry.
• Stealth Carbon.
• Bosch Smart System.

THE BIKE COMES PARTIALLY ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

• Frame: Crafty Stealth Air full carbon, optimized Zero Suspension System, 150 mm travel, Forward Geometry, removable internal battery, Boost 12x148 mm rear axle, tapered head tube, one-piece upper link, HHG internal cable routing, MAX load sealed bearings, oversized 15 mm axles, exclusive plastic motor covers.
• Motor: Bosch Drive Unit Performance Line CX, Smart System
• Display: Purion 400 / Bosch Mini Remote / Bosch System Controller
• Battery: Bosch PowerTube 600Wh
• Charger: Bosch
• Fork: Öhlins RXF 38 M.2 29, 170 mm, TTX18 Twin Tube cartridge, tapered steerer, Boost 15x110 mm axle, 44 mm offset. Settings: high-speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber
• Shock: Öhlins TTX22M.2 185x55 mm. Settings: high-speed compression lever with climb mode, low-speed compression, rebound, air preload. Upper Trunnion mount, lower bushings 30x8 mm
• Rear Derailleur: Sram X0 Eagle AXS, T-Type, 12s
• Front Derailleur: N/A
• Shifter: Sram Eagle AXS Pod MMX, 12s
• Cassette: Sram XS-1295, 10-52T, T-Type 12s
• Chain: Sram GX Eagle T-Type, 12s, Powerlock
• Chainring: Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55
• Crankset: E.13 Helix Core E*Spec Plus, all sizes: 160 mm
• Front Brake: Sram Maven Silver, 4-piston caliper (18 and 19.5 mm), one-piece Centerline 220 mm rotor with 6-bolt IS, sintered metal pads with steel backing
• Rear Brake: Sram Maven Silver, 4-piston caliper (18 and 19.5 mm), one-piece Centerline 200 mm rotor with 6-bolt IS, sintered metal pads with steel backing
• Rotors: N/A
• Front Tire: Maxxis Assegai 29x2.6WT, tubeless ready, 3C MAXX GRIP compound, DD protection, 60x2TPI, folding bead
• Rear Tire: Maxxis Minion DHR II 29x2.6 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead
• Rims: Mavic E-Deemax S 29, 30 mm internal width, Maxtal alloy welded, PFP, tubeless ready, 28 spokes
• Front Hub: Mavic, Boost 15x110 mm, 6-bolt IS
• Rear Hub: Mavic, Boost 12x148 mm, Ratchet System Ritched ID360, 6-bolt IS, XD freehub
• Handlebar: ONOFF S6 1.0 Carbon, rise: 25 mm, width: 800 mm, backsweep 8º, upsweep 5º, clamp diameter 31.8 mm. Sizes L and XL: rise 1.5.
• Stem: ONOFF S9 30mm 0º, Full CNC, clamp diameter 31.8 mm
• Saddle: Ergon SM-10
• Seatpost: ONOFF Pija internal dropper, diameter 31.6 mm, 1X remote lever with bearing, size S: 140-115 mm (388-235 mm), size M: 160-135 mm (428-255 mm), size L: 180-155 mm (468-275 mm), size XL: 210-185 mm (528-305 mm)
• Maximum Permissible Weight: N/A
• Weight: N/A

*PRO-M STORE OFFERS FREE BIKE PRE-ASSEMBLY: SEATPOST, FORK, DERAILLEUR, AND BRAKES ARE ALREADY INSTALLED
