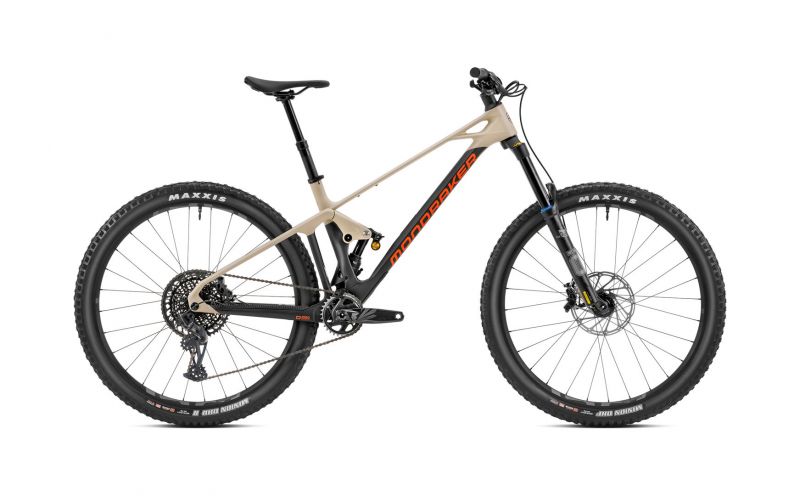

MONDRAKER FOXY CARBON RR BIKE

The FOXY CARBON RR by Mondraker is the perfect choice for mountain bike adventure enthusiasts. With its lightweight and durable carbon frame, this model offers exceptional performance on rough terrain and challenging descents. The sleek design and attention to detail make this mountain bike a versatile option for exploring new trails and overcoming track challenges.

MONDRAKER FOXY CARBON RR BIKE MAIN FEATURES:

• Carbon frame for increased strength and lightness.
• Performance suspensions that absorb shocks and ensure optimal control.
• Cutting-edge geometry for precise and responsive handling.
• High-quality components for reliable and durable performance.
• Eye-catching design and Desert Grey color that stands out on the track.

THE BIKE COMES PRE-ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

• FRAME: Foxy 29 Stealth Air full Carbon, Zero Suspension System, 150mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors.
• SIZES: S: 380mm / M: 420mm / L: 450mm / XL: 500mm.
• REAR SHOCK: Öhlins TTX Air 205x65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 30x8mm bottom bushings.
• REAR SHOCK ADJUSTMENT: C10 compression, R35 rebound. Volume reducers 16.000 (2xF+1E).
• FORK: Öhlins RXF 36 M.2 29, 160mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber. Fork settings: C20 R40.
• HEADSET: Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing.
• STEM: Onoff Sulfur FG 30mm, 6061 forged alloy, 31.8mm barbore.
• HANDLEBAR: Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9° backsweep, 5° upsweep, 31.8mm barbore.
• GRIPS: Onoff Desert, 1lock-on, 135mm.
• SEATPOST: Onoff Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm.
• SADDLE: SDG BEL-AIR 3.0, LPU foam, steel rails
• FRONT BRAKE: Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads.
• REAR BRAKE: Sram Code R, oversized 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads.
• BRAKE LEVERS: Sram Code R, tool-free reach adjust.
• RIMS: e*thirteen LG1 Plus Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes
• SPOKES: e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers.
• FRONT HUB: e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
• REAR HUB: e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub.
• FRONT TIRE: Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead.
• REAR TIRE: Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead.
• CRANKSET: Sram GX Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm.
• CHAINRING: 32T, CNC-machined alloy, X-SYNC 2.
• BOTTOM BRACKET: Sram DUB BSA, sealed bearings, 73mm.
• CHAIN: Sram NX Eagle, 12s, Powerlock.
• REAR DERAILLEUR: Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1.
• SHIFT LEVERS: Sram Trigger GX Eagle, 12s, X-Actuation 1:1.
• REAR CASSETTE: Sram XG-1275, 10-52T, 12s.
• DERAILLEUR HANGER: Sram UDH.
• WEIGHT: 14.5 kg.

*PRO-M STORE OFFERS FREE BIKE PRE-ASSEMBLY SERVICE: SEATPOST, FORK, DERAILLEUR, AND BRAKES ARE ALREADY INSTALLED
