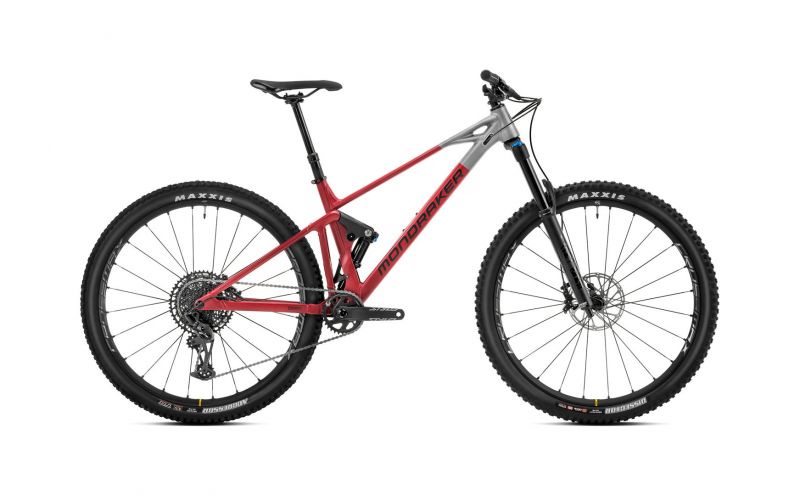

MONDRAKER RAZE R BIKE EDITION 1

The brand new RAZE R brings incredible power to explore more trails through a perfect combination of captivating design and exceptional performance. With this mountain bike, every ride becomes an exciting adventure, thanks to its durability and maneuverability.

MONDRAKER RAZE R BIKE EDITION 1 KEY FEATURES

• Lightweight and durable aluminum frame for agile and responsive riding
• Front and rear suspension for greater shock absorption and optimal control on rough terrains
• 12-speed drivetrain for tackling various terrain conditions with ease
• Hydraulic disc brakes for powerful and reliable braking in any situation

THE BIKE IS DELIVERED PRE-ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

• Frame: Raze 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 130mm travel, Forward Geometry, one-piece upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, internal dropper post routing, MAX capacity sealed bearings, ISCG 05
• Sizes: S: 380mm / M: 420mm / L: 470mm / XL: 510mm
• Shock: Fox Float DPS LV EVOL Performance, 205x57.5mm. Settings: rebound, 3-position compression adjustment (Open/Medium/Closed), air preload. Trunnion upper mount, lower bushings 25x8mm
• Fork: Fox 36 29 Float GRIP EVOL Rhythm, 150mm, tapered steerer, Boost 15x110mm axle, 44mm offset. Settings: rebound compression adjustment, low-speed rebound, air preload
• Headset: ONOFF Saturn tapered 1-1/8" to 1-1/2", sealed ACB bearings, upper 41x30.2x7x45°x45°, lower 51.9x40x8x45°x45°
• Stem: ONOFF Sulphur FG 30mm 0°, forged alloy 6061, barbore 31.8mm
• Handlebar: ONOFF Sulphur 1.0 alloy 6061 double butted, rise: 20mm, width: 800mm, backsweep 9°, upsweep 5°, barbore 31.8mm
• Grips: ONOFF Twin, 1lock-on, 135mm
• Dropper Post: Internal ONOFF Pija, diameter 31.6mm
• Saddle: MDK PU 2023
• Front Brake: Sram G2 R, 4-piston caliper, Centerline 180mm rotor, 6-bolt IS
• Rear Brake: Sram G2 R, 4-piston caliper, Centerline 180mm rotor, 6-bolt IS
• Wheels: Mavic Crossmax Carbon XL S, 29 Boost, 30mm internal width, tubeless ready
• Tires: Maxxis Dissector 29x2.4 WT (Front), Maxxis Aggressor 29x2.3 (Rear)
• Crankset: Truvativ Stylo 7k Eagle, Boost, DUB spindle
• Weight without pedals: 14.9 kg

*PRO-M STORE OFFERS FREE BIKE PRE-ASSEMBLY SERVICE: SEATPOST, FORK, DERAILLEUR, AND BRAKES ARE ALREADY INSTALLED

ITEM CODE: 010.23081 (Size S; Color: Cherry Red)
