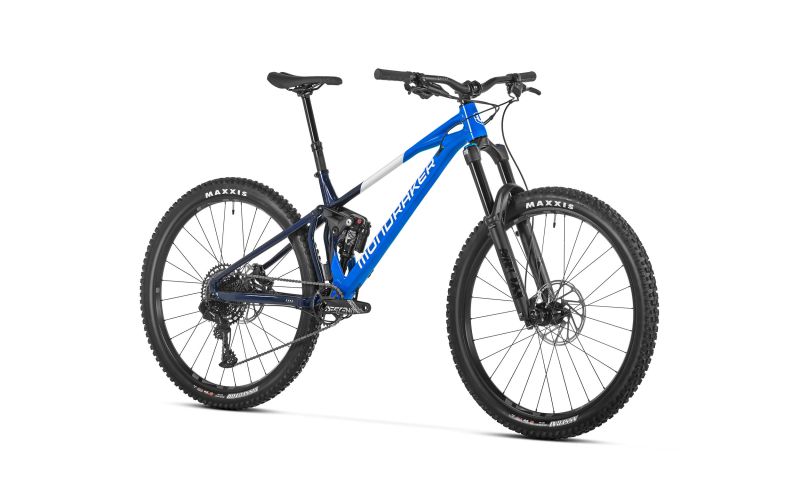

MONDRAKER SUPERFOXY 2 EDITION BIKE

• Sizes

  S: 380 mm / M: 420 mm / L: 470 mm / XL: 510 mm

  Shock Absorber

  Fox Float-X LV Performance, 205x65 mm. Adjustments: 2-position compression lever, low-speed extension, air preload. Top Trunnion mount, lower bushings 22.2x10 mm

  Shock Absorber Adjustment

  Medium compression, medium rebound, 0.2 air volume spacer

  Fork

  Fox 38 29 Float FIT GRIP RHYTHM, 170mm, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Adjustments: 3 positions with micro-adjustable compression, low-speed rebound, air preload

  Steerer

  ONOFF Saturn tapered headset, sealed ACB bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º

  Stem

  ONOFF Sulphur FG 30 mm 0º, forged 6061 alloy, 31.8 mm bar bore

  Handlebar

  ONOFF Sulphur 1.0 6061 alloy, double thickness, rise: 20 mm, width: 800 mm, backsweep angle 9º, upsweep angle 5º, 31.8 mm bar bore

  Grips

  ONOFF Twin, 1 lock-on, 135 mm

  Seatpost

  ONOFF Pija internal dropper, 31.6 mm diameter, remote lever 1X with bearing, size S: 405x95-125 mm, size M: 458x120-150 mm, size L: 498x140-170 mm, size XL: 558x170-200 mm

  Seat

  SDG BEL-AIR 3.0, LPU foam, steel rails

  Front Brake

  SRAM DB8, 4-piston caliper, 200 mm one-piece Centerline rotor with 6-bolt IS, organic pads with steel backing

  Rear Brake

  SRAM DB8, 4-piston caliper, 200 mm one-piece Centerline rotor with 6-bolt IS, organic pads with steel backing

  Brake Levers

  SRAM DB8, reach adjustment with tools, lever pivot bearings

  Rims

  e*thirteen LG1 Enduro, IW30 Hookless, welded 6069 aluminum, internal width 30 mm, tubeless ready, 28 spokes

• Spokes

  e*thirteen Hive custom triple-butted black alloy spokes, alloy nipples, nipple washers

  Front Hub Axle

  e*thirteen Boost 15x110 mm, triple-sealed, anodized aluminum, 6-bolt IS

  Rear Hub Axle

  e*thirteen Superboost 12x157 mm, triple-sealed, anodized aluminum with 6-degree engagement, 6-bolt IS, HG freehub

  Front Tire

  Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead

  Rear Tire

  Maxxis Dissector 29x2.4WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead

  Crankset

  SRAM Truvativ Descendant 7K Eagle, SuperBoost, DUB spindle, direct mount chainring, size S: 170 mm, size M: 170 mm, size L: 175 mm, size XL: 175 mm

  Chainring

  32T, CNC-machined alloy, X-SYNC 2

  Bottom Bracket

  SRAM DUB BSA, sealed bearings, 73 mm, superboost

  Chain

  SRAM SX Eagle, 12s, Powerlock

  Rear Derailleur

  SRAM GX Eagle, 12s, direct mount

  Shifters

  SRAM GX Eagle, 12-speed, Trigger

  Wheels

  e*thirteen LG1 Enduro, IW30 Hookless, 6069, internal width 30 mm, tubeless ready, 28 spokes

  Shifter Levers

  SRAM GX Eagle, 12s
