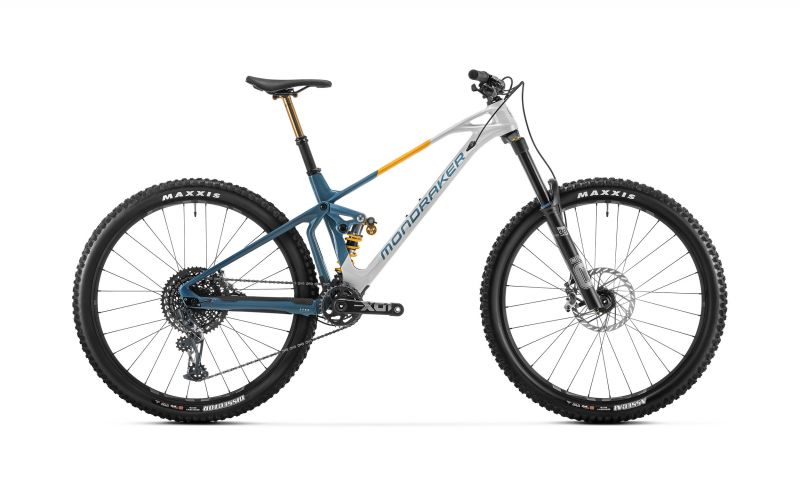

MONDRAKER SUPERFOXY CARBON RR 2 EDITION BIKE

The brand new SUPERFOXY CARBON RR brings the incredible power to explore more trails through a combination of innovative design and exceptional performance. With its lightweight and durable carbon structure, this mountain bike is ready to take your adventures on rugged terrain to the next level.

MONDRAKER SUPERFOXY CARBON RR 2 EDITION BIKE MAIN FEATURES:

• Sturdy and lightweight carbon frame.
• Zero rear suspension system with 160mm of travel for excellent shock absorption.
• Progressive geometry for increased stability and control during descents.
• Powerful brakes for increased safety and control while riding.

THE BIKE IS DELIVERED PREASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

• FRAME: SuperFoxy 29 Stealth Air full Carbon, Zero Suspension System, 160mm travel, Forward Geometry, Carbon Monoblock upper link, SuperBoost 12x157mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors. *Geometry kit included.
• SIZES: S: 380mm / M: 420mm / L: 470mm / XL: 510mm.
• REAR SHOCK: Öhlins TTX 22M.2 NH Coil 205X65mm. Settings: high-speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings.
• REAR SHOCK ADJUSTMENT: C10 compression, R35 rebound. Spring rate: S size 343 lbs, M size 411 lbs, L size 457 lbs, XL size 502 lbs.
• FORK: Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high-speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber.
• HEADSET: Onoff Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8x30.5x8x45ºx45º, bottom 51.9x40x8x45ºx45º.
• STEM: Onoff Krypton FG 30mm, CNC, 31.8mm barbore.
• HANDLEBAR: Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore.
• GRIPS: Onoff Desert, 1lock-on, 135mm.
• SEATPOST: Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 363.5x125mm, M size: 418.3x150mm, L size: 475.1x175mm, XL size: 475.1x200mm.
• SADDLE: SDG BEL-AIR 3.0, LPU foam, steel rails.
• FRONT BRAKE: Sram Code Ultimate Stealth, oversized 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads.
• REAR BRAKE: Sram Code Ultimate Stealth, oversized 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads.
• BRAKE LEVERS: Sram Code Ultimate Stealth, SwingLink and lever pivot bearings, tools-free reach and contact point adjust.
• RIMS: e*thirteen LG1 Plus Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes.
• SPOKES: e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers.
• FRONT HUB: e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts.
• REAR HUB: e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub.
• FRONT TIRE: Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead.
• REAR TIRE: Maxxis Dissector 29x2.4WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead.
• CRANKSET: Sram X01 Carbon Eagle, SuperBoost, DUB axle, Direct mount chain ring, S size: 170mm M size: 170mm L size: 175mm XL size: 175mm CL 56´5.
• CHAINRING: 32T, CNC-machined alloy, X-SYNC 2.
• BOTTOM BRACKET: Sram DUB BSA, sealed bearings, 73mm, superboost.
• CHAIN: Sram GX Eagle, 12s, Powerlock.
• REAR DERAILLEUR: Sram X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1.
• SHIFT LEVER: Sram Trigger X01 Eagle, 12s, X-Actuation 1:1.
• REAR CASSETTE: Sram XG-1275, 10-52T, 12s.
• DERAILLEUR HANGER: Mondraker M071.
• WEIGHT: 15.8 kg.

*PRO-M STORE OFFERS FREE BIKE PRE-ASSEMBLY SERVICE: SEATPOST, FORK, DERAILLEUR, AND BRAKES ARE ALREADY MOUNTED
