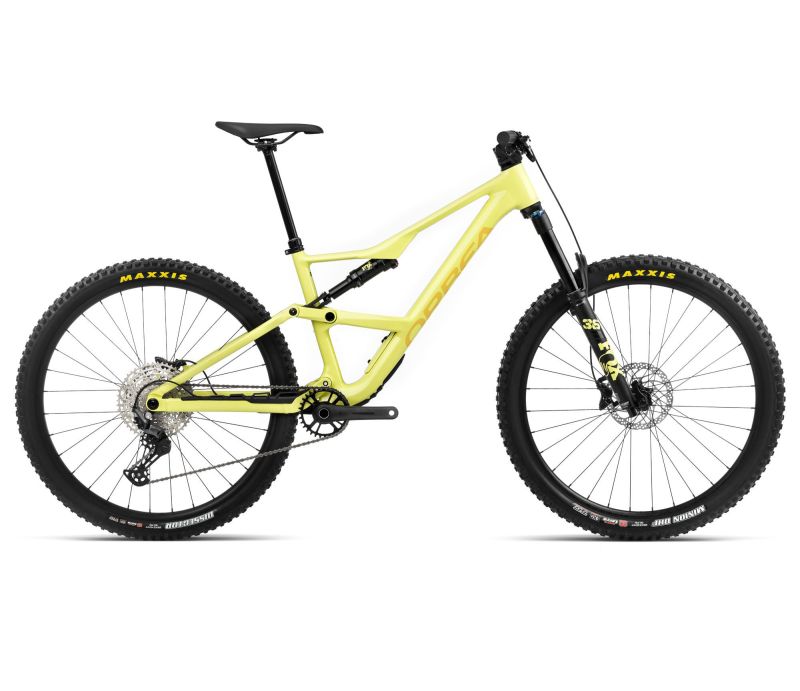

ORBEA OCCAM LT H30 BIKE

ORBEA OCCAM LT H30 BIKE

The Orbea Occam Hydro is a full-suspension mountain bike built for tackling technical trails with agility and confidence. Its hydroformed aluminum frame with Pure Trail geometry ensures stability, while the Fox 36 Float Performance 160mm fork and Fox FLOAT Performance shock provide excellent impact absorption. The Shimano Deore 12-speed drivetrain ensures smooth shifting, and the Shimano MT420 hydraulic brakes deliver reliable stopping power.

Technical Specifications

• Wheel Diameter: 29"
• Gears: 12-Speed
• Gender: Unisex
• Size: 46

Components

• Frame: Orbea Occam Hydro, Boost 12x148mm rear axle, Pure Trail geometry, internal cable routing, asymmetric design, OC multitool compatible.
• Fork: Fox 36 Float Performance 160 Grip 3-Position QR15x110.
• Shock: Fox FLOAT Performance 2-Position Evol custom tune 210x55mm.
• Rear Derailleur: Shimano Deore M6100 SGS Shadow Plus.
• Shifter: Shimano Deore M6100 I-Spec EV.
• Cassette: Shimano CS-M6100 10-51t 12-Speed.
• Chain: Shimano M6100.
• Crankset: Forged alloy, 32t.
• Brakes: Shimano MT420 Hydraulic Disc (front & rear).
• Tires:
  • Front: Maxxis Minion DHF 2.50" FB 60 TPI 3C Maxx Terra Exo TR.
  • Rear: Maxxis Minion DHF 2.50" FB 60 TPI 3C Maxx Terra Exo TR.
• Wheels: Alloy, Tubeless, 29", 29c, 32H.
• Handlebar: OC Mountain Control MC30, Rise 20, 800mm width.
• Stem: OC Mountain Control MC20, 0º angle.
• Saddle: Selle Royal 2058 DRN.
• Seatpost: OC Mountain Control MC21, 31.6mm, Dropper.
• Maximum Weight Allowed: N/A.
• Weight: N/A.
