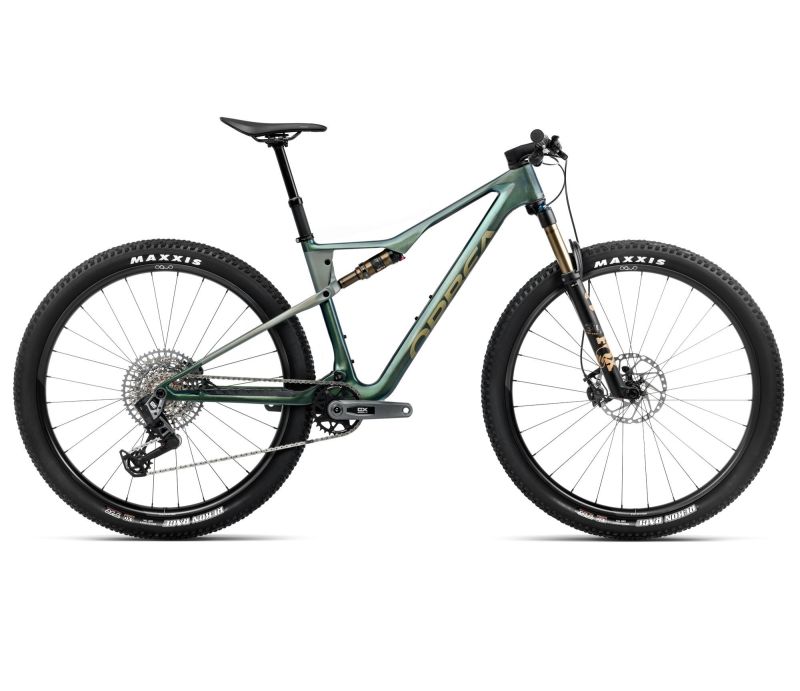

ORBEA OIZ M10 AXS BIKE

A Relentless Racing Dynamo

Designed with no compromises, the ORBEA OIZ M10 AXS combines stunning aesthetics with extraordinary performance. Its progressive geometry and cutting-edge construction, together with a highly efficient suspension, offer superior grip and precise control — giving you the power to tackle steep climbs and push your limits on demanding terrain.

Innovative Racing Geometry

The bike features a steep seat tube and reduced stack height, positioning you perfectly for optimal control and power transfer. The extended reach, combined with a 60–90 mm stem, ensures stability on steep descents while keeping weight on the front wheel for aggressive climbs and sharp turns.

Peak Suspension Efficiency

From the ground up, the OIZ M10 AXS was built with race-optimized 120 mm suspension, offering unbeatable confidence and efficiency on any trail. Conquer the toughest climbs and leave your rivals behind on the descents.

Perfectly Tuned Rigidity

Lightweight and rigid, this bike delivers quick responses and the efficiency that make it a standout XC race machine.

Integrated Shock Lockout System

The patented I-line system provides an outstandingly integrated shock lockout — the most direct, seamless, and clean setup on the market. The cable follows the shortest route to the remote, reducing clutter, dirt buildup, and friction.

OMR Carbon Frame

The OIZ M10 AXS features a second-level OMR carbon frame that provides the same stiffness and strength as the top-tier OMX, but without the ultra-lightweight focus.

Simplified OC Squidlock Remote

Following the principle of efficiency, the OC Squidlock remote has been reduced to just two levers: one for controlling the suspension and the other for the dropper post. Sleek, discreet, and easy to use.

ORBEA OIZ M10 AXS MAIN FEATURES:

• Wheel Diameter: 29
• Gear Speeds: 12

THE BIKE COMES PRE-ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

• Frame: Orbea Oiz Carbon OMR, Fiberlink, Boost, BSA, SIC, UFO, I-line shock
• Fork: Fox 34 Float SC Factory 120 FIT4 Remote-Adj Push to Lock QR15x110 Kashima
• Shock: Fox Float SL Factory 120mm Remote Push-lock Evol Kashima custom tune 190x45mm
• Rear Derailleur: Sram GX Eagle AXS
• Front Derailleur: N/A
• Shifter: Sram AXS Pod
• Cassette: Sram GX-1275 Eagle 10-52t 12-Speed
• Chain: Sram GX Eagle 12-Speed
• Chainring: N/A
• Crankset: Sram GX Eagle Dub 32t
• Front Brake: Shimano XT M8100 Hydraulic Disc
• Rear Brake: Shimano XT M8100 Hydraulic Disc
• Rotors: N/A
• Front Tire: Maxxis Rekon Race 2.40" WT 120 TPI Exo TLR
• Rear Tire: Maxxis Rekon Race 2.40" WT 120 TPI Exo TLR
• Rims: Oquo Mountain Performance MP30TEAM
• Front Hub: N/A
• Rear Hub: N/A
• Handlebar: OC Mountain Performance MP10 Carbon, Width 760
• Stem: OC Mountain Performance MP21, -6º
• Saddle: Fizik Vento Argo X5 Aluminum 140mm
• Seatpost: OC Mountain Control MC22, 31.6mm, Dropper
• Max Permitted Weight: N/A
• Weight: N/A

*PRO-M STORE PROVIDES FREE PRE-ASSEMBLY SERVICE: SEATPOST, FORK, DERAILLEUR, AND BRAKES ARE ALREADY INSTALLED
