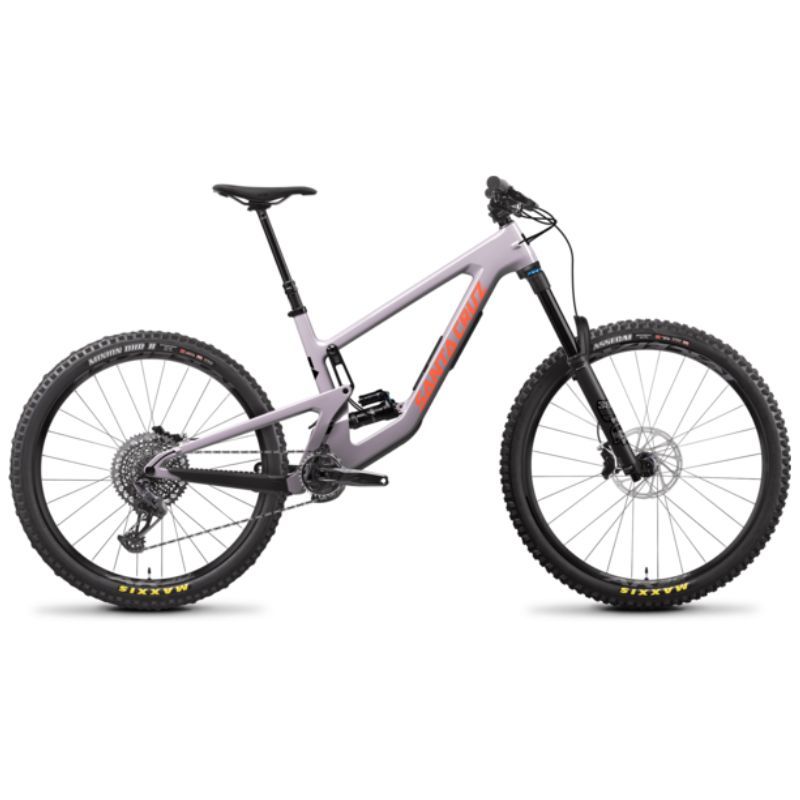

SANTA CRUZ NOMAD 6 C S MX BIKE

The SANTA CRUZ NOMAD 6 C S MX BIKE is a perfect bike for going anywhere. The bike is equipped with a "glove box tool holder."
The horizontal chainstay length and seat angle are matched to the frame size (the STA tilts and the rear center increases as the frame size increases) so that every rider, regardless of height, gets the same balance of geometry and handling characteristics.
The 29" front wheel provides traction and stability while the 27.5" rear wheel allows for quick wheel lift and steering.
The flip-chip, positioned low, becomes more progressive, particularly at the end of the stroke while in the "high" position the bike travels a little higher in its stroke and provides the rider with more mid-stroke support.
Frame stiffness is adjusted according to size: larger cyclists mean higher stresses on larger frames. So the stiffness is customized for each size to make sure everyone has the same ride quality.
Mudguard to protect the shock absorber, neat cable routing inside the frame and fork, and rubberized DT guards to prevent bumps.

SANTA CRUZ NOMAD 6 C S MX BIKE MAIN FEATURES:

• Carbon C frame.
• Wheel size: MX.
• Front/rear travel: 170 mm.

THE BIKE IS DELIVERED PRE-ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

• KIT: S.
• WEIGHT: 15.65kg.
• MATERIAL: Carbon C.
• FORK: FOX 38 Float Performance, 170mm.
• SHOCK: RockShox Super Deluxe Select+.
• REAR DERAILLEUR: SRAM GX Eagle, 12spd.
• SHIFTER: SRAM GX Eagle, 12spd.
• CRANKSET: SRAM GX Eagle 148 DUB, 32t.
• CASSETTE: SRAM XG1275 Eagle, 12spd, 10-50t.
• CHAIN: SRAM GX Eagle, 12spd.
• BOTTOM BRACKET: SRAM DUB 68/73mm Threaded BB.
• BRAKES: SRAM Code R.
• ROTORS: Avid Centerline 200mm.
• HEADSET: Cane Creek 40 IS Integrated Headset.
• HANDLEBAR: Burgtec RideWide Alloy Bar, 800mm.
• STEM: Burgtec Enduro MK3, 42mm.
• GRIPS: Santa Cruz Bicycles House Grips.
• FRONT HUB: DT Swiss 370, 15x110, 28h.
• REAR HUB: DT Swiss 370, 12x148, XD, 36t, 28h.
• RIMS: RaceFace AR Offset 30 29" (f) 27.5" (r) Rims.
• CHAINGUIDE: OneUp Bash Guide.
• FRONT TIRE: Maxxis Assegai 29"x2.5" 3C MaxxGrip, EXO+, TR.
• REAR TIRE: Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO+, TR.
• SEALANT: Reserve Tubeless Sealant.
• SEATPOST: RockShox Reverb Stealth, 31.6.
• SADDLE: WTB Silverado Medium CroMo.

SIZE CHART

*PRO-M STORE OFFERS FREE BIKE PRE-ASSEMBLY SERVICE: SEATPOST, FORK, REAR DERAILLEUR AND BRAKES ARE ALREADY ASSEMBLED

ITEM NUMBER

192219251158 (Sz.MD - Color: Gloss Gypsum) / 192219251172 (Sz.LG - Color: Gloss Gypsum)
