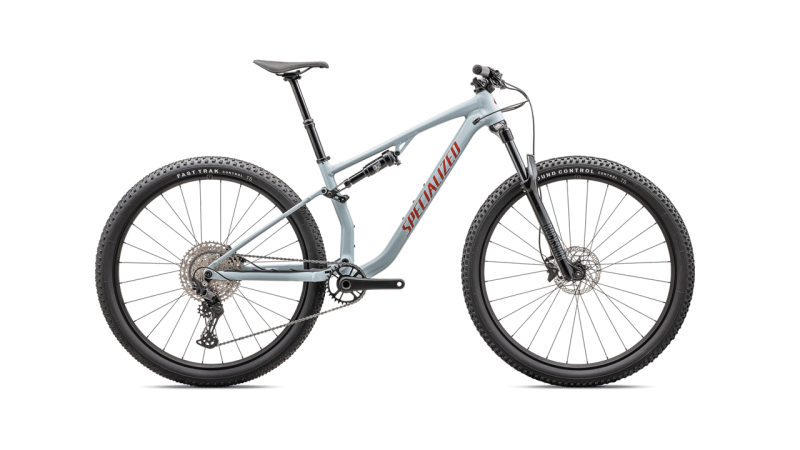

SPECIALIZED CHISEL SHIMANO BIKE

The Chisel is the lightest full-suspension alloy bike in the world. It’s 18.4% lighter than similar models in its category, and thanks to the suspension kinematics and geometry derived from its big sister, the Epic 8, the Chisel delivers outstanding performance on every ride.

SPEED METAL: Thanks to D'Aluisio Smartweld, the Chisel boasts the lightest XC aluminum frame in its class. Every tube in the frame is highly manipulated, with varying thicknesses and profiles, providing stiffness where needed, for efficiency, vibration absorption, optimal comfort, and control.

CAPABILITY: With Ride Dynamics-tuned 110mm travel suspension, the Chisel’s performance pedigree can be directly traced to the Epic 8, our World Cup race machine. The advanced suspension kinematics DNA of the Epic 8, along with Ride Dynamics-tuned suspension and progressive geometry refined on technical World Cup courses, are all present in the Chisel, making it more than capable of handling diverse terrains with confidence and speed.

SPECIALIZED CHISEL SHIMANO BIKE KEY FEATURES:

• Hydroformed D'Aluisio Smartweld frame, with Flip Chip to adjust geometry, 110mm travel.
• RockShox Recon fork, 120mm travel, with Motion Control Damper.
• X-Fusion shock, Ride Dynamics tuned.
• TranzX dropper post.

THE BIKE IS DELIVERED PRE-ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

FRAME

• Frame: Specialized D'Aluisio Smartweld M5 Alloy, Hydroformed tubes, Progressive XC Geometry, 110mm travel, internal cable routing, BSA BB, 12x148mm spacing, 30.9mm Dropper post compatible
• Seat Collar: Specialized Alloy, 34.9mm

COCKPIT

• Saddle: Body Geometry Power Sport, steel rails.
• Handlebar: Specialized Alloy, 20mm rise, 31.8mm, 760mm wide.
• Stem: Specialized, 3D-forged alloy, 4-bolt, 7-degree rise.
• Grips: Specialized Trail Grips.
• Dropper Post: TranzX, 30.9mm, XS: 100mm; S-M: 125mm; L-XL: 150mm.

SUSPENSION

• Rear Shock: X-Fusion PRO-02, 190x40mm, Ride Dynamics Tuned, Rebound adjust, Compression Adjust.
• Fork: Rockshox Recon Silver RL, 120mm travel, Motion Control damper, 42mm offset, Maxle Stealth, 15x110 thru-axle.

BRAKES

• Front Brake: Shimano M4100, 2-piston caliper, hydraulic disc, 180mm rotor.
• Rear Brake: Shimano M4100, 2-piston caliper, hydraulic disc, 160mm rotor.

DRIVETRAIN

• Chainring: 32t.
• Shifters: Shimano Deore, M6100, I-Spec EV, 12 speed.
• Rear Derailleur: Shimano Deore, M6100, 12-speed, Shadow Plus.
• Cassette: Shimano Deore M6100, 12-speed w/Hyperglide+, 10-51t.
• Chain: KMC X12EPT, 12-speed, anti-corrosion coating w/ reusable Missing Link™.
• Crankset: Alloy crankset, 1x direct mount chainring, 165/170/175mm.
• Bottom Bracket: BSA Bottom Bracket, PW-MBB73.

WHEELS & TIRES

• Spokes: Stainless, 14g.
• Rims: Specialized Alloy, Tubeless ready, 27mm inner width, disc, 28h.
• Front Hub: Shimano MT410-B, Centerlock 28h, 15x110 Boost.
• Rear Hub: Shimano MT410-B, Centerlock 28h, 12x148 Boost, Microspline.
• Front Tire: Specialized Ground Control, Control Casing, T5 Compound, 29x2.35.
• Rear Tire: Specialized Fast Trak, Control Casing, T5 Compound, 29x2.35.
• Tubes: Standard 40mm PV 29x1.75-2.4.

WEIGHT

• Weight: 13.73kg (30 lb, 4.3 oz).
• Measured Size: MD.

*PRO-M STORE OFFERS FREE BIKE PRE-ASSEMBLY: DROPPER POST, FORK, DERAILLEUR, AND BRAKES ARE ALREADY INSTALLED
