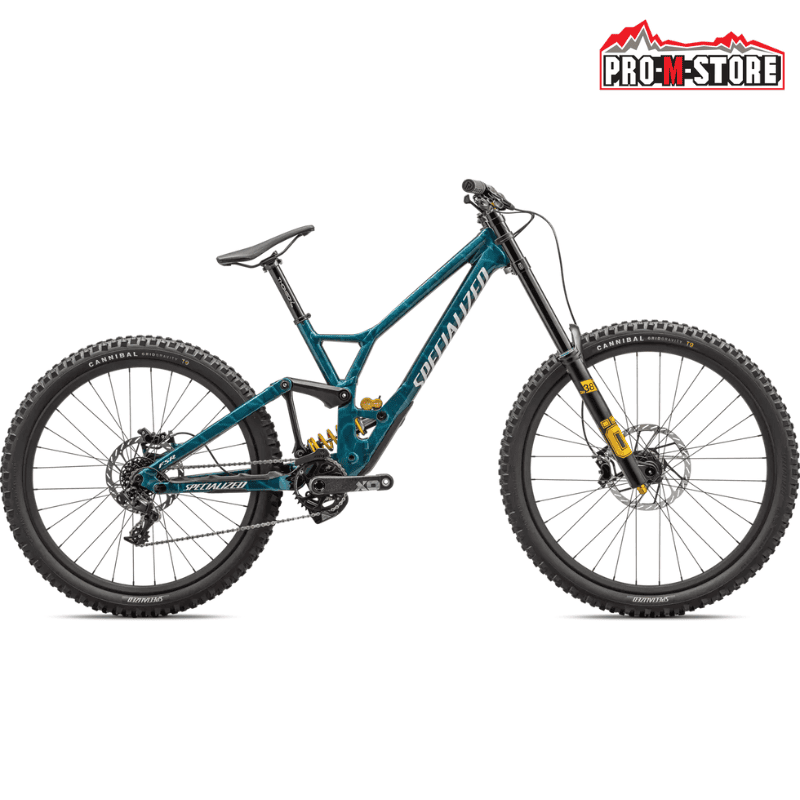

SPECIALIZED DEMO RACE 2024 BIKE

Total speed has always been the Demo's goal, and with the Demo Race, it's no different. Introducing a new flexible frame design that allows riders to take advantage of a 29-inch front wheel and a 27.5-inch rear wheel, it's a special blend that has been tested by World Champion Loïc Bruni in search of the perfect balance between traction and maneuverability, but was only approved by the UCI last year. Not that it stopped the Demo Race from winning both the Downhill World Championship and the overall World Cup title in its first season...

Now, we offer that same winning combination straight out of the box, with an adjustable rear end that still allows you to switch between 27.5 and 29-inch wheel sizes based on terrain and riding style, while also adjusting for chainstay length and bottom bracket height.

Blazing fast on tough tracks, the Demo Race suspension design has been developed around a more rearward axle path that reduces rear-wheel hang-up, increasing speed instead.

Top-quality Öhlins suspension takes advantage of the most proven suspension kinematics on the World Cup circuit, and SRAM's DH-specific X01 drivetrain has you covered from the start gate to the finish line.

SPECIALIZED DEMO RACE 2024 BIKE MAIN FEATURES:

• The M5 alloy Demo Race frame is fully optimized to take advantage of the traction benefits of a 29-inch front wheel and the increased maneuverability of a 27.5-inch rear wheel, while still allowing you to change the rear wheel size to suit different terrains and riding styles with an adjustable rear end that ensures perfect chainstay length and bottom bracket height regardless of hoop size.
• The Öhlins TTX22M.2 coil shock is designed to handle the most challenging World Cup Downhill tracks, offering external low-speed compression and rebound adjustment, while the Trunnion mount provides extra bushing overlap for increased durability.
• With superb small bump tracking and the ability to absorb landings from even the heftiest drop-offs, the Öhlins DH38 m.1 fork's 200 millimeters of travel will give you smoother, faster, and more secure descent feelings than anything you've ridden before.

*THE BIKE IS DELIVERED PRE-ASSEMBLED BY US

TECHNICAL SPECIFICATIONS

FRAME

• FRAME: M5 alloy, Style-Specific DH Geometry, horst pivot flip chip for 27.5 or 29 rear wheel, BSA threaded BB, full internal cable routing with option for full external brake, 148mm rear spacing, sealed cartridge bearing pivots, replaceable derailleur hanger, 200mm of travel.
• SEAT COLLAR: Alloy, 34.9mm.

SUSPENSION

• FORK: Öhlins DH38 M.1 29, TTX Twin Tube Damping, external low-speed rebound adjust, external high and low-speed compression adjustment, 20x110mm, 58mm offset, 200mm of travel.
• REAR SHOCK: Öhlins TTX 22 M Coil, external rebound adjust, external high and low-speed compression adjustment, Trunnion mount, 225x75.

COCKPIT

• SEAT: Body Geometry Henge DH, hollow titanium rails, 130mm.
• GRIPS: Deity, Lockjaw.
• HANDLEBARS: Renthal Fatbar 35, 5-degree upsweep, 7-degree backsweep, 30mm rise, 800mm, 35.0mm.
• STEM: Renthal Integra 35mm Direct Mount Stem, 45mm length.
• SEATPOST: Thomson, alloy, straight, 12-degree clamp.

BRAKES

• FRONT BRAKE: SRAM Code RSC, 4-piston caliper, hydraulic disc, 220mm HS2.
• REAR BRAKE: SRAM Code RSC, 4-piston caliper, hydraulic disc, 200mm HS2.

DRIVETRAIN

• BOTTOM BRACKET: SRAM DUB, 83mm.
• REAR CASSETTE: SRAM X01 DH, 7-speed, 10-24t.
• REAR DERAILLEUR: SRAM X01 DH, 7-speed, trigger.
• CRANKSET: SRAM X01 DH, DUB, carbon, Direct mount ring, 165mm.
• SHIFTER: SRAM X01 DH, trigger, 7-speed.
• CHAIN: Sram PC1130 w/ Powerlink, 11-speed.
• CHAINRING: 34T.

WHEELS & TIRES

• RIMS: Roval Traverse Gravity Alloy 29" / 27.5", 32h alloy rim, 28mm inner rim width.
• FRONT HUB: DT Swiss 350 hub, 20x110mm.
• FRONT TIRE: Cannibal, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3".
• REAR TIRE: Cannibal, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.3".
• SPOKES: Sapim D-Light.
• REAR HUB: DT Swiss 350 hub, 12x148mm.
• TUBES: Standard, Presta.

WEIGHT

• WEIGHT: 17.56kg (38 lb, 11.4 oz).
• WEIGHT MEASURED: S3.
