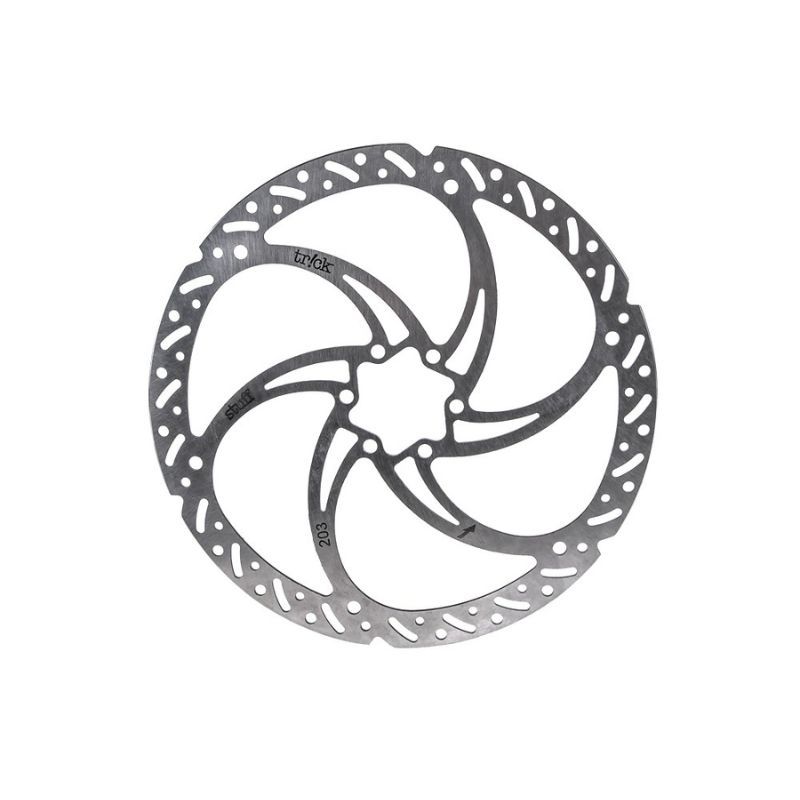

TRICKSTUFF DÄCHLE HD 203 HEAVY-DUTY BRAKE DISC

Trickstuff brake discs have been the first choice for many years when it comes to handling particularly high braking loads. The proven friction ring with its special arrangement of holes successfully counters the dreaded glazing of the pads. The new brake discs also feature a roof-shaped bevel (Dächle) on the outer circumference, which greatly simplifies the rotor installation, as the rounded bevel makes it easier to insert the brake disc into the caliper. Additionally, the friction ring has a larger amount of material compared to most current brake discs. The heat generated during braking must be primarily absorbed by the brake disc and then released into the ambient air. Thanks to the presence of more material, the new Trickstuff discs ensure worry-free braking on long descents and continuous braking and are the ideal complement for all current super-light brake calipers.

Trickstuff guarantees an extremely precise disc thickness of plus/minus 0.005 millimeters, with a final dimension of 2.05 millimeters. A particularly high-quality stainless steel is used, which is hardened at 1,100 degrees Celsius and has a hardness of at least 36 HRC. The discs deform less when exposed to heat, are mechanically very stable, and have an extraordinarily long lifespan.

 TRICKSTUFF DÄCHLE HD 203 HEAVY-DUTY BRAKE DISC MAIN FEATURES:

• Diameter: 203 mm
• Thickness: 2.05 mm
• Mounting: 6 holes (ISO 2000)
• Material: stainless steel

ARTICLE CODE

BKDSH20IN0000S
