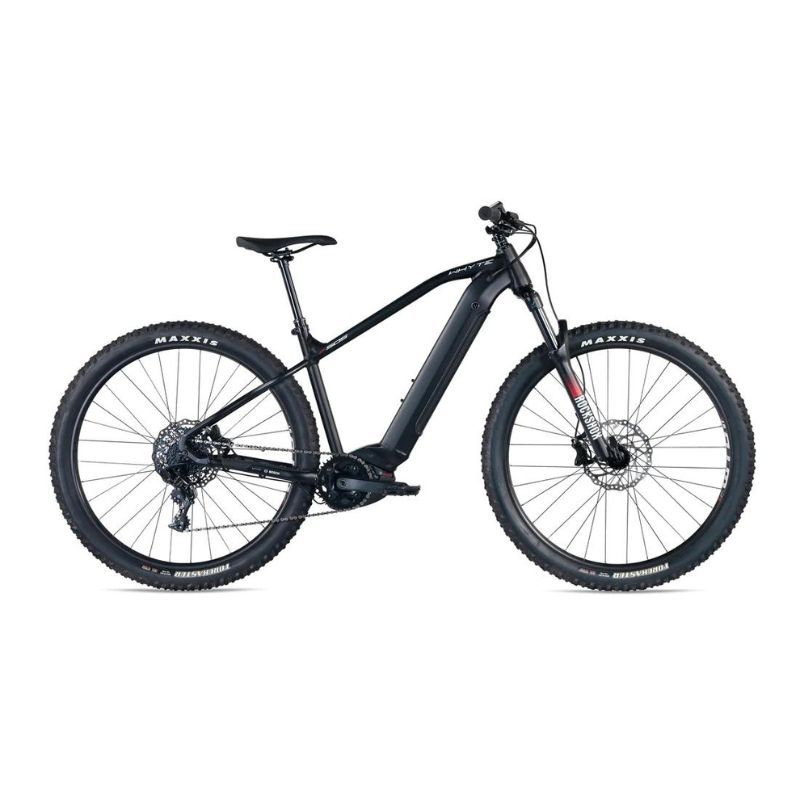

WHYTE E-505 BIKE

Stylishly rugged looks and high-quality "real off-road" components make the E-505 the Land Rover Defender of e-bikes. Whether you want to ride with friends, keep fit and healthy, explore the countryside or get your blood pumping by pushing your limits, the E-505 is the perfect off-road companion to do it all.
This bike has all of Whyte's knowledge of hardtail mountain bike geometry and adds a powerful and reliable Bosch motor, battery, and controls to give you a wide range of daily uses, from trail to commuting, or both in a single day, along with an inspiring feeling of confidence to ride.
The bike mounts powerful Bosch motor that will get you to the top of the mountain with ease, and the Purion display on the handlebars will clearly tell you how far you still have to ride and explore. Smart motor modes provide the best possible range from the large 500Wh battery for hours of adventure.
The bike is super easy to ride, regardless of your experience, as it mounts large 29-inch, wide rims and high-volume Maxxis 29x2.6-inch tires to provide great off-road grip and comfort.Rock Shox suspension and Sram shifters are super easy to use while four-piston disc brakes ensure safety in any situation.The bike is equipped with a telescopic seatpost to lower/raise the seat height when you prefer.

WHYTE E-505 BIKE MAIN FEATURES:

• Light and strong 6061 T-6 aluminum frame.
• Powerful and reliable Bosch Performance Line CX motor with 85 Nm.
• Removable Bosch PowerTube 500Wh large-capacity battery.
• Sliding 29" wheels.
• High-volume Maxxis tires.
• Fast and durable 1x11 SRAM shifters (36T chain x 11-42T cassette).
• Powerful four-piston hydraulic disc brakes for reliable all-weather braking.

THE BIKE IS DELIVERED PRE-ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

• FRAME: 6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Custom Drawn, Tapered Headtube, Internal Cable Routing for Dropper Post and 12mm X 148mm Boost Dropouts.
• CHAIN: KMC NPBK Sport, 11 Speed
• FORK: RockShox 35 Silver TK 29", 120mm Travel, 44mm Offset, DebonAir, Fast Black Coating, Adjustable Compression and Rebound, Tapered Steerer, 110mm x 15mm Boost, Maxle Lite.
• CRANKSET: Whyte, Steel narrow/wide, 165mm, Direct Mount 36T for Bosch Performance Line CX, Black.
• SHOCK: N/A.
• BOTTOM BRACKET: N/A.
• HEADSET: FSA No. 57B Orbit ZS, 1 1/2" Lower and 1 1/8" Upper Caged Bearings.
• SEATPOST: Whyte drop.it, 30.9, 150mm Travel, Paddle Remote Lever.
• REAR HUB: Alloy, e-bike specific, Double Sealed Cartridge Bearings, 12mm x 148mm Boost Thru Axle, 32 Hole. SELLA: Whyte Custom, Triple Panel Design.
• FRONT HUB: Alloy, Double Sealed Cartridge Bearings, 15mm x 110mm Boost Thru Axle, 31mm Torque Caps, 32 Hole. MANUBRIO: Whyte 6061 Alloy, 30mm Rise, 31.8mm, 780mm Wide.
• SPOKES: DT Swiss Champion 2.0mm, Black Stainless, Brass Nipples STEM Whyte Alloy 6061, 35mm Extension.
• RIMS: WTB ST i30 TCS 2.0 System, Pinned Joint, Tubeless Ready, 32 Hole.
• GRIPS: Whyte Lock-on V Grip.
• TIRES: Maxxis Forekaster TR 29" x 2.6" 60TPI, EXO Sidewall Protection.
• FRONT BRAKE: Tektro Orion, 4-Piston with Sintered Metal Pads, 200mm Disc, Post Mount.
• SHIFT LEVER: SRAM GX, 11 Speed.
• REAR BRAKE: Tektro Orion, 4-Piston with Sintered Metal Pads, 200mm Disc, Post Mount, Internal Routing.
• BRAKE LEVER: Tektro Orion.

SIZE CHART

*PRO-M STORE OFFERS FREE BIKE PRE-ASSEMBLY SERVICE: SEATPOST, FORK, REAR DERAILLEUR AND BRAKES ARE ALREADY ASSEMBLED

ITEM NUMBER

AWE5052MV1 (Sz.M - Color: Grey Rose) / AWE5053LV1 (Sz.L - Color: Grey Rose)
