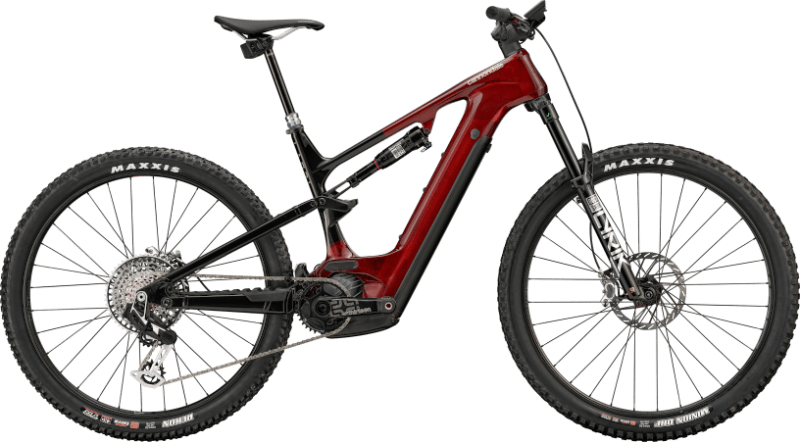

CANNONDALE MOTERRA NEO LAB71 BIKE

The CANNONDALE MOTERRA NEO LAB71 BIKE is an ultra premium mount e-mtb with more powerful Bosch motor. The level of e-MTB performance achieved by the Moterra Neo LAB71 is unmatched. The bike is optimized for trails and has superb assembly and high attention to detail and performance. The SRAM XX drivetrain and Zipp 3Zero Moto wheels are just the beginning.
It features the Bosch Race engine, the lightest and most powerful Bosch engine, and the exclusive Race mode increases thrust by up to 400%. Our size-specific Proportional Response suspension and geometry take e-MTB performance to the next level, and the LAB71 version takes it to unthinkable levels.
The Bosch Performance Line CX Race drive unit is light and powerful, weighing just 2.8kg and can deliver up to 85nm of torque and increase pedaling power by up to 400%.
The 750wh battery is the largest battery Bosch has ever produced and range anxiety is a thing of the past. The battery can be recharged either directly on the bike or easily removed and recharged at home.

CANNONDALE MOTERRA NEO LAB71 BIKE MAIN FEATURES:

• Carbon fiber frame with 150mm Proportional Response suspension for exceptional handling.
• The fastest and most powerful Bosch motor, the CX Race, and a huge 750 Wh battery for limitless performance.
• SRAM XX AXS wireless drivetrain with Code Ultimate Stealth 4-piston disc brakes.
• RockShox Lyrik Ultimate 150mm fork, Zipp 3Zero Moto carbon wheels and Reverb wireless dropper seatpost.

THE BIKE IS DELIVERED PRE-ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

FRAMESET

• FRAME: Lab71 Edition Full Carbon Front Triangle, SmartForm C1 Alloy Swingarm, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH hanger, post mount brake, 1.5” – 1.8” tapered headtube, 18mm two-bolt kickstand mount.
• FORK: RockShox Lyrik Ultimate, Charger 3, 150mm, DebonAir, 15x110mm thru-axle, tapered steered, 42mm offset.
• HEADSET: Acros, integrated, 1-1/8 to 1.8", sealed bearings.
• SHOCK: RockShox Deluxe Select +, DebonAir, 2-Pos mode adjust, adjustable rebound.

E-SYSTEM

• MOTOR: Bosch Performance Line CX Race.
• BATTERY: Bosch PowerTube, 750Wh.
• CHARGER: Bosch 4A.
• DISPLAY: Bosch Kiox 300 w/ LED remote.

DRIVETRAIN

• SHIFT: SRAM XX Eagle AXS T-Type.
• SHIFT LEVER: SRAM AXS T-Type Ultimate Pod Controller.
• CHAIN: SRAM XX Eagle T-Type, Flattop.
• CRAKSET: E*THIRTEEN E*Spec Race Carbon, 160mm, 34T.
• SPROCKET: SRAM XX Eagle T-Type, 10-52, 12-speed.

BRAKES

• BRAKES: SRAM Code Ultimate Stealth 4-piston hydraulic disc, 220/200mm rotors.
• BRAKE LEVER: SRAM Code Ultimate Stealth hydraulic disc, carbon levers.

WHEELS

• RIMS: Zipp 3Zero Moto, carbon, 32h, 30mm inner width, 37.5mm outer width, 29" (27.5 rear, size small).
• SPOKES: Zipp 3Zero Moto.
• TIRE SIZE: 2.6.
• WHEEL SIZE: 29.
• HUBS: (F) Zipp ZM2, 15x110mm thru-axle / (R) Zipp ZM2, 12x148mm thru-axle.
• TIRES: (F) Maxxis Minion DHF, 29x2.6", EXO, tubeless ready / (R) Maxxis Rekon, 29x2.6", (size Small - 27.5x2.6") EXO, tubeless ready.

COMPONENTS

• HANDLEBAR: HollowGram SAVE riser bar, Carbon, 35mm clamp, 30mm rise, 8° sweep, 5° rise, 780mm.
• STEM: Cannondale, 3D Forged 6061 Alloy, 1-1/8", 35.0, internal cables.
• GRIPS: Cannondale TaperRidge.
• SADDLE: Cannondale Scoop Shallow Race, Ti rails.
• SEATPOST: SRAM Reverb AXS, 31.6, 125mm (S), 150mm (M), 170mm (L-XL).

SIZE CHART

*PRO-M STORE OFFERS FREE BIKE PRE-ASSEMBLY SERVICE: SEATPOST, FORK, REAR DERAILLEUR AND BRAKES ARE ALREADY ASSEMBLED

ITEM NUMBER

C65023U10MD (Sz.MD - Color: Tinted Red)
