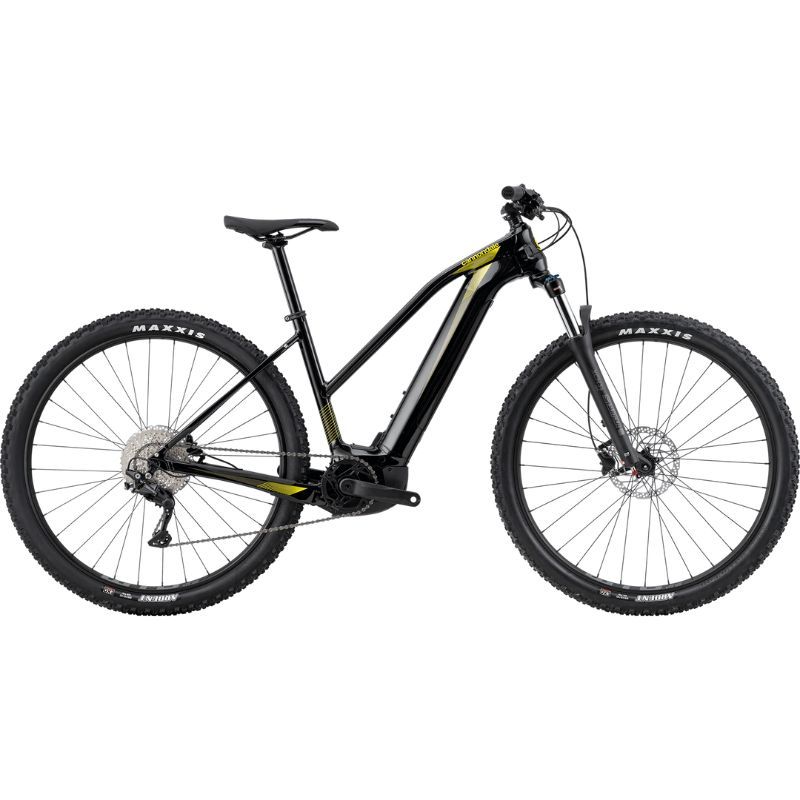

CANNONDALE TRAIL NEO 3 REMIXTE BIKE

The CANNONDALE TRAIL NEO 3 BICYCLE is a lightweight, stiff, responsive and snappy e-mtb on any terrain. The perfectly integrated Bosch frame and drive unit are born from Cannondale's long and unparalleled experience in aluminum machining.
The low, short chainstays offer maximum agility, handling, traction and control while the open steering angle offers maximum stability. The battery and drive unit are placed as centrally and low as possible to give maximum agility and stability.
The bike mounts the powerful Bosch Performance CX drive unit with the powerful 500wh PowerTube battery and provide all the power and range needed to tackle any terrain. The 75nm torque enables effortless acceleration and pedaling for long hours.
The frame is made of high-quality C1 aluminum and is lightweight, rigid and strong. The smaller sizes of this bike allow for 27.5 wheels while the larger sizes mount 29 wheels. In this way all riders are assured the same perfect mix of trim, speed and fun.
The Offset Ai transmission makes the rear triangle more open ensure even more room for tires and keeping the chainstays low to ensure exceptional agility.The rear wheel, in this way, is even stiffer and stronger.Bosch's Si motor mount positions the drive unit lower and forward on the frame-this keeps the center of gravity low and keeps the chainstays short for an even more agile ride.

CANNONDALE TRAIL NEO 3 REMIXTE BIKE MAIN FEATURES:

• Premium SmartForm C1 alloy frame with 100 mm travel fork / Low-step "Ride-Easy" geometry.
• Shimano Deore 10-speed groupset with hydraulic disc brakes.
• Bosch Performance Line CX motor/500 Wh battery/Purion display/up to 78 km range.

THE BIKE IS DELIVERED PRE-ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

FRAMESET

• FRAME: SmartForm C1 Alloy, Low-step Ride-Easy geometry, removable downtube battery, SAVE, tapered headtube, internal cable routing, Ai offset drivetrain, 148x12mm thru-axle, post mount disc, KickFlip hidden kickstand mount, skid plate, rack/fender mounts.
• FORK: SR Suntour XCM 34 Boost, 100mm, Coil, 46mm offset.
• HEADSET: Integrated Sealed Bearing, Tapered.

E-SYSTEM

• MOTOR: Bosch Performance Line CX.
• BATTERY: Bosch PowerTube, 500Wh.
• CHARGER: Bosch 2A.
• DISPLAY: Bosch Purion.

DRIVETRAIN

• SHIFTER: Shimano Deore M4100.
• SHIFT LEVER: Shimano Deore M4100, 10-speed.
• CHAIN: Shimano HG54, 10-Speed.
• CRANKSET: FSA Bosch E-Bike w/ custom Ai offset, 34T.
• COGS: Shimano Deore, 11-42, 10-speed.

BRAKES

• BRAKES: Shimano MT200 hydraulic disc, 180/180mm RT10 rotors.
• BRAKE LEVER: Shimano MT200 hydraulic disc.

WHEELS

• FRONT HUB: Shimano MT400, 15x110mm thru-axle.
• REAR HUB: Shimano MT400, 12x148mm thru-axle.
• RIMS: WTB STX i25 TCS, 32h, tubeless ready.
• SPOKES: DT Swiss Champion.
• TIRE SIZE: 2.4.
• WHEEL SIZE: 29.
• TIRES: Maxxis Ardent, 29x2.4", Wire 60TPI Exo.

COMPONENTS

• HANDLEBAR: Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm.
• STEM: Cannondale 3, 6061 Alloy, 31.8, 0°.
• GRIPS: Fabric Funguy.
• SADDLE: Cannondale Ergo XC.
• SEATPOST: Cannondale 4, 6061 Alloy, 31.6x350mm.

*PRO-M STORE OFFERS FREE BIKE PRE-ASSEMBLY SERVICE: SEATPOST, FORK, REAR DERAILLEUR AND BRAKES ARE ALREADY ASSEMBLED

ITEM NUMBER

C61301U10MD (Sz.MD - Color: Black)
