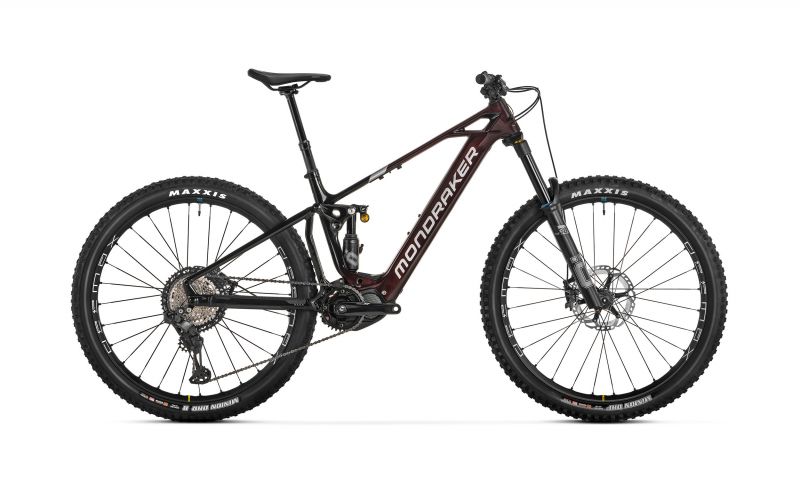

MONDRAKER CRUSHER RR BIKE

The CRUSHER RR mountain bike is the perfect choice for cycling adventure lovers. With its red translucent carbon frame, this bike combines exceptional performance with captivating style. Designed to tackle rough terrain and challenging trails, it offers the power and precision needed to dominate every descent and conquer every climb.

MONDRAKER CRUSHER RR BIKE MAIN FEATURES:

• Red translucent carbon frame for excellent strength and lightness.
• High-performance suspension for superior control on uneven terrain.
• High-quality transmission for precise and smooth gear shifts.
• Powerful brakes for optimal safety on descents.

THE BIKE IS DELIVERED PRE-ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

• FRAME: Crusher Stealth Air Carbon front triangle, Stealth Alloy rear triangle, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, integrated internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
• SIZES: S: 380mm / M: 420mm / L: 450mm / XL: 490mm.
• REAR SHOCK: Öhlins TTX Air 205X65mm. Settings: high-speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 25x10mm bottom bushings.
• REAR SHOCK ADJUSTMENT: C20 compression, R35 rebound. Volume reducers 12.000 (2xF+1D).
• FORK: Öhlins RXF 38 M.2 29, 160mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high-speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber.
• HEADSET: Acros AZF-601 R1 Block Lock 120°, ZS44/28.6 top, ZS56/40 bottom.
• STEM: Onoff Krypton FG 30mm, CNC, 31.8mm barbore.
• HANDLEBAR: Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore.
• GRIPS: Onoff Desert, 1lock-on, 135mm.
• SEATPOST: Onoff Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm + SHIMANO SL-MT800-IL lever.
• SADDLE: FIZIK Terra Aidon X5 145mm.
• FRONT BRAKE: Shimano Deore XT M8120, 4-piston caliper, MT-800 Ice-Tech 203mm Center Lock.
• REAR BRAKE: Shimano Deore XT M8120, 4-piston caliper, MT-810 Ice-Tech 203mm Center Lock.
• BRAKE LEVERS: Shimano Deore XT M8120.
• RIMS: Mavic E-Deemax S 29, 30mm internal width, Maxtal welded, PFP, tubeless, 28 spokes.
• SPOKES: Mavic straight-pull double butted, contactless lacing.
• FRONT HUB: Mavic, Boost 15x110mm, Center Lock.
• REAR HUB: Mavic, Boost 12x148mm, ID360 Ratchet system, Center Lock, MS freehub.
• FRONT TIRE: Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead.
• REAR TIRE: Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead.
• CRANKSET: Shimano Steps XT FC-8150 ebike, 165mm.
• CHAINRING: Shimano EP801, 34T, 104 BCD.
• CHAIN: Shimano Deore XT M8100.
• REAR DERAILLEUR: Shimano Deore XT M8150-GS Di2 12s shadow plus, direct mount.
• SHIFT LEVER: Shimano XT Di2 SW-M8150.
• CASSETTE: Shimano Deore XT M8100, 10-51 12s.
• DROPOUT: Mondraker M068.
• WEIGHT: 23.4 kg.
• DISPLAY: Shimano EN600.
• MOTOR: Shimano STEPS EP801.
• BATTERY: Simplo internal 720Wh G3.

*PRO-M STORE OFFERS FREE BIKE PRE-ASSEMBLY SERVICE: SEATPOST, FORK, DERAILLEUR, AND BRAKES ARE ALREADY MOUNTED
