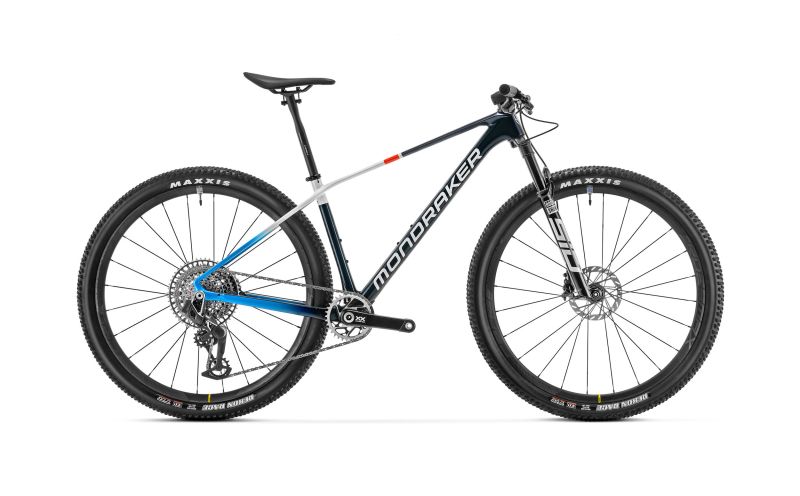

MONDRAKER PODIUM RR SL BIKE

The PODIUM CARBON remains the series bike with the lightest frame ever made. The STEALTH AIR FULL CARBON technology allows us to optimize every point of the frame to withstand the fatigue of a top-level hardtail with the least possible weight. Not surprisingly, it is the bike with which the members of the PMX Racing Team compete in World Cup races where conditions do not require a rear suspension like the F-PODIUM DC. Furthermore, its absorption due to the arrangement of the carbons and its rigidity are optimal. If we add to this the Mavis Crossmax Carbon SL Ultimate wheels and the SRAM XX1 AXS wireless transmission, we are facing a jewel.

MONDRAKER PODIUM RR SL BIKE MAIN FEATURES:

• 29" Wheels.
• Forward Geometry.
• Stealth Carbon.

THE BIKE IS DELIVERED PRE-ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

• FRAME: Podium 29 Stealth Air Carbon, XC Forward Geometry, BSA bottom bracket, tapered head tube, HHG internal cable routing, Boost 12x148mm rear axle, dedicated 1X drivetrain design, Flatmount brake compatible.
• SIZES: S: 390mm / M: 420mm / L: 470mm / XL: 510mm.
• FORK: Rockshox SID SL Ultimate RL 2P Remote 29, 100mm, Charger Race day, DebonAir, tapered steerer tube, Boost 15x110mm axle, 32mm aluminum stanchions, offset 44mm. Settings: OneLock 2 position remote compression (open/lock), low-speed rebound, air preload.
• REMOTE FORK CONTROL: RockShox TwistLoc Ultimate FullSprint 125 B1 2 Position (10mm), Twist to lock, Twist to unlock.
• HEADSET: Onoff Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8x30.5x8x45°x45°, bottom 51.9x40x8x45°x45°.
• HANDLEBAR STEM: OnOff Integrated Carbon Handlebar, width: 760mm, 8° Backsweep, 0° Upsweep, S size: 55mm length, -12° rise, M size: 65mm length, -14°, L size: 75mm length, -15° rise, XL size: 75mm length, -15° rise.
• GRIPS: LIZARD DSP 30.3.
• SEATPOST: Onoff Helium Carbon 0-R VFLEX, diameter 27.2mm, length 400mm.
• FRONT BRAKE: Sram Level Ultimate 2P Stealth, 2 piece caliper, HS2 160mm IS 6 bolts one-piece rotor, steel-backed organic pad, titanium hardware.
• REAR BRAKE: Sram Level Ultimate 2P Stealth, flatmount 2 piece caliper, HS2 160mm IS 6 bolts one-piece rotor, steel-backed organic pad, titanium hardware.
• BRAKE LEVERS: Sram Level Ultimate, tools-free reach adjust, lever pivot bearings, carbon lever.
• RIMS: Mavic CrossMax Carbon SL Ultimate 29, 25mm internal width, hookless, tubeless ready, 24 spokes.
• SPOKES: Mavic straight-pull double butted, contactless lacing.
• FRONT HUB: Mavic, Boost 15x110mm, IS 6 bolts.
• REAR HUB: Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts, XD freehub.
• FRONT TIRE: Maxxis Rekon Race 29x2.35, EXO protection, tubeless ready, 120TPI, folding bead.
• REAR TIRE: Maxxis Rekon Race 29x2.35, EXO protection, tubeless ready, 120TPI, folding bead.
• CRANKSET: Sram XX SL Carbon Eagle T-Type, Boost, DUB axle, Direct mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL 55.
• CHAINRING: 34T, CNC-machined alloy, X-SYNC 2.
• BOTTOM BRACKET: Sram DUB BSA, sealed bearings, 73mm.
• CHAIN: Sram XX SL Eagle T-Type, 12s, Powerlock.
• REAR DERAILLEUR: Sram XX SL Eagle AXS, T-Type roller bearing clutch, cage lock, long carbon cage, 1x12s.
• SHIFTER: Sram Eagle AXS Pod Ultimate, 12s.
• REAR COGS: Sram XG-1299, 10-52T, T-Type, 12s.
• WEIGHT: 8.8 kg.

*PRO-M STORE OFFERS FREE ASSEMBLY SERVICE FOR THE BIKE: SEATPOST, FORK, GEARSHIFT, AND BRAKES ARE ALREADY ASSEMBLED
