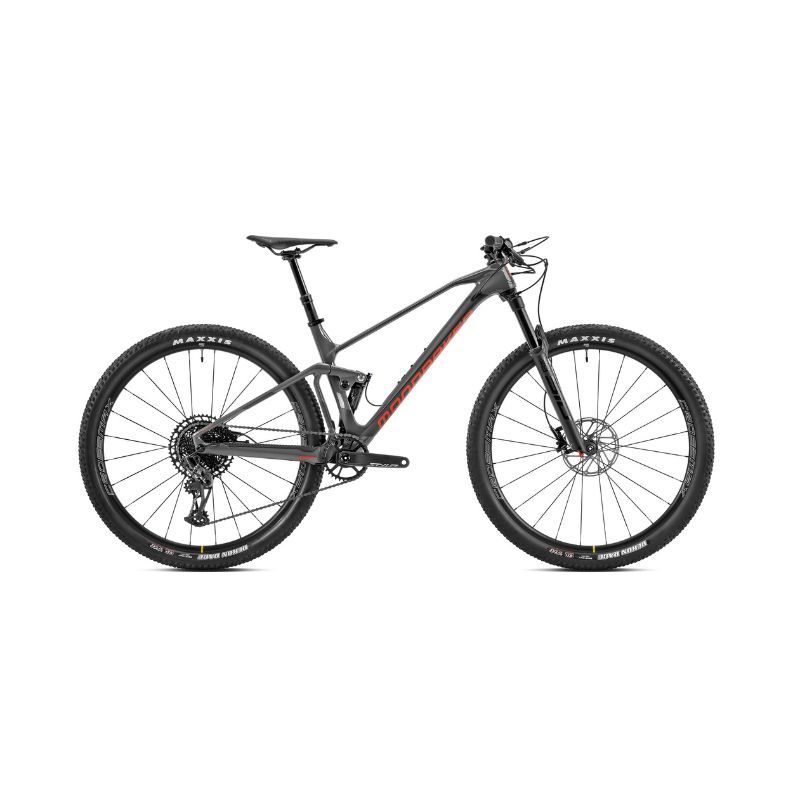

MONDRAKER F-PODIUM CARBON DC BIKE

The MONDRAKER F-PODIUM CARBON DC BIKE is perfect for cross-country riding with 115mm rear suspension travel to overcome the adversity presented by today's XC circuits. The F-PODIUM DC is one of the benchmark cross-country bikes around the world.

MONDRAKER F-PODIUM CARBON DC BIKE MAIN FEATURES:

• 29" wheels
• Zero suspension system.
• Forward geometry.
• Stealth Carbon.

THE BIKE IS DELIVERED PRE-ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

• FRAME: F-Podium 29 Stealth Air Full Carbon, XCO-optimized Zero Suspension system, 115 mm, XC Forward Geometry, one-piece carbon top link, BSA bottom bracket, tapered head tube, HHG internal cable routing, dedicated 1X drivetrain design, Boost 12x148 mm rear axle, damped fender, Post Mount rear brake stem.
• SIZES: S: 390 mm / M: 420 mm / L: 470 mm / XL: 510 mm.
• SHOCK: Rockshox SID Select+ RLR Debonair, 185x50 mm. Settings: remote TwistLock 2-position compression (open/locked), low-speed rebound, air preload. Trunnion upper linkage, 22.2x10 mm lower bushings.
• SHOCK SETTINGS: Light compression, medium return, Lockout 430, 1 Token.
• FORK: Rockshox SID SL Base RL 29, 120 mm, Debonair, tapered head tube, 15x110 mm Boost pivot, 35mm aluminum tapered headset outer tubes, 44 mm offset. Settings: compression.
• FORK CONTROL: RockShox OneLoc.
• HEADSET: Acros AZX-239 R1 Block Lock, ZS44/28.6 upper, ZS56/40 lower.
• STEM: MDK, 6061 T6 alloy, 31.8 mm barbore, rise: +/-5º, length: sizes S/M: 50 mm, size L: 60 mm, size XL: 70 mm.
• HANDLEBARS: ONOFF Sulphur 0.2, double-thickness 6061 alloy, rise: 4.8 mm, width: 760 mm, backsweep 9º, upsweep 0º, barbore 31.8 mm.
• GRIPS: ONOFF Twin, 1lock-on, 135 mm.
• SEATPOST: ONOFF Pija internal telescopic seatpost, diameter 31.6 mm, size S: 405x95-125 mm, size M: 458x120-150 mm, size L: 498x140-170 mm, size XL: 498x140-170 mm.SADDLE: Fizik Antares R7.FRONT BRAKE: Sram Level T, 2-piece caliper, Centerline 180 mm one-piece brake disc with 6 IS bolts, organic pads with steel back.
• REAR BRAKE: Sram Level T, 2-piece caliper, Centerline 160 mm one-piece brake disc with 6 IS bolts, steel-backed organic pads.
• BRAKE LEVERS: Sram Level T, Direct Link actuation, lever opening adjustment with tools, lever pivot bushings.RIMS: Mavic Crossmax 29, 25 mm inner width, welded rim, hookless, tubeless ready, 24 spokes.SPOKES: Mavic straightpull double-thickness, contactless tacking (lacing).
• FRONT HUB AXLE: Mavic, Boost 15x110 mm, 6-bolt IS.
• REAR HUB AXLE AXLE: Mavic, Boost 12x148 mm, ID360 ratchet system, 6 IS bolts.
• FRONT TIRE: Maxxis Rekon Race 29x2.4, EXO protection, tubeless ready, 120TPI, folding rim.
• REAR TIRE: Maxxis Rekon Race 29x2.4, EXO protection, tubeless ready, 120TPI, folding bead.
• CRANKSETS: Truvativ Stylo 6K Eagle, 12s, Boost, DUB axle, direct-mount crown, size S: 170mm, size M/L/XL: 175mm.CRANKSET: 34T, steel, X-Sync 2.
• BOTTOM BRACKET: Sram DUB BSA, sealed bearings, 73 mm.
• CHAIN: Sram SX Eagle, 12s, Powerlock.
• REAR DERAILLEUR: Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1.
• REAR DERAILLEUR CONTROLS: Sram Trigger SX Eagle, 12s, X-Actuation 1:1.
• SPROCKET CASSETTE: Sram XG-1230, 11-50T, 12s.
• FORK: Sram UDH.
• WEIGHT (WITHOUT PEDALS): 12.6 kg.

*PRO-M STORE OFFERS FREE BIKE PRE-ASSEMBLY SERVICE: SEATPOST, FORK, REAR DERAILLEUR AND BRAKES ARE ALREADY ASSEMBLED

ITEM NUMBER

010.23061 (Sz. S - Color: Grey Red) / 010.23062 (Sz. M - Color: Grey Red) / 010.23063 (Sz. L - Color: Grey Red) / 010.23064 (Sz. XL - Color: Grey Red)
