BICI MONDRAKER DUNE RR

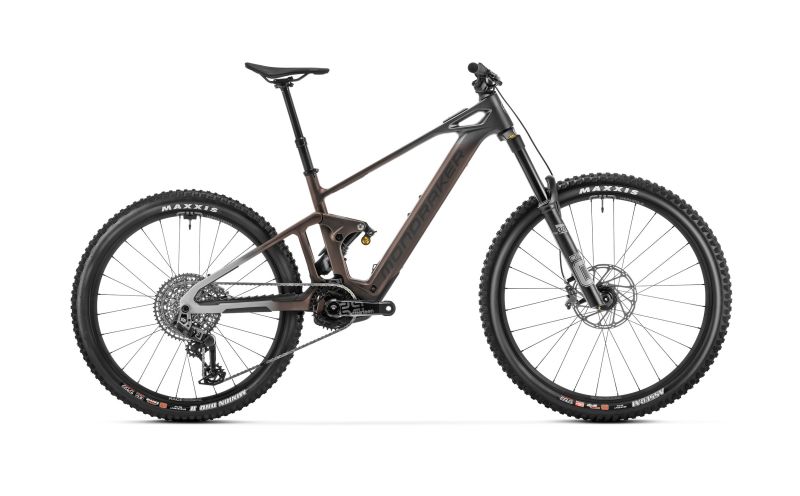

MONDRAKER DUNE RR BIKE

Cod. 51099394

from 9,499.01

delivery with carrier dhl o gls

Free shipping for orders over 49 € (UE Countries). Free shipping to Extra-Ue countries from 89 €


complete your choice

    MONDRAKER DUNE RR BIKE

    Frame

    Stealth Air full Carbon, optimized Zero Suspension System, Mullet, 165 mm travel, Forward Geometry, internal battery, Boost 12x148 mm rear axle, tapered head tube, one-piece upper link, HHG internal cable routing, MAX load capacity sealed bearings, oversized 15 mm axles, exclusive plastic motor covers.

    Sizes

    S: 380 mm / M: 420 mm / L: 450 mm / XL: 490 mm

    Shock

    Öhlins TTX Air 205X65 mm. Adjustments: high-speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion mount upper, 30x8 mm lower bushings.

    Shock Adjustment

    Compression C10, rebound R20. Flow reducers 12,000 (2xF+1D).

    Fork

    Öhlins RXF 38 M.2 29, 170 mm, TTX18 Twin Tube cartridge, tapered steerer, Boost 15x110 mm axle, 44 mm offset. Adjustments: high-speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber.

    Components

    ComponentSpecifications
    Headset Custom Acros IS52/ZS56, 1-1/8" to 1.5" steerer tube, internal cable routing, blocklock-free seals
    Stem ONOFF S6 30 mm 0º, forged alloy 6061 + CNC, barbore 31.8 mm
    Handlebar ONOFF S6 1.0 alloy 7050, rise: 25 mm, width: 800 mm, backsweep 8º, upsweep 5º, barbore 31.8 mm
    Seatpost ONOFF Pija internal dropper, diameter 31.6 mm, 1X remote lever with bearing
    Brakes Sram Code Bronze Stealth, oversized 4-piston caliper, one-piece Centerline 200 mm rotor
    Wheels e*thirteen Grappler Race, Hookless 6069, 30 mm internal width
    Tires Maxxis Assegai 29x2.5WT (front), Maxxis Minion DHR II 27.5x2.5WT (rear)
    Drivetrain Sram XX Eagle AXS, 12s, cassette 10-52T
    Motor Bosch Performance Line SX GEN4 SMART SYSTEM
    Battery Bosch Compact Powertube 400Wh
    Weight 19.6 kg (without pedals)
