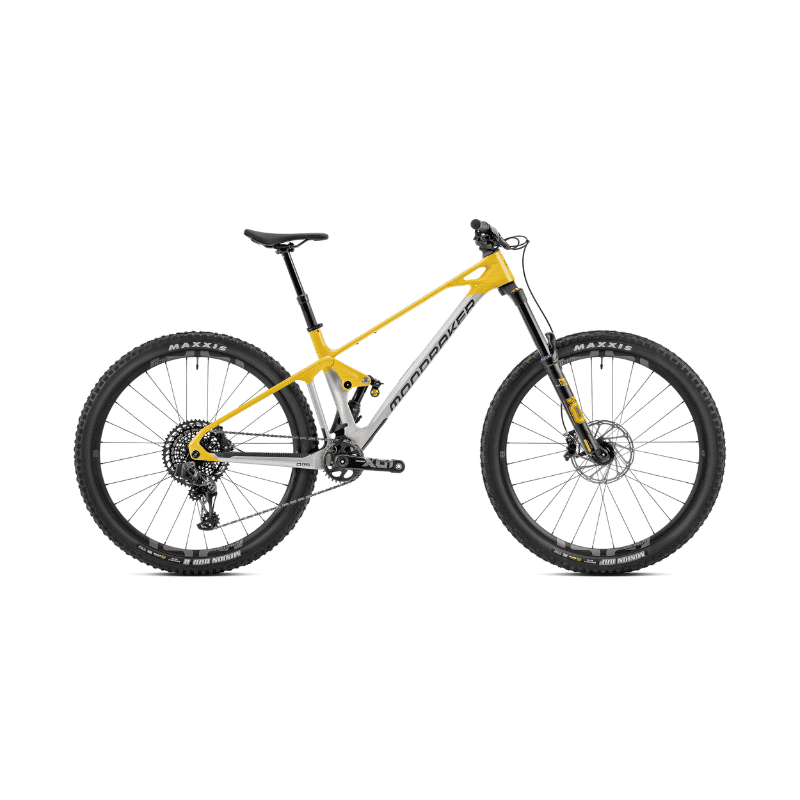

MONDRAKER FOXY CARBON XR SPE BIKE

• Frame

  Foxy 29 Stealth Air full Carbon, Zero Suspension system, 150 mm travel, Forward Geometry, monoblock upper linkage in carbon, Boost 12x148 mm rear axle, tapered head tube, BSA 73 mm bottom bracket, dedicated 1x drivetrain design, internal HHG cable routing, sealed Enduro MAX bearings, shock fender, ISCG 05, custom frame protections.

• Sizes

  S: 380 mm / M: 420 mm / L: 450 mm / XL: 500 mm

• Shock Absorber

  Öhlins TTX Air 205X65mm. Settings: high-speed compression lever with climbing mode, low-speed compression, rebound, air preload. Trunnion upper mount, 30x8 mm lower bushings.

• Shock Absorber Adjustment

  Compression C10, rebound R35. Flow reducers 16,000 (2xF+1E).

• Fork

  Öhlins RXF 36 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered head tube, Boost 15x110mm axle, 44mm offset. Settings: high-speed compression lever with climbing mode, low-speed compression, rebound, air preload, air ramp. Fork settings: C20 R40.

• Headset

  Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, internal cable routing.

• Stem

  ONOFF Krypton FG 30 mm, CNC, 31.8 mm hole.

• Handlebar

  ONOFF Krypton Carbon 1.0, rise: 25 mm, width: 800 mm, sweep angle: 9°, upsweep angle: 5°, 31.8 mm hole.

• Grips

  ONOFF Desert, 1 lock-on, 135 mm.

• Seatpost

  ONOFF Pija internal telescopic, diameter 31.6 mm, size S: 405x95-125 mm, size M: 458x120-150 mm, size L: 498x140-170 mm, size XL: 498x140-170 mm.

• Saddle

  SDG BEL-AIR 3.0, LPU foam, steel rails.

• Front Brake

  Sram Code RSC, oversized 4-piston caliper, Centerline one-piece 200 mm disc with 6-bolt IS, sintered metal pads with steel backing.

• Rear Brake

  Sram Code RSC, oversized 4-piston caliper, Centerline one-piece 180 mm disc with 6-bolt IS, sintered metal pads with steel backing.

• Brake Levers

  Sram Code RSC, bearing pivot and SwingLink lever, tool-free reach and contact point adjustment.

• Wheels

  Mavic Deemax Pro Sam Hill 29 Boost, 28 mm internal width, UST tubeless, 28 spokes.

• Spokes

  J-bend double butted spokes.

• Front Wheel Axle

  e*thirteen Boost 15x110 mm, triple seal, machined aluminum, 6-bolt IS.

• Rear Wheel Axle

  Mavic freewheel system, 80 engagement points, Boost 12x148 mm, IS 6-bolt, XD freehub.

• Front Tire

  Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, foldable bead.

• Rear Tire

  Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, foldable bead.

• Crankset

  Sram X01 Eagle, Boost, DUB spindle, direct mount chainring, size S/M: 170 mm, size L/XL: 175 mm.

• Chainring

  32T, CNC-machined aluminum, X-SYNC 2.

• Bottom Bracket

  Sram DUB BSA, sealed bearings, 73 mm.

• Chain

  Sram GX Eagle, 12s, Powerlock.

• Rear Derailleur

  Sram X01 Eagle, roller clutch, cage lock, 1x12s, X-Actuation 1:1.

• Shifter

  Sram Eagle AXS Rocker paddle shifter, 12s.

• Cassette

  Sram XG-1295, 10-52T, 12s.

• Derailleur Hanger

  Sram UDH.

• Weight without Pedals

  13.9 kg.
