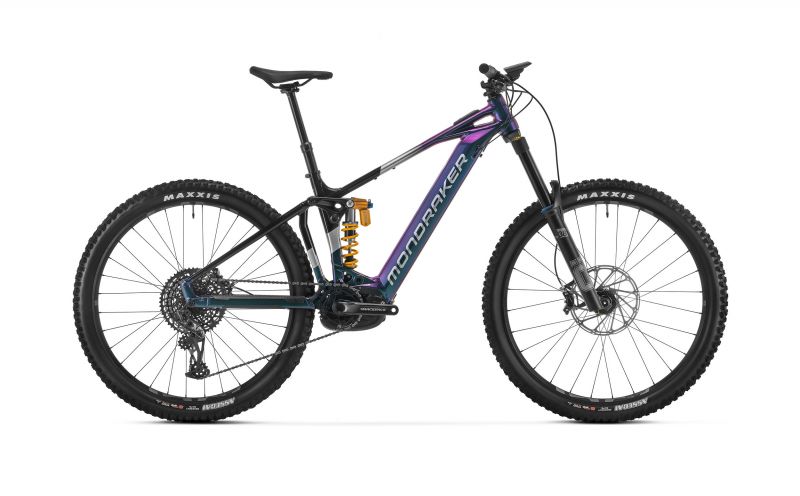

MONDRAKER LEVEL XR 2024 BIKE

The Mondraker Level was born to tackle the most challenging trails you've ever ridden. The most demanding trails with rocks, roots and drops... and then bike parks. This is where you can make the most of its 180 mm of front travel and 170 mm of rear travel.
The bike is fitted with Bosch's Performance Line CX GEN4 BS3 motor, combined with the new wireless Mini Remote and integrated System Controller. All this, together with the 750wh battery, allows the rider to easily climb the climbs, so you can tackle the descents as often as you like.

MONDRAKER LEVEL XR 2024 BIKE MAIN FEATURES:

• 29" wheels.
• 12-speed.
• Bosch motor.750wh battery.
• Front travel: 180mm.
• Rear travel: 170mm.

THE BIKE IS DELIVERED PRE-ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

• Frame: Level Alloy 6061 Stealth Evo, Zero Suspension System optimized for e-Bike, 170 mm travel, Forward Geometry, non-removable internal battery, Boost 12x148 mm rear axle, tapered head tube, one-piece top link, cable management system HHG internal, MAX capacity sealed bearings, 17mm oversized axles, speed sensor integrated into the dropout, exclusive plastic engine covers
• Engine: Bosch Performance Line CX Cruise (25Km/h) GEN4 SMART SYSTEM
• Display: Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller
• Charger: Bosch
• Shock: Öhlins TTX22M.2 225x75mm
• Sprocket: Sram X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12v, X-Actuation 1:1
• Shfter: Sram Trigger GX Eagle, 12v, X-Actuation 1:1, single click
• Cogs: Sram Powerlock
• Chainring: Sram oversized
• Rear brake: Sram Code Silver Stealth, oversized 4-piston caliper
• Rotors: Centerline 220mm IS 6 holes / Centerline 200mm IS 6 holes
• Front tire: Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
• Rear tire: Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
• Rims: e*thirteen E *Spec Plus, IW30 Hookless, 6069 Welded Aluminum 30mm internal width, tubeless ready, 28F / 32R spokes
• Front hub: e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 holes
• Rear hub: e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 holes, 5º upsweep, 31.8mm barb
• Stem: Onoff Krypton FG 30mm, CNC, 31.8mm barb
• Saddle: FIZIK Terra Aidon , 1X remote lever with bearing, size S: 405x95-125 mm, size M: 458x120-150 mm, size L: 498x140-170 mm, size XL: 558x170-200 mm
• Weight: 25.9 kg.

*PRO-M STORE OFFERS FREE BIKE PRE-ASSEMBLY SERVICE: SEATPOST, FORK, REAR DERAILLEUR AND BRAKES ARE ALREADY ASSEMBLED

ITEM NUMBER

010.24466
