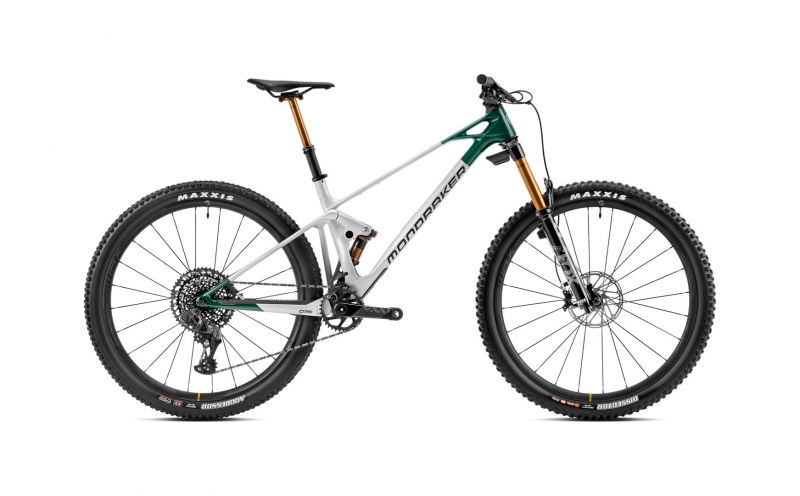

MONDRAKER RAZE CARBON RR SL BIKE

Cod. 05863508

from 7,349.30

10,499.00 € Save on 30 %

Free shipping for orders over 49 € (UE Countries). Free shipping to Extra-Ue countries from 89 €


complete your choice

    MONDRAKER RAZE CARBON RR SL BIKE

    The brand new RAZE CARBON RR SL by Mondraker is the ideal choice for cyclists seeking high-level performance and captivating design. With its lightweight and durable carbon frame, this mountain bike offers a superior riding experience on all terrains, even the most challenging ones. Its Racing Silver S color captures attention and adds a touch of elegance to every adventure on the saddle.

    MONDRAKER RAZE CARBON RR SL BIKE MAIN FEATURES:

    • Lightweight and responsive carbon frame for increased speed and agility.
    • Geometry designed to maximize rider efficiency and comfort.
    • High-quality components for reliable and durable performance.
    • Ideal for tackling the most demanding trails with complete safety and control.

    *THE BIKE IS DELIVERED PRE-ASSEMBLED BY US

    TECHNICAL SPECIFICATIONS

    • FRAME: Raze 29 Stealth Air full Carbon, Zero Suspension System, 130mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors. MIND System (EU only)
    • SIZES: S: 380mm / M: 420mm / L: 450mm / XL: 500mm.
    • REAR SHOCK: Fox Float DPS Factory Kashima EVOL LV, 205x57.5mm. Settings: Compression 3 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings.
    • REAR SHOCK ADJUSTMENT: Light compression, light rebound, air volume spacer 0.6.
    • FORK: Fox 36 29 Float GRIP2 Factory Kashima, 150mm, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload.
    • HEADSET: Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing.
    • STEM: ONOFF Krypton FG 30mm, CNC, 31.8mm barbore.
    • HANDLEBAR: ONOFF Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9° backsweep, 5° upsweep, 31.8mm barbore.
    • GRIPS: ONOFF Desert, 1lock-on, 135mm.
    • SEATPOST: Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 363.5x125mm, M size: 418.3x150mm, L/XL size: 475.1x175mm.
    • SADDLE: Fizik Antares R7.
    • FRONT BRAKE: Sram G2 RSC, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads.
    • REAR BRAKE: Sram G2 RSC, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads.
    • BRAKE LEVERS: Sram G2 RSC, SwingLink, tool-free reach adjust.
    • RIMS: Mavic CrossMax Carbon XL R, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes.
    • SPOKES: 24 straight-pull double butted spokes.
    • FRONT HUB: Infinity hub, Boost 15x110mm, IS 6 bolts.
    • REAR HUB: Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts.
    • FRONT TIRE: Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead.
    • REAR TIRE: Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead.
    • CRANKSET: Sram XX1 Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm.
    • CHAINRING: 32T, CNC-machined alloy, X-SYNC 2.
    • BOTTOM BRACKET: Sram DUB BSA, sealed bearings, 73mm.
    • CHAIN: Sram GX Eagle, 12s, Powerlock.
    • REAR DERAILLEUR: Sram XX1 Eagle AXS, Type 2.1 roller bearing clutch, cage lock, long carbon cage, 1x12s, X-actuation 1:1.
    • SHIFT LEVER: Sram Eagle AXS Rocker paddle, 12s.
    • REAR COGSET: Sram XG-1295, 10-52T, 12s.
    • DERAILLEUR HANGER: Sram UDH.
    • WEIGHT: 13.0 kg.

    *PRO-M STORE OFFERS FREE BIKE PRE-ASSEMBLY SERVICE: SEATPOST, FORK, DERAILLEUR, AND BRAKES ARE ALREADY INSTALLED
